OM1/OM2 Armored Multimode Fiber Patch Cord for Indoor Applications

OM1/OM2 multimode armored fiber patch cords with SC, LC, FC, ST connectors. Durable, flexible jumpers for indoor LAN, telecom, and ODF connections....

Inquiry

Product Attributes

Connector Type:LC/SC/ST/FC/LSH , UPC/UPC
Port Type:Duplex

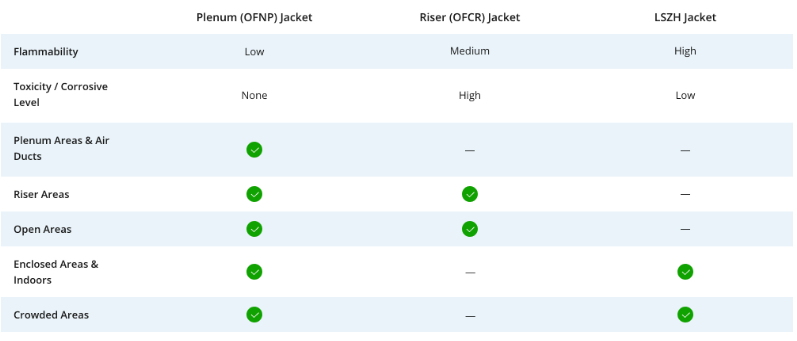

Outer Jacket:Riser (OFCR - Optical Fiber Conductive Riser) / LSZH / Plenum (OFNP)
Fiber Mode:OM1/OM2 Multimode
Product Model:OM1/OM2 Armored

Product Technical Parameters

Specifications
Connector Type	LC/SC/ST/FC/LSH	Polish Type	UPC to UPC
Fiber Mode	OM1/OM2	Wavelength	850/1300nm
Fiber Count	Duplex	Polarity	A (Tx) to B (Rx)
Fiber Grade	G.651 (OM1) / Bend Insensitive (OM2)	Min. Bend Radius	20/10D (Dynamic/Static)
Cable Jacket	Riser (OFCR - Optical Fiber Conductive Riser) / LSZH / Plenum (OFNP)	Tensile Load	120/225N (Long/Short Term)
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Cable Jacket	Riser (OFCR) / LSZH / Plenum (OFNP)	Jacket Color	Gray
Operating Temperature	-25~70°C	Storage Temperature	-25~70°C

Product Description

This OM1/OM2 armored fiber optic patch cord is designed for stable and protected indoor multimode transmission. It features a rugged stainless-steel armored tube that resists crushing and bending while maintaining flexibility. Ideal for LAN, ODF, and telecom equipment connections.

Main Features

• Multimode 62.5/125μm (OM1) or 50/125μm (OM2) fiber options.

• Armored stainless steel tube enhances durability and protection.

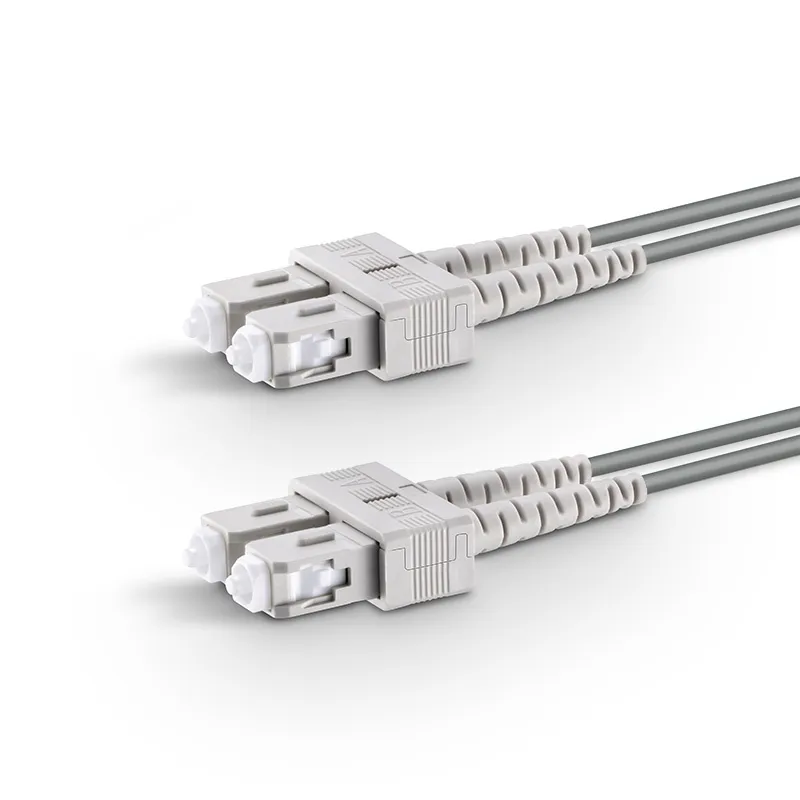

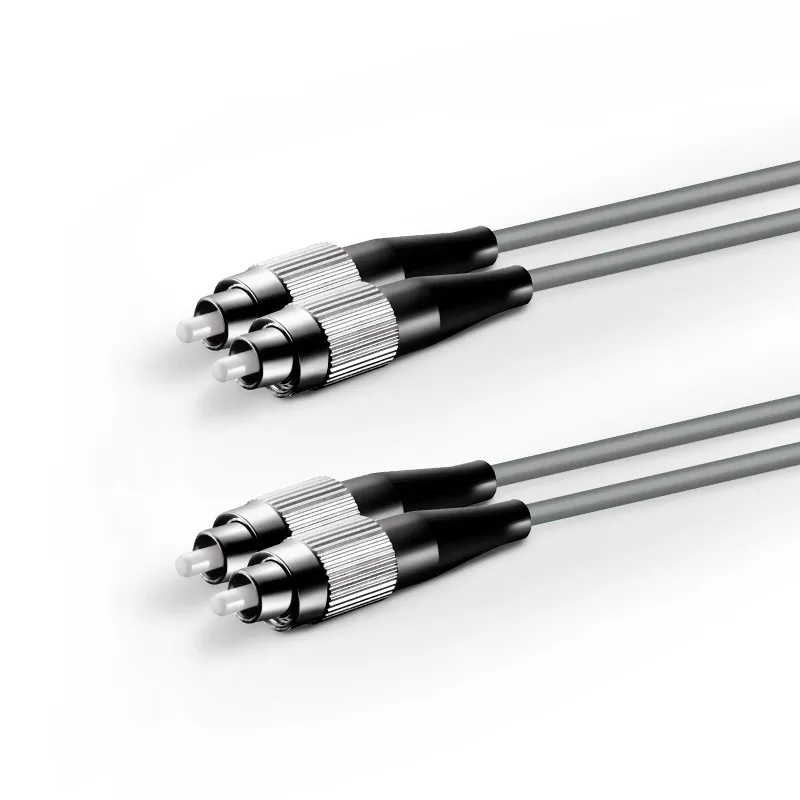

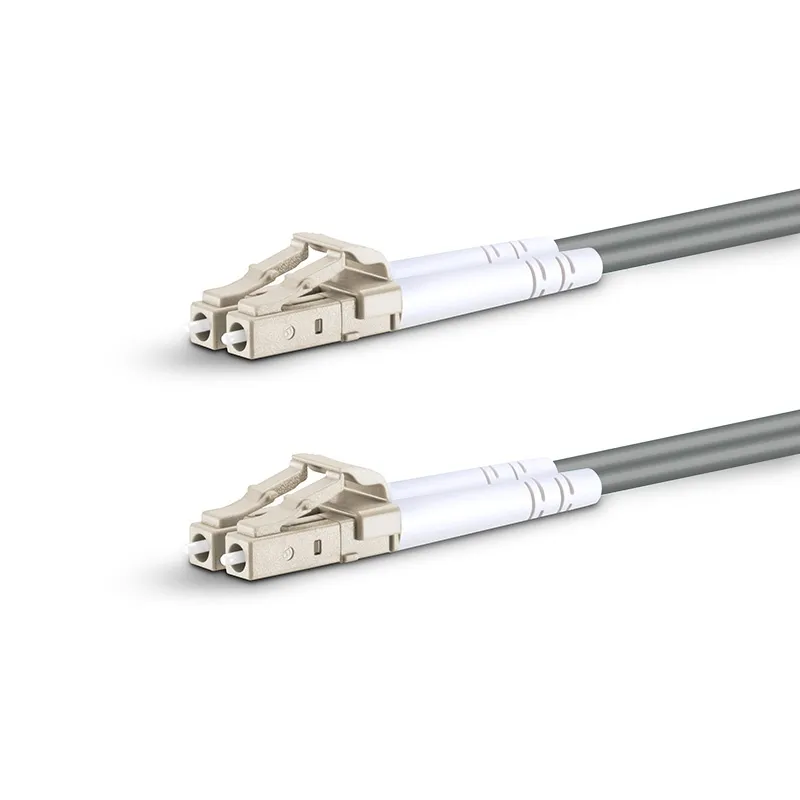

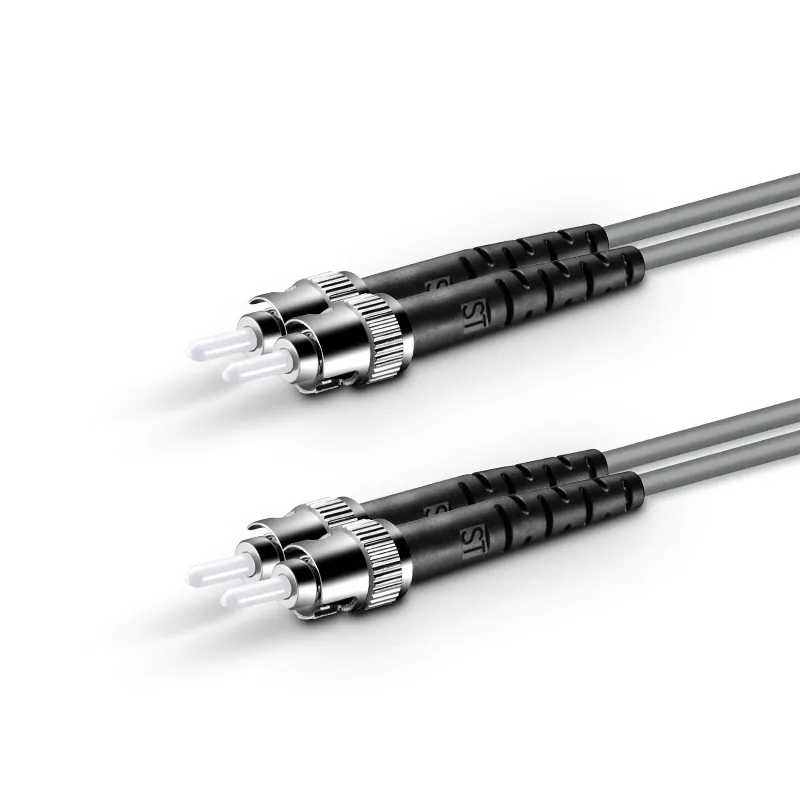

• Available with LC, SC, FC, or ST connectors (UPC polish).

• Low insertion loss and reliable signal performance.

• LSZH jacket ensures flame resistance and safety for indoor use.

Product Specifications

Fiber Types

• OM1 (62.5/125μm) or OM2 (50/125μm) multimode fiber

Connector Options

• LC, SC, ST, FC (UPC polish)

Structure

• Duplex or simplex armored design with flexible steel protection

Jacket Material

• LSZH for indoor flame retardancy

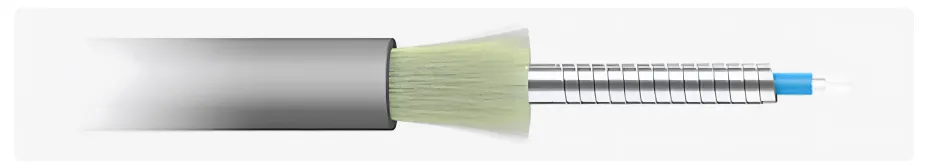

OM1/OM2 Armored Multimode Fiber Patch Cord for Indoor Applications第1张

Applications

• LAN and enterprise network patching

• Telecom rooms and ODFs

• Indoor cabling requiring mechanical protection

• Fiber jumpers between switches, routers, and panels

OM1/OM2 Armored Multimode Fiber Patch Cord for Indoor Applications第2张

OM1/OM2 Armored Multimode Fiber Patch Cord for Indoor Applications第5张
