GJYXFCH FTTH Drop Fiber Cable with G652/G657 Fiber and FRP or Steel Reinforcement

Durable FTTH drop fiber optic cable with FRP or steel wire strength member, 1/2 core G657A fiber, ideal for telephone, broadband, and last-mile fiber communication....

Inquiry

Product Attributes

Fiber Type:G652/G657
Outer Jacket:LSZH
Fiber Core Count:2-288Cores
Product Model:GJYXFCH

Product Technical Parameters

Product Description

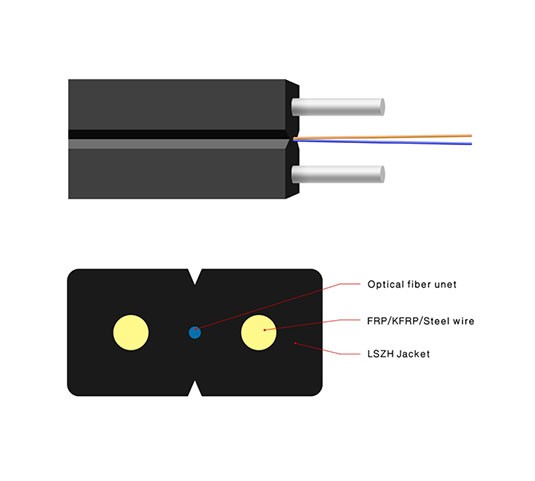

GJYXFCH FTTH Drop Fiber Cable with G652/G657 Fiber and FRP or Steel Reinforcement第1张

The GJYXFCH fiber optic drop cable is designed for FTTH access networks and telephone communication systems. It adopts either FRP or steel wire as the strength member, combined with G657A single-mode fiber, ensuring excellent tensile performance and stable signal transmission.

Main Features

• Reinforced with FRP or galvanized steel wire for high tensile strength.

• Available in 1-core and 2-core configurations with G657A fiber.

• Flame-retardant, waterproof, and UV-resistant outer jacket.

• Lightweight, flexible, and easy to install for drop cabling.

• Low insertion loss and high return loss ensure reliable data transmission.

Structure Details

Fiber Type

• G657A single-mode fiber

Strength Member

• Two parallel FRP rods or steel wires (customizable)

Jacket Material

• LSZH, PVC, or PE for indoor/outdoor environments

Applications

• Fiber-to-the-home (FTTH) access wiring

• Telephone and broadband communication systems

• Last-mile fiber access for residential or office use

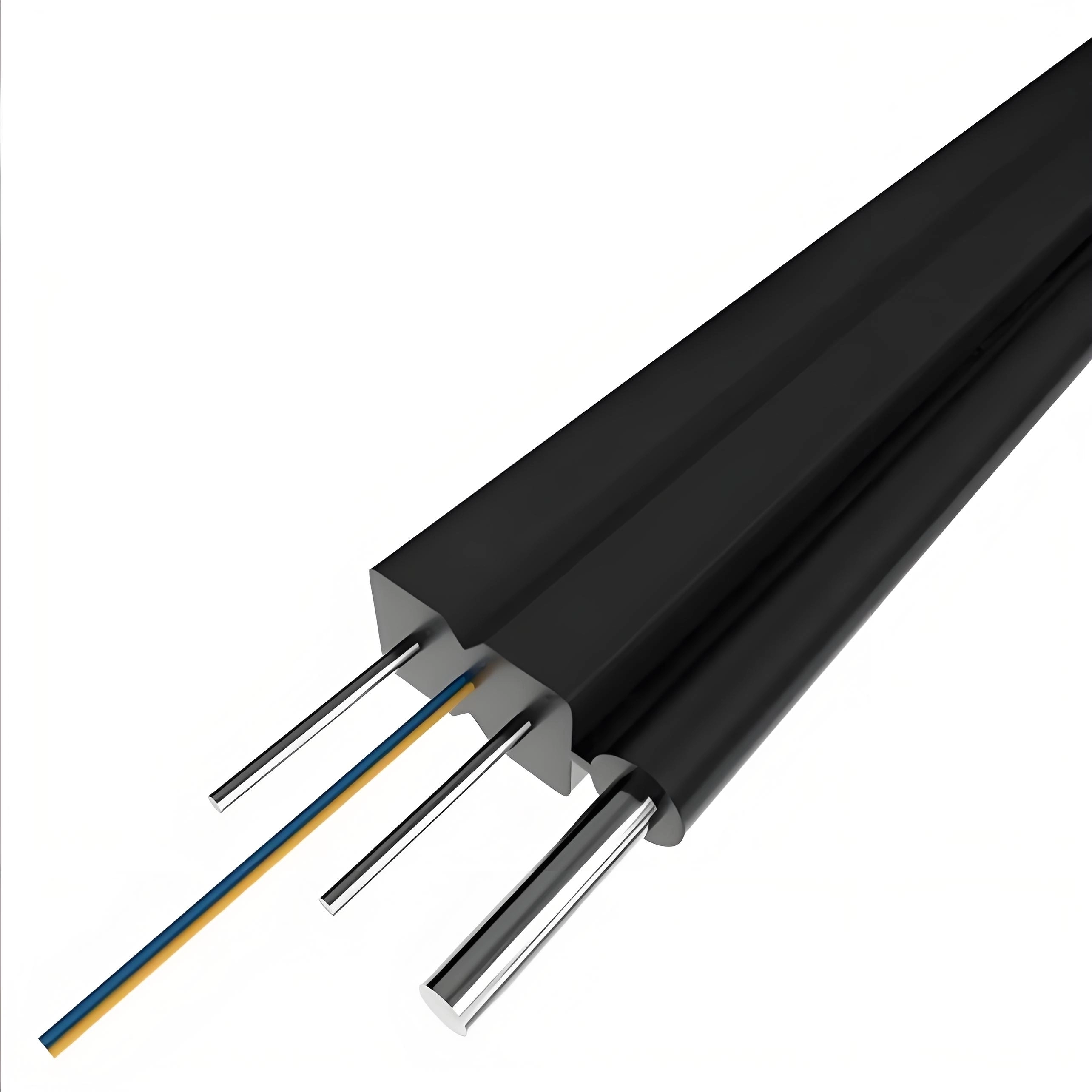

GJYXFCH FTTH Drop Fiber Cable with G652/G657 Fiber and FRP or Steel Reinforcement第2张

Case

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: GJYXFCH, FTTH Drop Cable, G652, G657

No more

GJXH Bow-Type FTTH Drop Cable with 1 or 2 Core G652D/G657A s

		G.652	G.657	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.40 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30 dB/km
Bandwidth(Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth(Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1260nm

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile StrengthLong /Short Term (N)	Crush ResistanceLong /Short Term (N/100mm)	Bending RadiusStatic /Dynamic (mm)
1	(2.0±0.) × (5.0±0.2)	20	300 / 600	1000 / 2200	20 / 40
2	(2.0±0.2) × (5.0±0.2)	20	300 / 600	1000 / 2200	20 / 40
4	(2.0±0.2) × (5.0±0.2)	20	300 / 600	1000 / 2200	20 / 40
6	(2.5±0.2) × (6.0±0.2)	24	300 / 600	1000 / 2200	20 / 40
8	(2.5±0.2) × (6.0±0.2)	24	300 / 600	1000 / 2200	20 / 40
12	(2.0±0.) × (5.0±0.2)	20	300 / 600	1000 / 2200	20 / 40

Quantity (KM)	Estimated Delivery Time
1–300	Approx. 15 days
≥300	Delivery time to be negotiated
