Product Technical Parameters
| Category | Specification |
|---|
| Item | HSGQ-G02 |

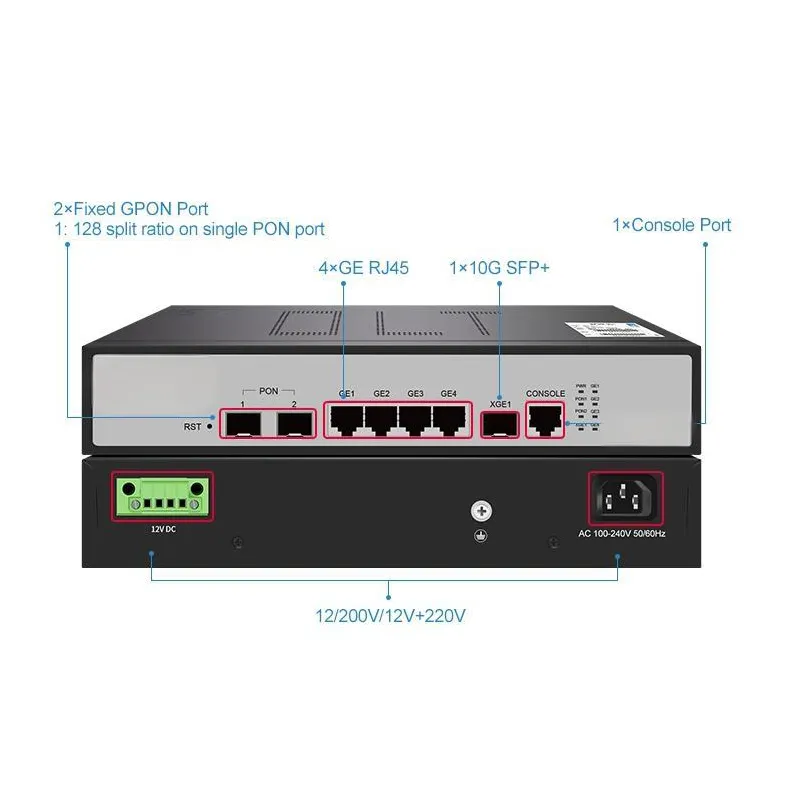

| Interface | 2 * GPON |
| Interface | 4*GE RJ45 |
| Interface | 1*10G SFP+ |
| PON | ITU.T G.984.x / G.988; |
| PON | Password authentication modes |
| PON | Terminal access up to 60km on a single fiber |
| PON | 1: 128 split ratio on single PON port |
| PON | DBA algorithm, and the particle is for 64Kbit/s |
| PON | Standard OMCI management function |
| PON | ONU batch software upgrade |
| PON | PON port optical parameter detection |
| PON | Auto registration ONU bound with default profile |
| Flash | 128MB |
| GDR | 512M |
| Size | 250mm x 180mm x 44mm |
| Weight | ＜5kg |
| Management Ports | Console port |
| Environment | Operating temperature:-10°C~55°C |
| Environment | Storage temperature: -40°C~70°C |
| Environment | Storage humidity: 5%~95% (non-condensing) |
| Power Supply | DC 12V |
| Redundancy Design | Dual power supply can be choose |
| Redundancy Design | Support AC+DC input |
| Power Consumption | ＜10W |
| Platform Management Features | Device list |
| Platform Management Features | Project management |
| Platform Management Features | Version release |
| Platform Management Features | Lisense management |
| Platform Management Features | Permission management |
| Platform Management Features | User management |
| Configuration and Management | CLI, WEB, SNMP, NMS and CLOUD |
| Configuration and Management | Software and bootrom upgrade by TFTP and FTP |
| Configuration and Management | Chinese/ English command prompt |
| Configuration and Management | Ping and Debug diagnosis |
| Configuration and Management | User/Log/Alarm management |
| Status | PON Status |
| Status | Uplink Status |
| Status | Performance Monitor |
| Status | System Monitor |
| L2 Function | Support VLAN |
| L2 Function | Support port mirror |
| L2 Function | Support storm control |
| L2 Function | Support IGMP snooping/proxy |
| L2 Function | Support MAC black Hole |
| L2 Function | Support port isolation |
| L2 Function | Encrytion of PON port transmitting data |
Product Description

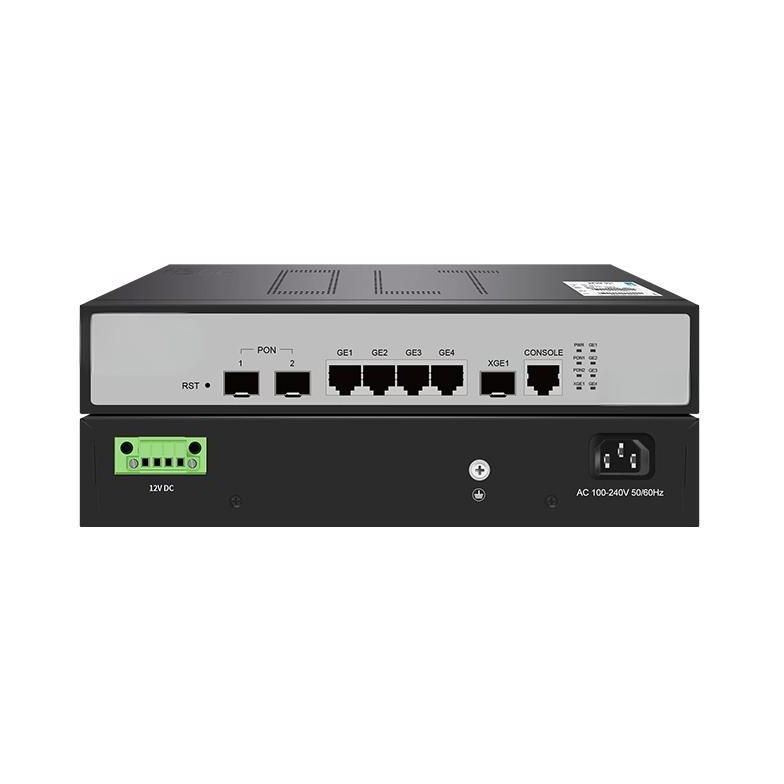

Dual GPON Ports for High‑Density FTTH Access
This 2‑port GPON OLT is designed for high-capacity fiber-to-the-home (FTTH) deployments. It features two GPON interfaces, each delivering 2.488 Gbps downstream and 1.244 Gbps upstream, supporting up to 128 ONUs per port with up to 20 km reach.
Flexible Uplink and System Performance
Equipped with multiple uplink options such as GE (RJ45), SFP, and SFP+ (10 GE), this device offers flexible integration with core networks. It also delivers robust switching performance with high backplane capacity.
Standards Compliance and Management Versatility
Designed to ITU‑T G.984/G.988 GPON standards, this OLT ensures seamless interoperability and quality of service. Management interfaces include Web GUI, CLI, SNMP, Telnet, and OMCI for full remote ONU control.

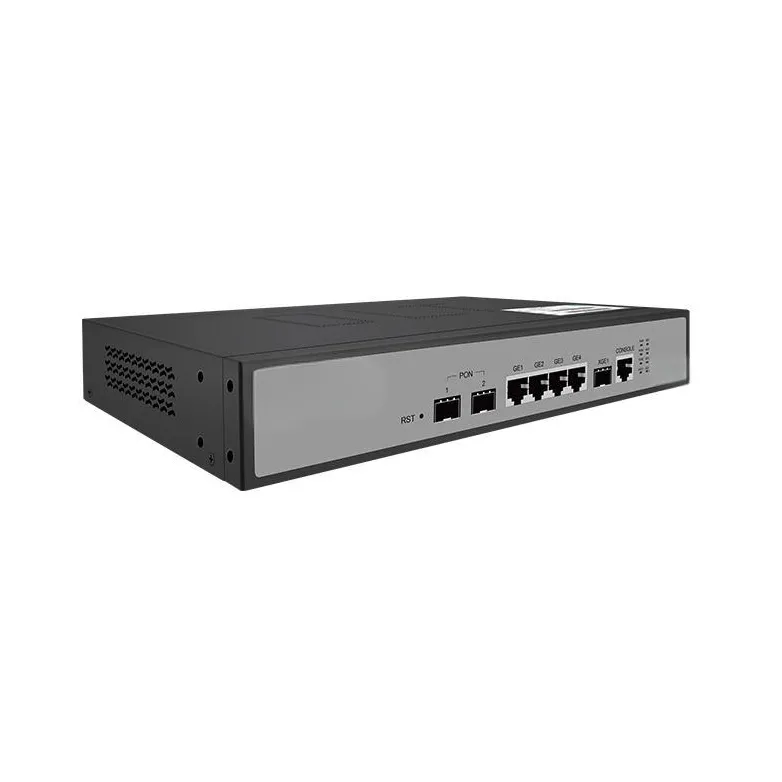

Compact, Efficient, and Reliable Design
Its compact 1U rack form factor makes it ideal for space-limited deployment scenarios. With low power consumption and optional dual power supplies, it ensures efficiency and reliability for enterprise and ISP access networks.
Case
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
+
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
+
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
+
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
+
Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop
FAQ: Frequently Asked Questions
How many ONUs can this OLT support?
Each GPON port supports up to 128 ONUs, for a total capacity of up to 256 ONUs across both ports.
What uplink options are available?
Supports GE (RJ45), SFP (1 G), and SFP+ (10 GE) uplinks for flexible connectivity to aggregation networks.
Which network management protocols are supported?
Includes Web GUI, CLI, SNMP, Telnet, and OMCI for remote ONU control and configuration.
Is this device standards-compliant?
Yes, compliant with ITU‑T G.984/G.988 GPON standards, ensuring interoperability and service quality.
What environments suit this OLT?
Its compact 1U form, efficient performance, and flexible uplink options make it ideal for FTTH networks in ISP points, enterprise edge, and space-constrained cabinets.
