GYFTA53 Kabel Serat Lapis Baja Semua Dielektrik | Kekuatan Non-Logam | G.652D / G.655 | Pemakaman Langsung Luar Ruangan

Kabel serat optik lapis baja GYFTA53 dengan anggota kekuatan non-logam dan armor pita baja. Mendukung serat G.652D / G.655 untuk penguburan langsung di lingkungan tegangan tinggi atau sensitif EMI. Ideal untuk jaringan u...

Pertanyaan

Atribut Produk

Jenis Serat:G652D / G655
Jaket Luar:PE
Hitungan FiberCoreCount:2-288Warna
Model produk:GYF53

Parameter Teknis Produk

Deskripsi Produk

Deskripsi Produk

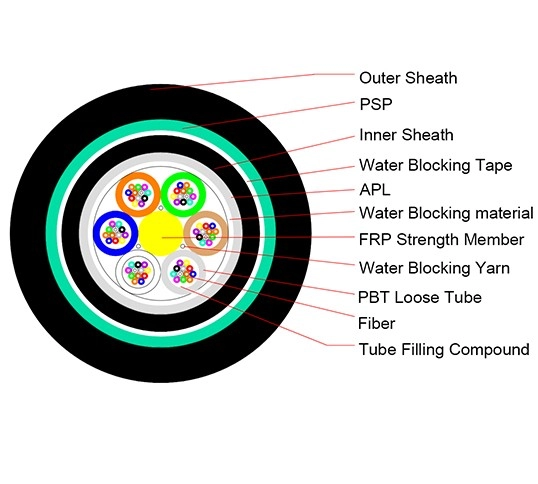

Kabel optik tipe GYFTA53 menempatkan serat optik 250um dalam selongsong longgar yang terbuat dari plastik modulus tinggi, dan selongsong diisi dengan pengisi tahan air. Bagian tengah inti kabel optik adalah tulangan non-logam FRP. Selongsong dan pengisi dipelintir di sekitar tulangan untuk membentuk inti kabel optik melingkar kompak. Inti kabel optik ditutupi dengan APL, inti kabel optik ditutupi dengan selubung bagian dalam PE tipis, dan selubung bagian dalam diisi dengan lem tahan air. Setelah sabuk baja berlapis baja, selubung luar PE ditambahkan untuk membentuk kabel.
Fitur Produk GYFTA53
Sifat mekanik yang baik, ketahanan suhu tinggi yang baik, casing longgar kekuatan tinggi, ketahanan hidrolisis
Pengisi casing khusus memainkan peran kunci dalam melindungi serat optik
Anti-ekstrusi, fleksibilitas yang baik
PSP meningkatkan ketahanan kelembaban
penghalang kelembaban APL
Ketahanan air yang baik
aplikasi:
Pipa, di atas kepala, penguburan langsung.

PersyaratanPackaging:
1: Semua kabel harus dililitkan pada gulungan kayu yang dirawat yang tidak dapat dikembalikan
2: Ujung kabel harus diamankan dengan kuat ke gulungan dan dilindungi dengan waterproof tutup menyusut
3: Setiap gulungan harus mencakup:
Lapisan luar pelindung pembungkus plastik
Memperkuat bilah kayu untuk memastikan stabilitas
Setidaknya 1 meter ujung kabel gratis disediakan untuk pengujian
Panjang gulungan standar 3000mm (dengan toleransi yang diizinkan ± 2%)
Identifikasi Kabel:
Jaket luar harus menampilkan:
1 Penomoran sekuensial unik setiap 1m (± 1% varians diizinkan)
2 Tanda pengulangan tambahan pada interval 1m menunjukkan:
Kode produk dan jumlah serat
Identifikasi produsen
Tanggal produksi (bulan / tahun)
Panjang kabel total

Standard Packaging Dimensions:
Length Container Size (L×W×H) Net Mass Total Mass
2 km Wood spool 90×75×90 cm 156 kg 220 kg
3 km Wood spool 100×68×100 cm 240 kg 280 kg
4 km Wood spool 109×75×109 cm 300 kg 368 kg
5 km Wood spool 129×72×129 cm 400 kg 480 kg

Technical Reference:
1、 Standard cable diameter: 10.0mm
2、Maximum span distance: 100m
3、Contact sales team for complete technical specifications

Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
1、 Company name and trademark
2、Contained cable length
3、Cable specifications (type/fiber count)
4、Winding orientation
5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.

Case

Studi Kasus Proyek Komunikasi Koridor Daya Angola | Pasokan OPGW sebagai Backbone + Dukungan Portofolio Kabel Serat Optik Luar Ruangan
+

Turki: Modernisasi Jaringan Serat Metropolitan YRTFiber di Turki
+

Indonesia: Peningkatan Jaringan Area Metropolitan YRTFiber di Indonesia
+

Zambia: Pasokan Kabel Serat Optik Luar Ruangan Berkinerja Tinggi oleh yrtfiber
+

OVERVIEW Download

MENGERIKAN memiliki total 13 jalur produksi, bengkel bebas debu modern, dan peralatan pemrosesan berkinerja tinggi. Dari pengadaan bahan mentah, hingga pemrosesan produk jadi, hingga pengujian kualitas produk, hingga pengemasan dan ekspor, kami memiliki berbagai lini produksi. Berikut ini adalah beberapa foto bengkel yang sebenarnya

1. Apa keuntungan inti dari GYFTA53 dibandingkan dengan GYTS atau GYTA?
GYFTA53 memiliki non-metallic anggota kekuatan (seperti FRP atau benang aramid) sementara masih menyediakan baja tape armor. Ini menawarkan isolasi electrical , membuatnya ideal untuk zona high-voltage atau lingkungan EMI-rawan, di mana kabel logam tradisional mungkin tidak aman.

2. Apakah kabel ini cocok untuk penguburan langsung?
Ya. GYFTA53 dirancang untuk pemakaman langsung dan lingkungan luar yang keras. jaket PE ganda, corrugated pelindung pita baja, dan desain water-blocking memastikan daya tahan jangka panjang di bawah tanah.

3. Dapatkah kabel ini digunakan di dekat kabel listrik atau gardu induk?
Tentu saja. Intinya all-dielectric memastikan konduktivitas no, sementara zirah baja luar nya memberikan perlindungan mekanis. Ini membuat GYFTA53 sempurna untuk jaringan utilitas daya , substations, dan electrically daerah yang bising.

4. Jumlah dan jenis serat apa yang didukung?
GYFTA53 mendukung G.652D dan G.655 serat mode tunggal, dalam konfigurasi dari 2 hingga 144 inti, sehingga cocok untuk jaringan tulang punggung, akses, atau FTTx.

5. Apakah kabel ini tahan api atau tahan hewan pengerat?
Selubung luar dapat customized dengan bahan tahan api, dan corrugated baja tape armor memberikan tingkat yang baik dari ketahanan hewan pengerat. Untuk meningkatkan kinerja api, pertimbangkan untuk menggabungkan dengan LSZH jaket.
