Product Technical Parameters
| Parameter | Value |
|---|
| Model NO. | GJYWFJH |
| Allowed Tensile Strength | <100N |
| Certification | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material | TPU, LSZH, PVC, Zrpo |
| Spec of Fiber Core | G657A1 or G657A2 |
| Fiber Brand | Yofc / Ofs / Corning |
| Transport Package | Drum |
| Origin | Shenzhen, China |
| Material Shape | Round Wire |
| Core | Double Core |
| Brand | OEM |
| Capacity | 1 Core / 2 Core / 4 Core |
| Storage Temperature | -20 to +60℃ |
| Packing | Wooden Drum |
| Trademark | FiberMania |
| Production Capacity | 10000km/Week |
Specification
| Cable Type | Diameter (mm) | Weight (kg/km) | Tensile Strength
(Long/Short, N) | Crush Resistance
(Long/Short, N/100mm) | Bending Radius
(Dynamic/Static, mm) | Storage Temperature (ºC) |
|---|
| GJYWFJH 2-4 | 5 | 30 | 100/300 | 300/1000 | 20D/10D | -40~+70 |
| GJYWFJH 6-12 | 6 | 50 | 100/300 | 300/1000 | 20D/10D | -40~+70 |
Product Description
product description:

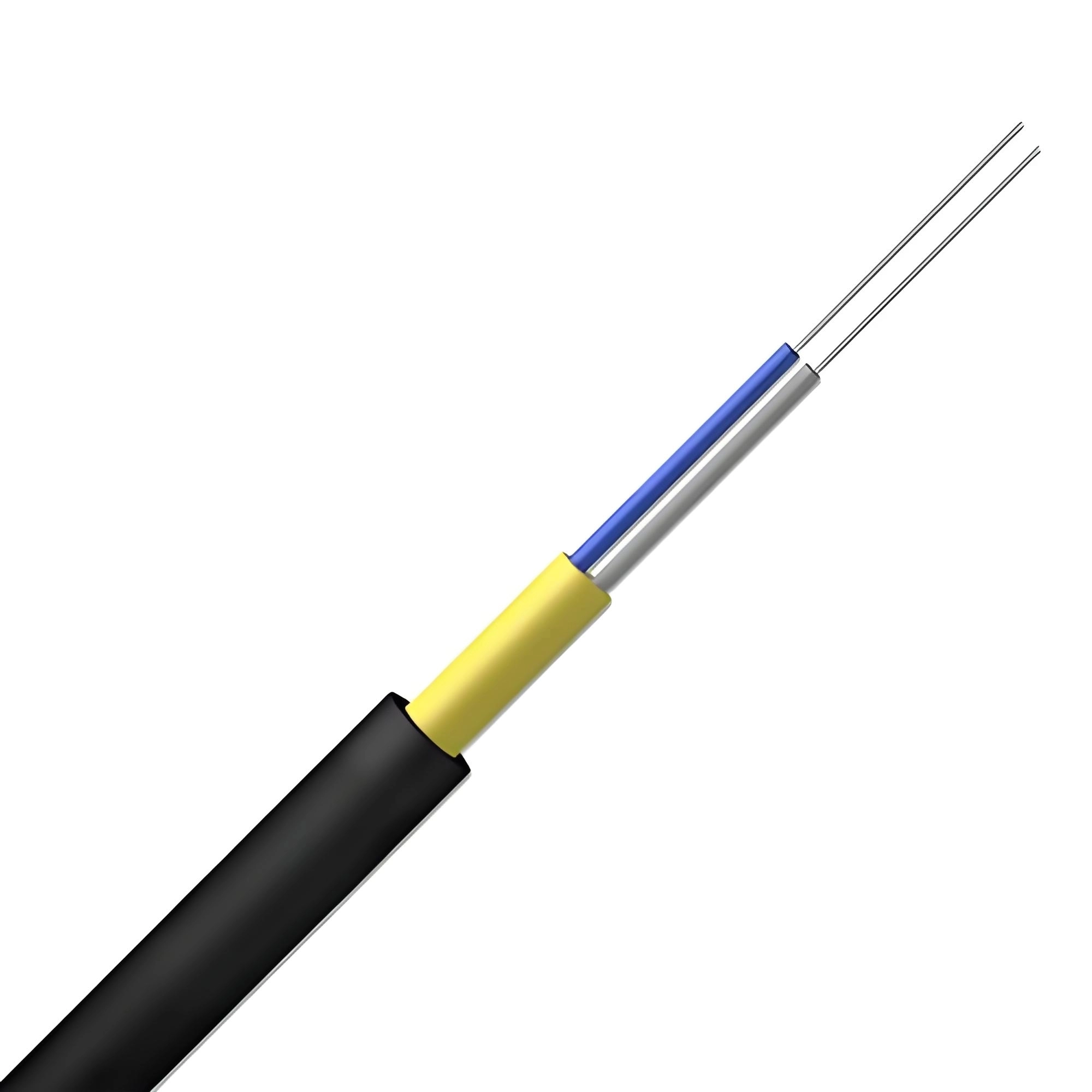

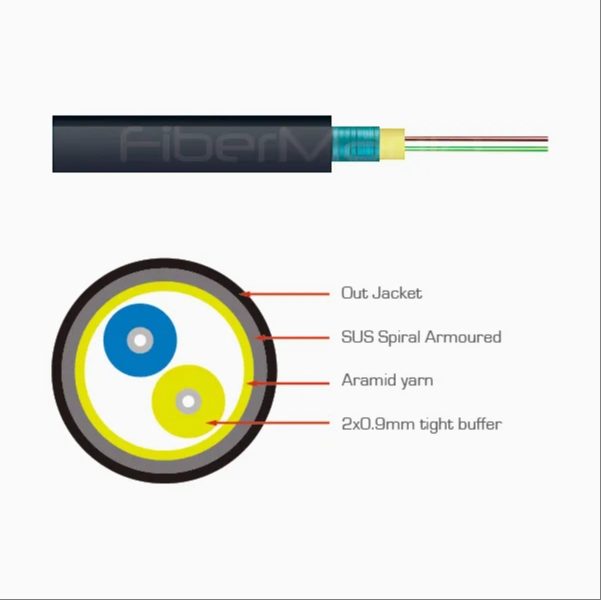

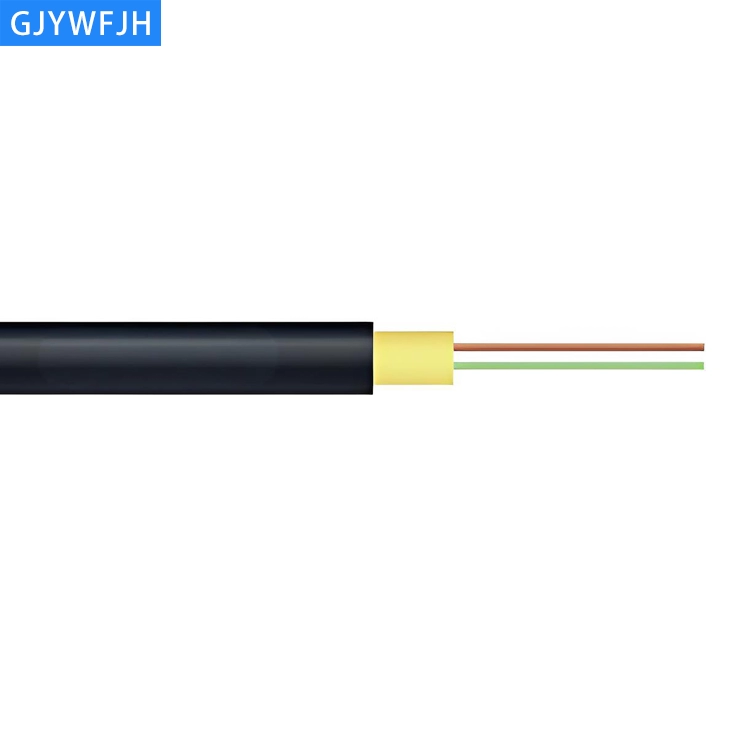

GJYWFJH indoor/outdoor cable is a medium for optical transmission, using a 900um cable structure. It is designed to wrap a layer of aramid yarn in a tight fiber layer to enhance mechanical strength, and different materials (such as PVC, LSZH, TPU, PE, etc.) are selected as outer jackets according to customer needs to ensure the durability and adaptability of the cable.
product features:
- It has excellent mechanical properties and temperature adaptability.
- It has good resistance to side pressure and flexibility, making it easy to install and wire.
- Small in diameter, light in weight, easy to connect, and supports high-capacity data transmission.
- The outer sheath material is waterproof, flame retardant and environmentally friendly, making it suitable for a variety of environments.
-
application scenarios:
- It is suitable for remote base station communication, such as RRU (Radio Frequency Remote Unit) or BBU (Baseband Processing Unit).
- For outdoor applications in smart substations and CATV (cable television).
- It is suitable for emergency optical fiber communication access scenarios.
- It is widely used in FTTX (Fiber to the Home/Building/Node) networks, including horizontal or vertical cabling from residential to data centers, as well as in FTTH (Fiber to the Home) scenarios.
Packaging Details
Each roll contains 1–5 KM of cable, typically packed in steel drums. Customized packaging solutions are available upon client request.
Sheath Marking
White hot foil indentation is applied at 1-meter intervals with the following information:
a. Supplier name: Guanglian (or as specified by the customer)
b. Standard code including product type, fiber type, and fiber count
c. Year of manufacture (valid for 7 years)
d. Length indication in meters
Port of Shipment
Available ports: Qingdao, Guangzhou, Shenzhen
Estimated Lead Time
| Quantity (KM) | Estimated Delivery Time |
|---|
| 1–300 | Approx. 15 days |
| ≥300 | Delivery time to be negotiated |
Note
The packaging details above are for reference only. Final packing size and weight will be confirmed before shipment.
Case
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
+
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
+
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
+
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
+
Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop
