1x16 PLC Fiber Splitter in ABS Enclosure, Singlemode 2.0mm SC/APC Pigtail Module，optical wire splitter

1x16 PLC Fiber Splitter in ABS Enclosure, SC/APC Pigtails - Technical Specifications

Specifications

Product Overview

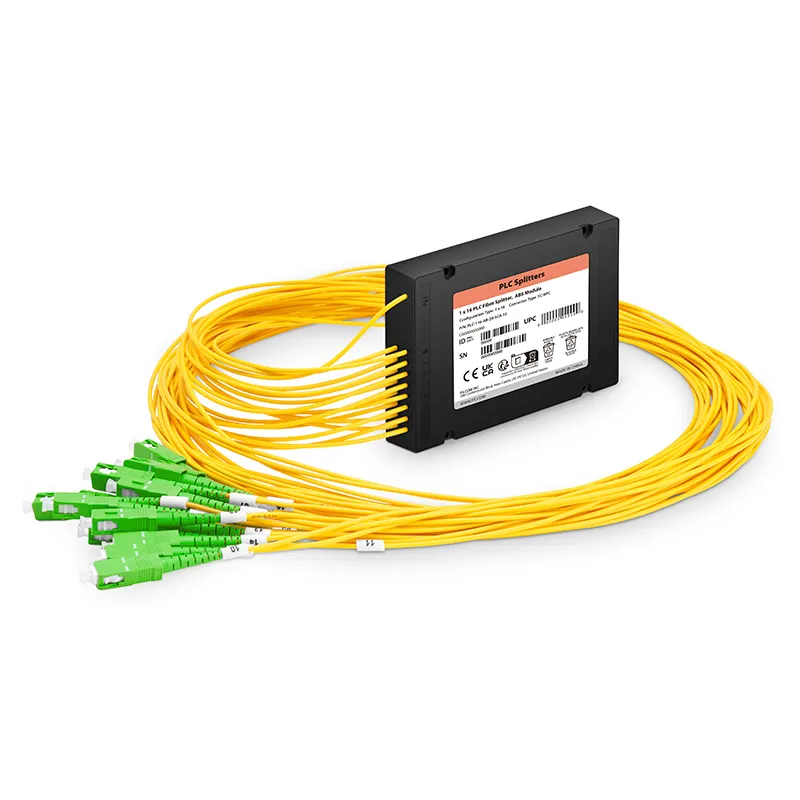

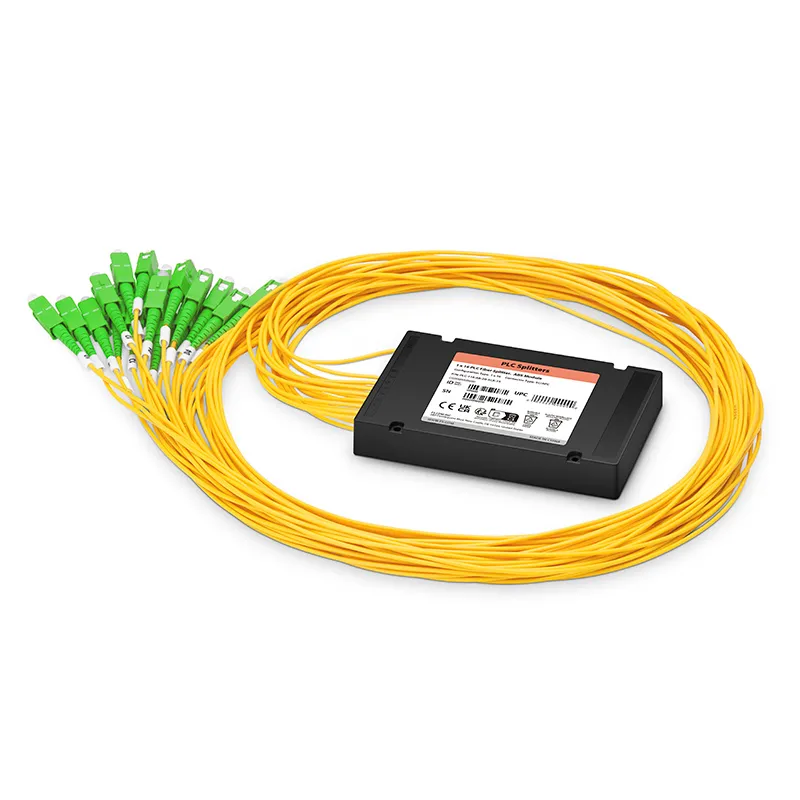

The 1x16 PLC fiber splitter is a high-efficiency passive optical device based on PLC technology. It evenly divides one optical input into 16 outputs. Featuring a compact ABS enclosure and 2.0mm pigtails with SC/APC connectors, it is ideal for use in FTTH, data centers, and surveillance networks.

Key Features

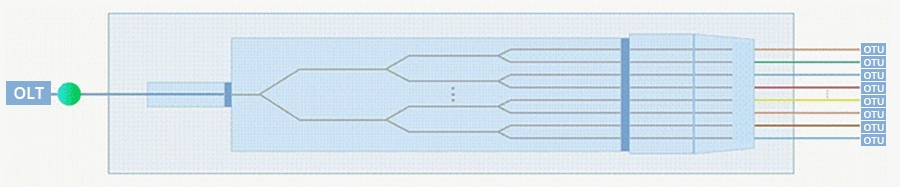

• PLC Splitting Technology: 1:16 uniform split, low insertion loss ≤ 3.5dB max per output.
• High Return Loss: SC/APC connectors with ≥ 60dB return loss to reduce back reflection.

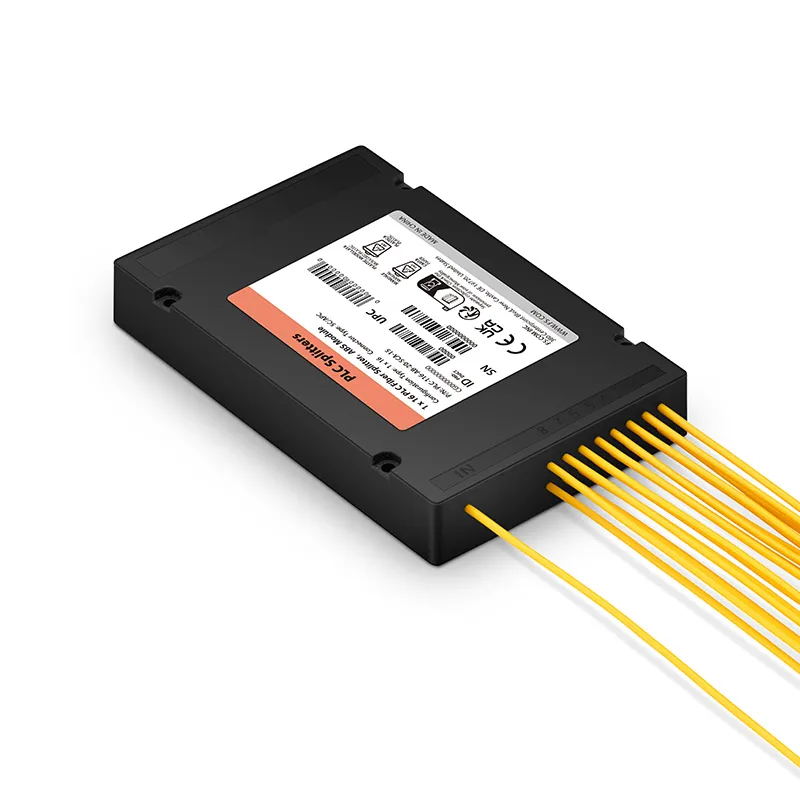

• ABS Enclosure: Compact and IP65-rated for dust and moisture resistance.
• Wall or Rack Mountable: Pre-drilled holes for flexible installation.
• 2.0mm Ultra-Slim Pigtails: Bend-insensitive G.657A2 fiber for tight-space routing.

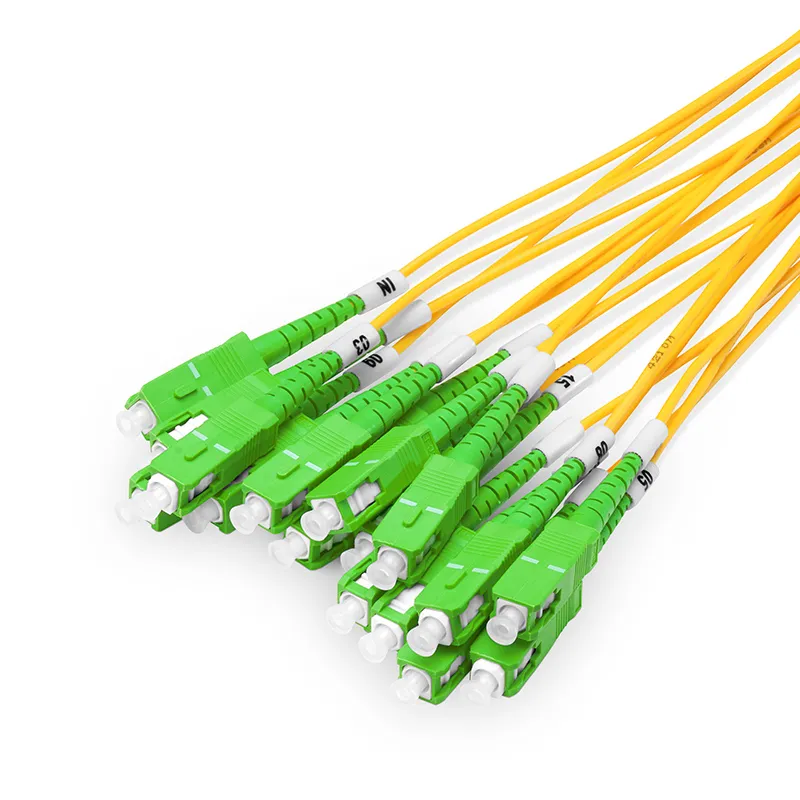

• SC/APC Interface: Durable green-coded angled connectors.
• Singlemode Compatibility: Supports 1260–1650nm, optimized for 1310/1550nm.

Typical Applications

• FTTH/FTTx Networks: Branch from one OLT port to 16 subscribers.
• Data Centers: Efficient signal splitting in dense racks.
• Surveillance Systems: Distribute feeds to multiple cameras.
• PON Deployments: Extend signals to multiple ONUs in GPON/EPON.

Competitive Advantages

• High-Density Output: 16-way split reduces cascading complexity.
• Cost-Effective: PLC chip reduces output cost versus fused biconic solutions.
• Reliable Design: ABS case and bend-tolerant fiber ensure stable performance.
