1x2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm Cable Diameter, SC/APC Connectors, Singlemode Fiber

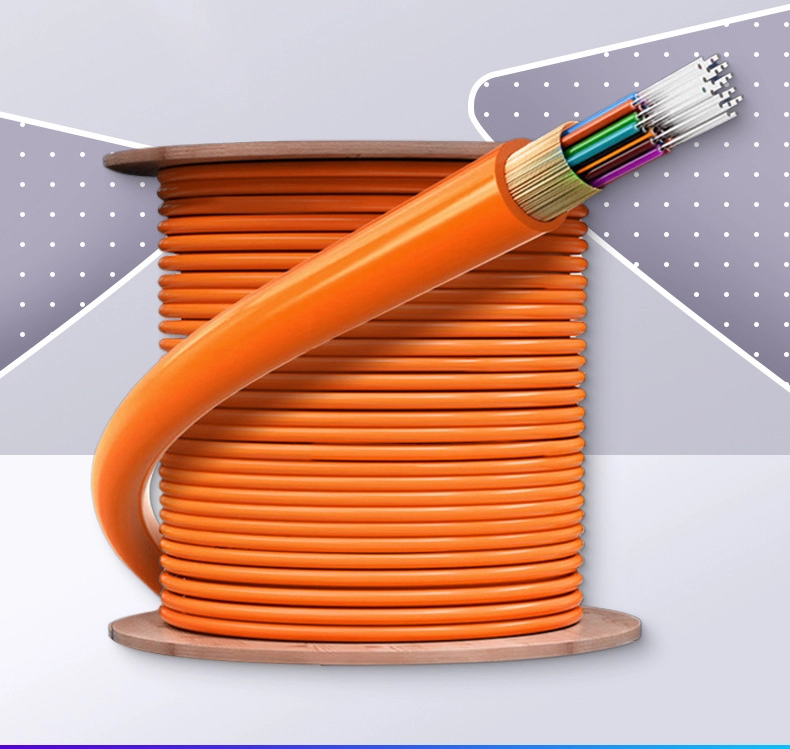

Indoor Breakout Fiber Optic Cable - GJBFJH

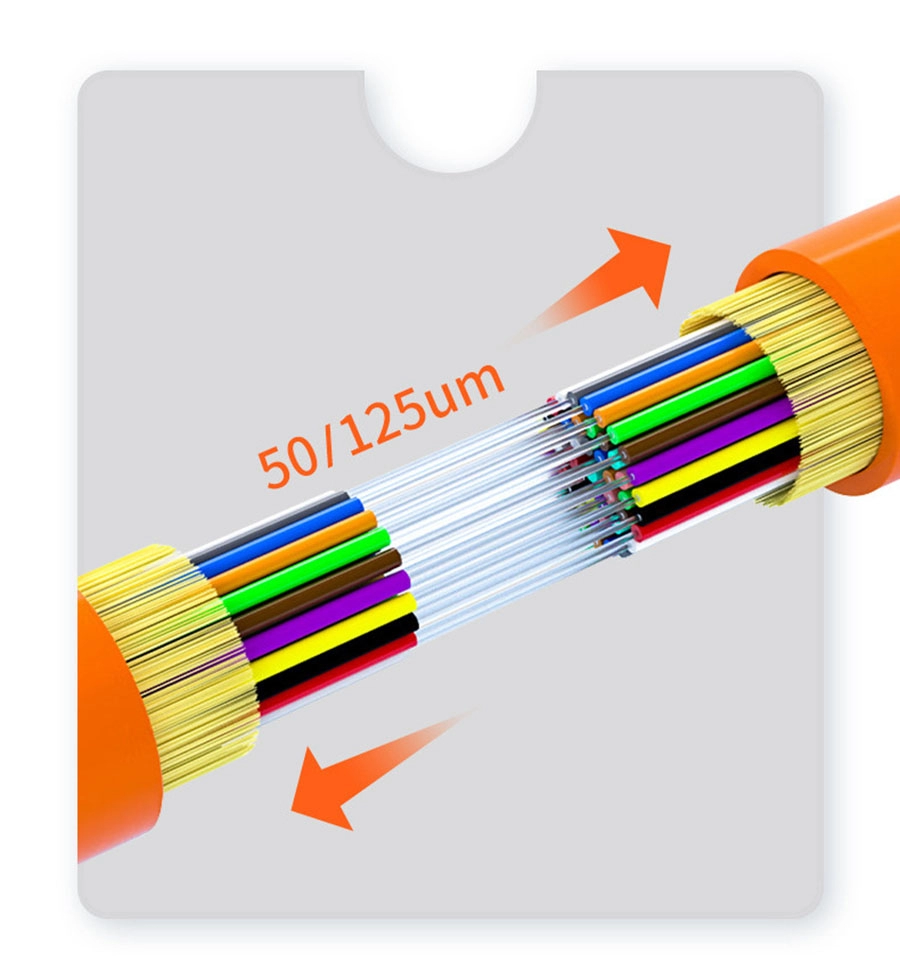

Structure: GJBFJH consists of φ900μm tight-buffered optical fiber, aramid yarn reinforcement, and a non-metallic central strength member. The outer sheath is made from PVC or LSZH material.

Product Features

• Tight-buffered fiber allows easy stripping and termination.
• Excellent flame retardancy.
• Aramid yarn ensures high tensile strength and durability.
• Resistant to corrosion, UV, and environmentally friendly.
• Layered cable design with non-metallic strength member resists pulling forces.
• Supports easy branching for flexible installations.

Purpose

• Ideal for indoor structured cabling systems.
• Used for trunk cabling in buildings.

Sheath Color: Typically yellow, orange, or aqua green; customizable on request.

Compliance

Compliant with YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-10/11 standards. Available in UL OFNR/OFNP and LSZH versions meeting IEC60332-1/3C or OFNR fire ratings.

Technical Specifications

1X2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module

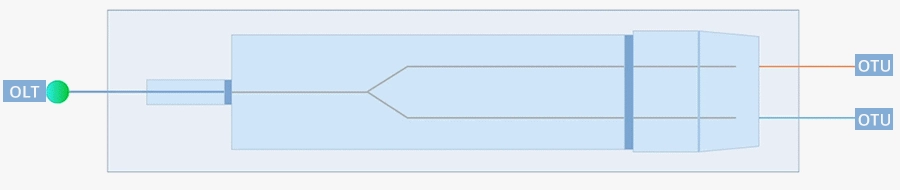

Overview: The 1x2 PLC fiber splitter is a compact passive device using planar lightwave circuit technology to evenly split a signal into two. Designed with a 2.0mm ABS module and SC/APC connectors, it’s ideal for FTTH, LAN, and equipment backup use.

Core Features

• PLC Spectroscopy: 1:2 output ratio, balanced power, diff < 0.1dB.
• Low Insertion Loss: ≤ 0.5dB (max ≤ 0.8dB).
• High Return Loss: APC polished connectors ≥ 60dB.
• Flexible Deployment: Splice or pre-terminated pigtailed installation.
• Durable Shell: ABS material, indoor/outdoor adaptable.
• 2.0mm Cable: Supports compact routing, small bend radius ≥ 15mm.
• SC/APC Connectors: >1000 reuse, green IEC visual coding.
• Single-mode Optimization: 9μm core, supports 1310/1550nm, >20km distance.

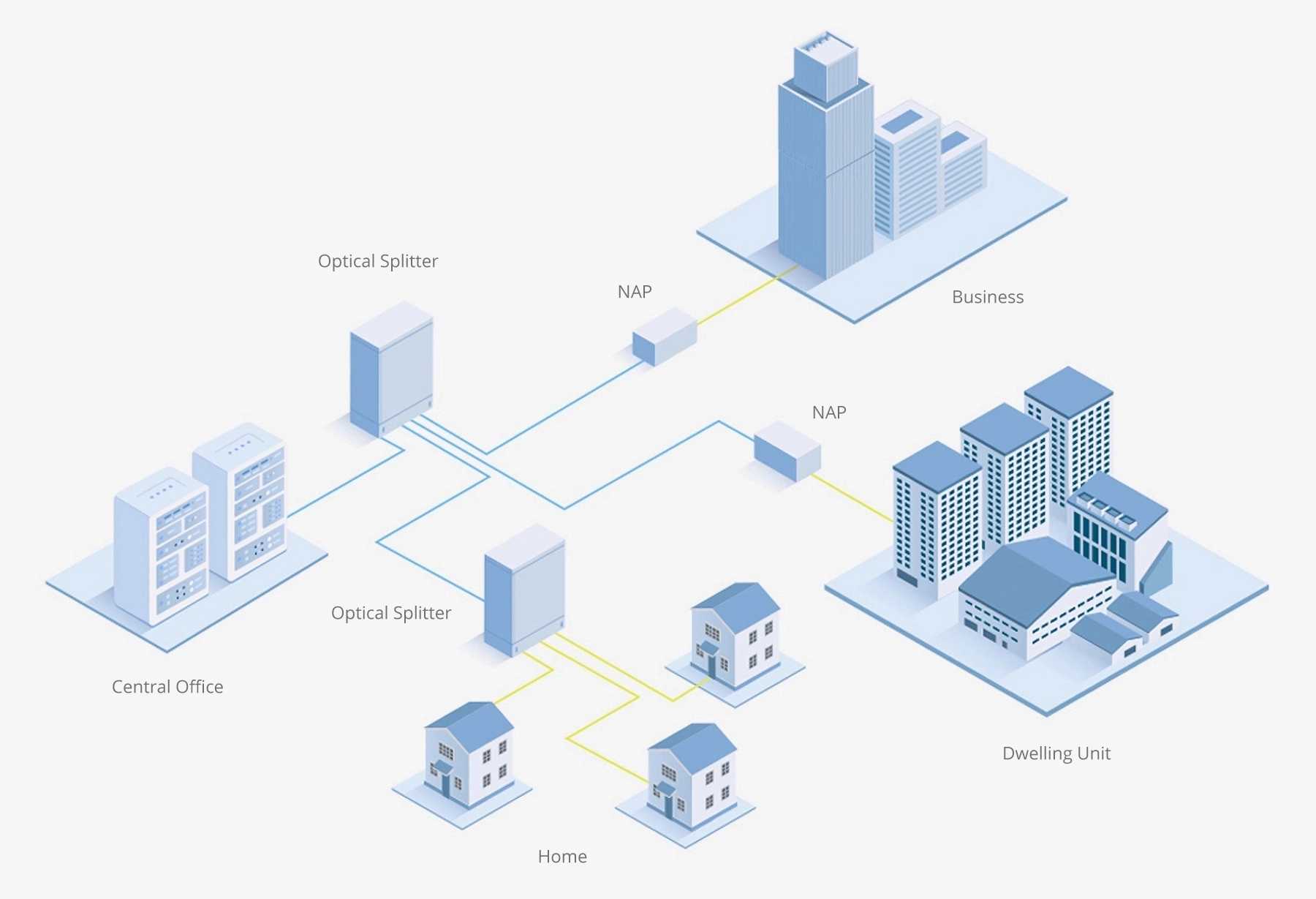

Application Scenarios

• FTTH: Splits signal for dual end-user access.
• LAN: Extends two-switch connectivity in small networks.
• Redundant Backup: Ensures dual-channel input for reliability.
• Security Monitoring: Shares one signal with multiple cameras.

Advantages

• Flexible Installation: Adaptable to both weld and pigtail types.
• Compact Design: 2.0mm + ABS enables tight space routing.
• Cost-Efficient: Simplifies network layout and reduces labor.

Quality Certifications

All components comply with industry standards and certifications for optical communication equipment.
