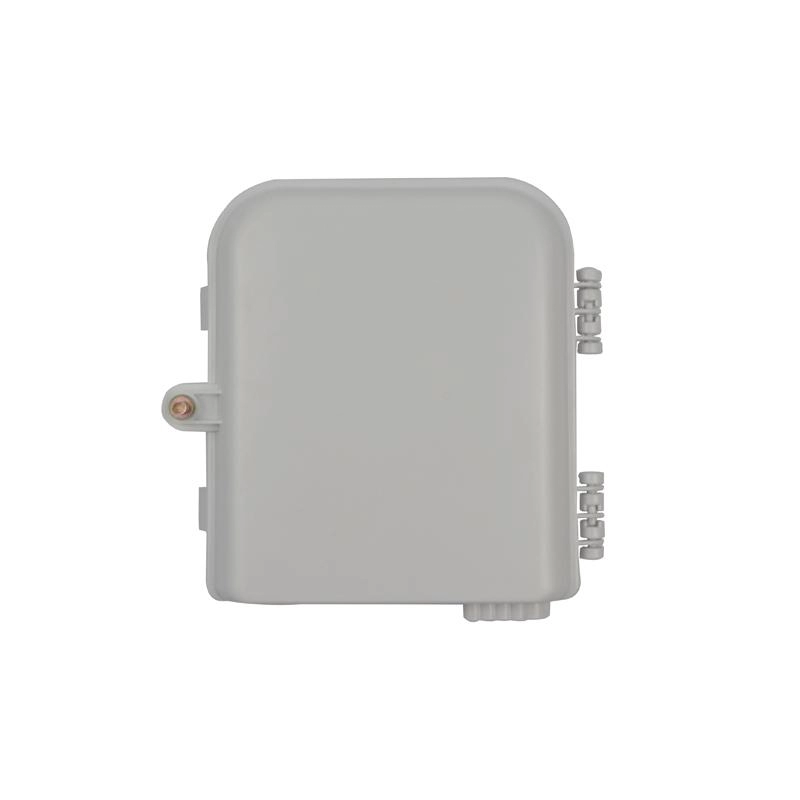

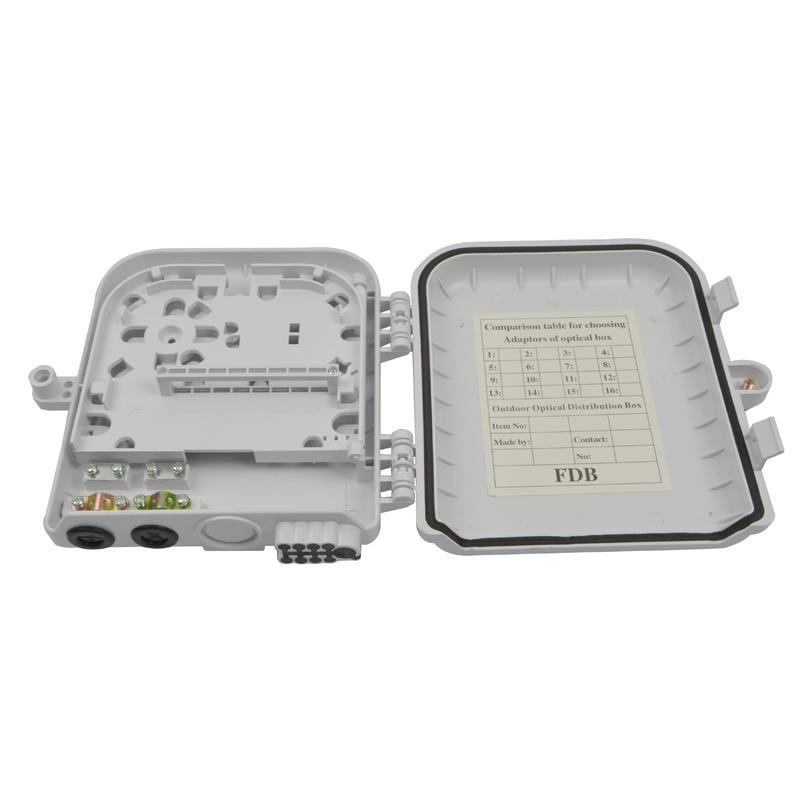

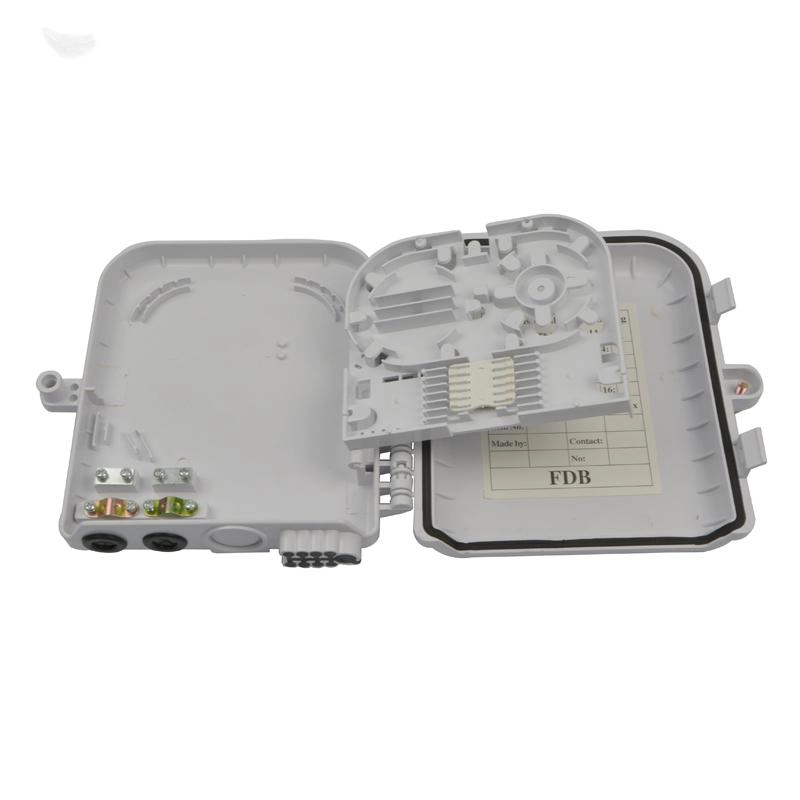

8 Ports optical network terminal box 8-core split fiber (white with black circle)

8 Ports Terminal Box 8-core split fiber (white with black circle)

One.8 Ports Terminal Box Product Definition and Core Functions

8 Ports Terminal Box Is a kind of compact network or communication interface device used to centrally connect and manage cables (copper cables/fiber optic cables). Its core functions include:

cable termination: Provides 8 independent ports to support copper (e.g. RJ45) or fiber (e.g. SC/LC) access.

signal distributionDistribution of input signals to multiple devices, or aggregation of output signals from multiple devices.

Protection and managementEnhance the reliability and maintenance efficiency of cable connections through shielding, fixing, and marking functions.

II.8 Ports Terminal Box Main Technical Features

1. Physical structure and materials

port type:

Copper cable port: 8×RJ45 (supports Cat5e/Cat6/Cat6A), optional shielding/unshielding.

Fiber optic port: 8×SC/LC/ST (single mode/multi-mode), support MPO/MTP pre-termination.

Size and layout:

Standard type: 250mm long × 150mm wide × 60mm high (fits 1U rack space).

Modular design: supports port expansion (such as 16/24 ports through parallel connection).

Material:

Metal: aluminum alloy (sturdy, fast heat dissipation, shielding interference).

Plastic: flame retardant ABS (lightweight, low cost, suitable for indoor use).

2. Functional design

Cable Management:

Wire entry hole: with rubber sealing ring (fits Φ5-10mm cable).

Fixed clip: detachable cable clip, supports wire diameter AWG24-28.

Labels and logos:

Port label slot: supports custom labels (easy to maintain).

LED indicator (optional): displays port connection status.

Shielding performance:

Copper cable: shielded port grounding design, in line with EMC standards.

Optical fiber: metal shell + sealing structure to prevent light leakage.

3. Environmental adaptability

Protection class:

Indoor type: IP20 (dustproof, non-waterproof).

Outdoor type: IP65/IP67 (waterproof, dustproof, impact-resistant).

operating temperature: -10 ° C to + 50 ° C (wide temperature type supports -40 ° C to + 70 ° C).

certification standard CE, FCC, RoHS, UL (in line with international safety standards).

4. Installation and maintenance

Installation method:

Rack-mounted: supports 19-inch/ETSI rack installation (including slide rail accessories).

Wall-mounted: reserved mounting holes on the back, suitable for standard screws.

Desktop type: optional rubber feet, anti-slip and shock-absorbing.

Maintenance design:

Tool-free opening: snap-on cover, supports one-handed operation.

Modular tray: port modules can be replaced independently (fast fault handling).

III.8 Ports Terminal Box Application Scenario

Data Center:

Copper cable/fiber jumper management between servers and switches.

Enterprise Network:

Office desktop network access (such as IP phones, PC terminals).

Security monitoring:

Centralized termination of camera power supply (PoE+) and signal transmission.

Industrial Automation:

Shielded cable connection between sensors and controllers.

Smart Home:

Home network wiring (such as routers, NAS, IPTV).
