Technical Parameter

Item	HSGQ-G01

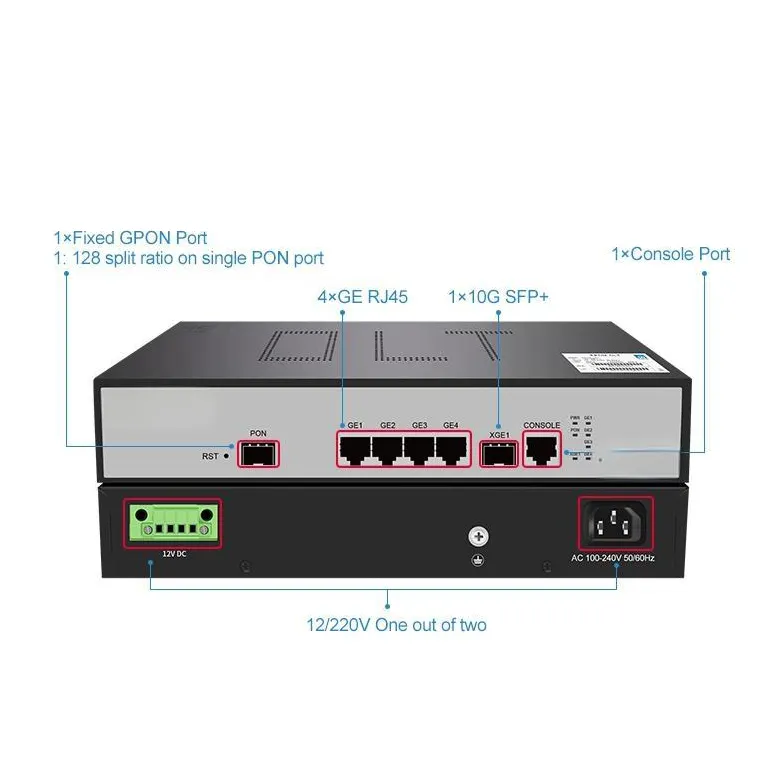

Interface	1 * GPON
	4*GE RJ45
	1*10G SFP+
PON	ITU.T G.984.x / G.988;
	Password authentication modes
	Terminal access up to 60km on a single fiber
	1: 128 split ratio on single PON port
	DBA algorithm, and the particle is for 64Kbit/s
	Standard OMCI management function
	ONU batch software upgrade
	PON port optical parameter detection
	Auto registration ONU bound with default profile
Flash	16MB
GDR	512MB

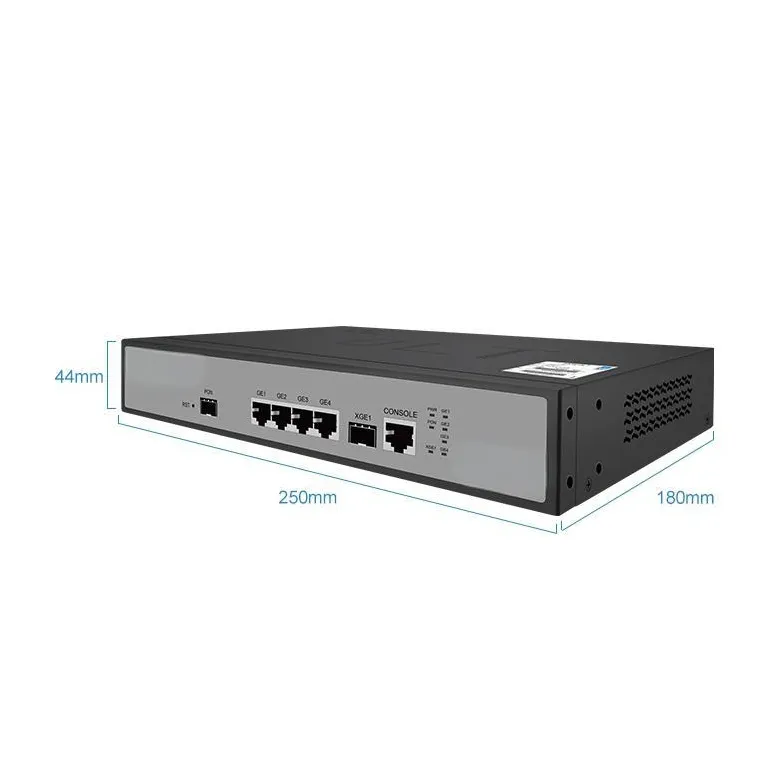

Size	250mm x 180mm x 44mm
Weight	＜5kg
Management Ports	Console port
Environment	Operating temperature:-10°C~55°C
	Storage temperature:-40°C~70°C
	Storage humidity:5%~95% (non-condensing)
Power Supply	DC 12V
Power Consumption	＜10W
Platform Management Features	Device list
	Project management
	Version Release
	Lisense management
	Permission management
	User management
Configuration and Management	CLI, WEB, SNMP, NMS and CLOUD
	Software and bootrom Upgrade by TFTP and FTP
	Chinese/English command prompt
	Ping and Debug diagnosis
	User/Log/Alarm management
Status	PON Status
	Uplink Status
	Performance Monitor
	System Monitor
L2 Function	Support VLAN
	Support Port mirror
	Support Storm control
	Support IGMP Snooping/proxy
	Support MAC Black Hole
	Support Port isolation
	Encrytion of PON port transmitting data

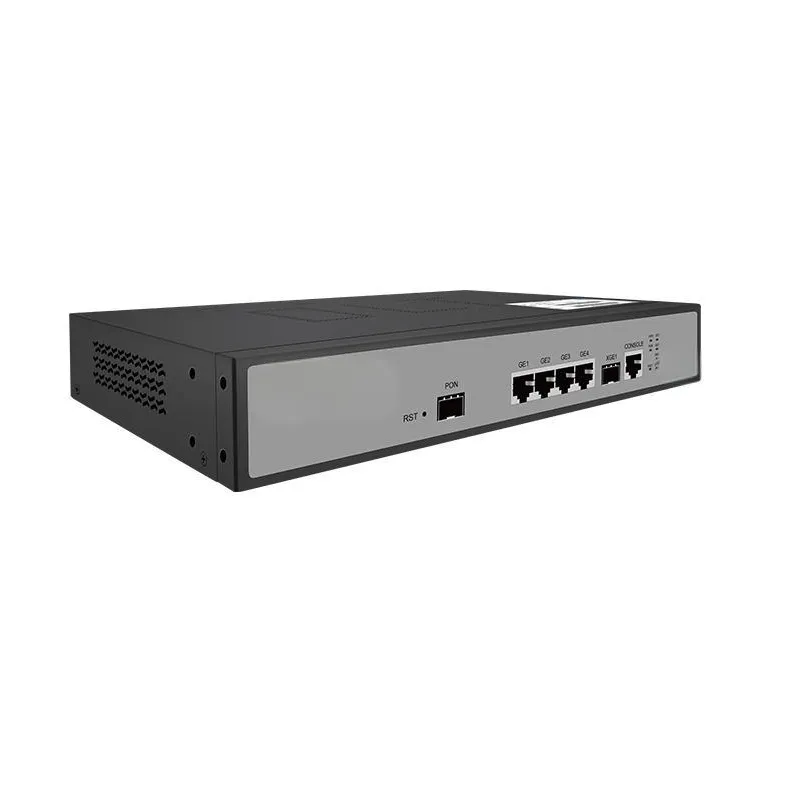

Compact 1-Port GPON Mini OLT for FTTX Networks

16K MAC Address Table: Supports layer 2 switching for up to 16,384 endpoints, ensuring efficient subscriber management.
Dynamic Bandwidth Allocation (DBA): Optimizes upstream/downstream bandwidth utilization based on real-time traffic demands.
Port Aggregation: Combines multiple uplink interfaces for load balancing and redundancy.
Granular QoS: Enforces traffic prioritization and rate limiting at the port level.
Zero-Touch ONU Provisioning: Auto-discovers, registers, and configures ONUs via serial number recognition.
VLAN & Multicast Control: Enables flexible network segmentation and efficient multicast streaming.
IGMP Snooping: Reduces unnecessary multicast traffic by tracking subscriber joins/leaves.
Cloud-Ready Management: Integrates with remote platforms via SNMP/TR-069 for centralized monitoring.
Optical Diagnostics: Proactive fault detection with comprehensive alarm reporting.
Dual Power Supply: Redundant power inputs for uninterrupted operation.
Flexible Uplink: Supports electrical (RJ45) or optical (SFP) modules for diverse network topologies.
Compact Design: 1U rack-mountable chassis with low power consumption (
Scalability: Single PON port supports up to 128 ONUs under full configuration.

Q: How does the 16K MAC table benefit dense FTTX deployments?
A: A 16K MAC capacity ensures the OLT can manage up to 16,384 unique devices without MAC address flooding, critical for subscriber-dense areas where thousands of endpoints require concurrent connectivity.
Q: What advantages does DBA offer over static bandwidth allocation?
A: DBA dynamically adjusts bandwidth based on traffic patterns, prioritizing latency-sensitive services (e.g., VoIP, video) while maximizing overall network efficiency during peak hours.
Q: Can this mini OLT combine multiple uplink connections for higher throughput?
A: Yes, via port aggregation (LACP), it can bond multiple gigabit uplink interfaces into a single logical link, providing load balancing and redundancy for critical backhaul.
Q: How does automated ONU provisioning simplify network rollout?
A: The OLT auto-discovers ONUs via their unique identifiers, auto-registers them using preconfigured templates, and applies policies remotely—eliminating manual configuration and reducing deployment time.
Q: What cloud management protocols are supported for remote monitoring?
A: It supports industry-standard protocols like SNMP and TR-069, enabling integration with third-party network management systems (NMS) for real-time status tracking, firmware updates, and fault diagnostics.
