Product Technical Parameters

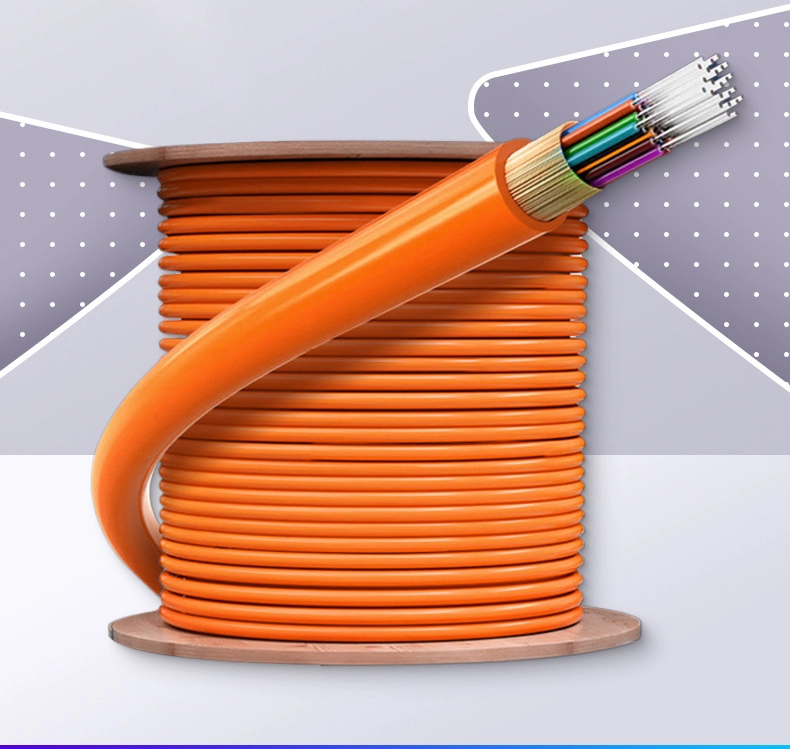

GJBFJH Breakout bundle distribution Indoor Fiber Optic Cable ，G652D/G657A1/G657A2
Indoor Breakout Fiber Optic Cable ，G652D - GJBFJH Structure: GJBFJH consists of φ900μm tight-buffered optical fiber, aramid yarn reinforcement, and a non-metallic central strength member. The outer sheath is made from PVC or LSZH material.Product FeaturesTight-buffered fiber allows easy strip...
Product Attributes
- Fiber Type:G652/G657
- OuterJacket:LSZH/PVC
- FiberCoreCount:2-48Cores
- ProductModel:GJBFJH
Product Description
Indoor Breakout fiber optic cable ，G652D - GJBFJH

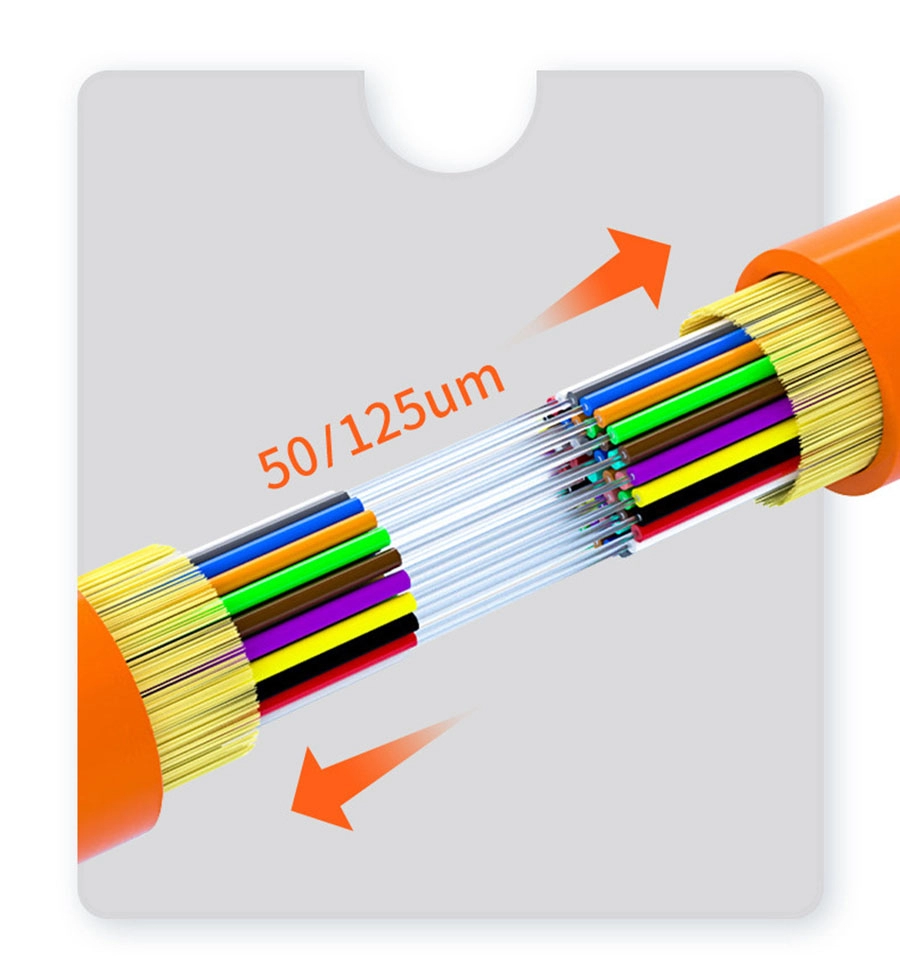

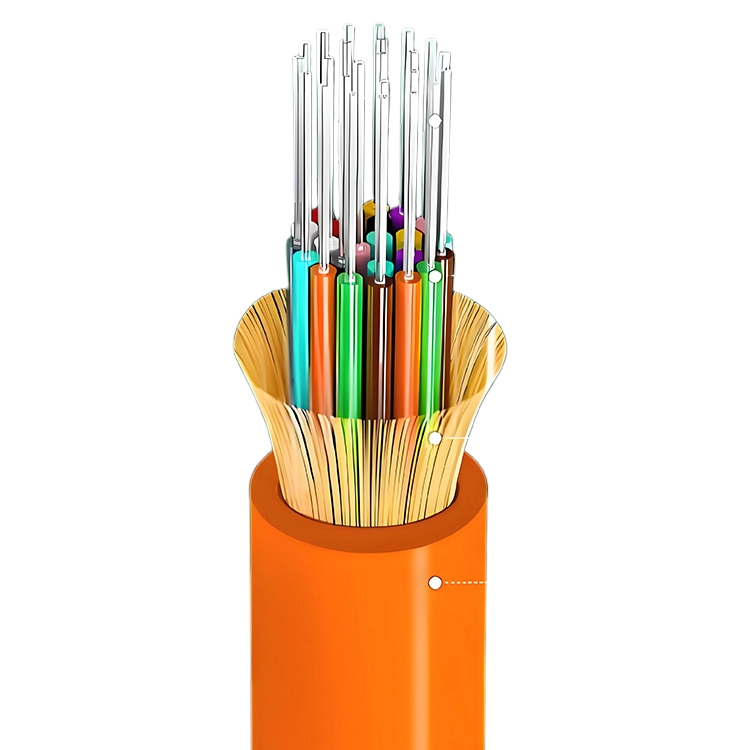

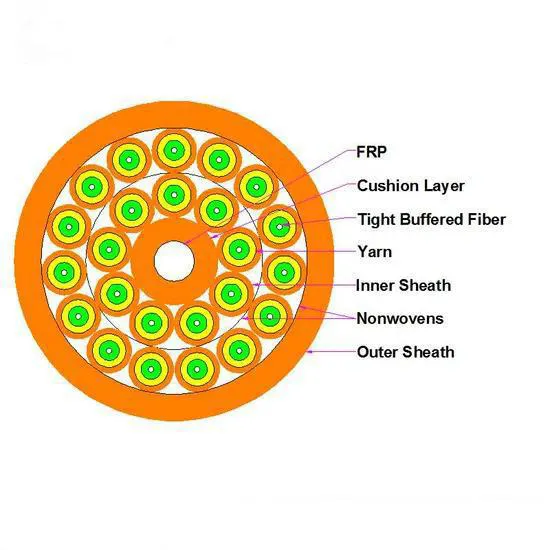

Structure: GJBFJH consists of φ900μm tight-buffered optical fiber, aramid yarn reinforcement, and a non-metallic central strength member. The outer sheath is made from PVC or LSZH material.
Product Features
- Tight-buffered fiber allows easy stripping and termination.
- Excellent flame retardancy.
- Aramid yarn ensures high tensile strength and durability.
- Resistant to corrosion, UV, and environmentally friendly.
- Layered cable design with non-metallic strength member resists pulling forces.
- Supports easy branching for flexible installations.
Purpose
- Ideal for indoor structured cabling systems.
- Used for trunk cabling in buildings.
Sheath Color: Typically yellow, orange, or aqua green; customizable on request.
Compliance
Compliant with YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-10/11 standards. Available in UL OFNR/OFNP and LSZH versions meeting IEC60332-1/3C or OFNR fire ratings.
Fiber Types and Characteristics
The following table lists common fiber types, attenuation, bandwidth, and physical specifications.
* data is too long, please view it in horizontal mode.
| Optical fiber categoryFiber type | Attenuation (20 ℃) | Injection bandwidth (OFL) | Effective bandwidth | 10G Ethernet Link Length SX | Minimum bending radius | |||
|---|---|---|---|---|---|---|---|---|
| 1310/1550nm | 850/1300nm | |||||||
| Typical value | Value | Typical value | Value | |||||
| Unit | dB/Km | dB/Km | dB/Km | dB/Km | MHz·Km | MHz·Km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥47000 | ≤550 | 30 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥47000 | ≤550 | 7.5 |
