1 * 4 PLC fiber optic splitter, mini module splitter

SpecificationsItemSpecificationPackage StyleMini ModuleConfiguration Type12Fiber GradeG.657A1Fiber ModeSinglemodeConnector TypeSC/APCSplit RatioSymmetricalInput/Output Fiber Diameter900 μmInput/Output Fiber Length1.5 mInsertion Loss 4.1 dBReturn Loss 55 dBLoss Uniformity 0.4 dBDirectivity 55 dBPolar...

Inquiry

Product Attributes

ConnectorType:LC/SC/ST/FCAPC/UPC
FiberCoreCount:2-288Cores
FiberType:SM
ProductModel:1*4PLCfiberopticsplitter

Product Description

Specifications

Item	Specification
Package Style	Mini Module
Configuration Type	1×2
Fiber Grade	G.657A1
Fiber Mode	Singlemode
Connector Type	SC/APC
Split Ratio	Symmetrical
Input/Output Fiber Diameter	900 μm
Input/Output Fiber Length	1.5 m
Insertion Loss	≤ 4.1 dB
Return Loss	≥ 55 dB
Loss Uniformity	≤ 0.4 dB
Directivity	≥ 55 dB
Polarization Dependent Loss	≤ 0.2 dB
Temperature Dependent Loss	≤ 0.5 dB
Wavelength Dependent Loss	≤ 0.3 dB
Operating Bandwidth	1260 – 1650 nm
Steel Tube Dimensions (HxWxD)	0.16″ × 1.97″ × 0.28″ (4×50×7 mm)
Temperature	Operating: –40 to 85 °C (–40 to 185 °F)Storage: –40 to 85 °C (–40 to 185 °F)

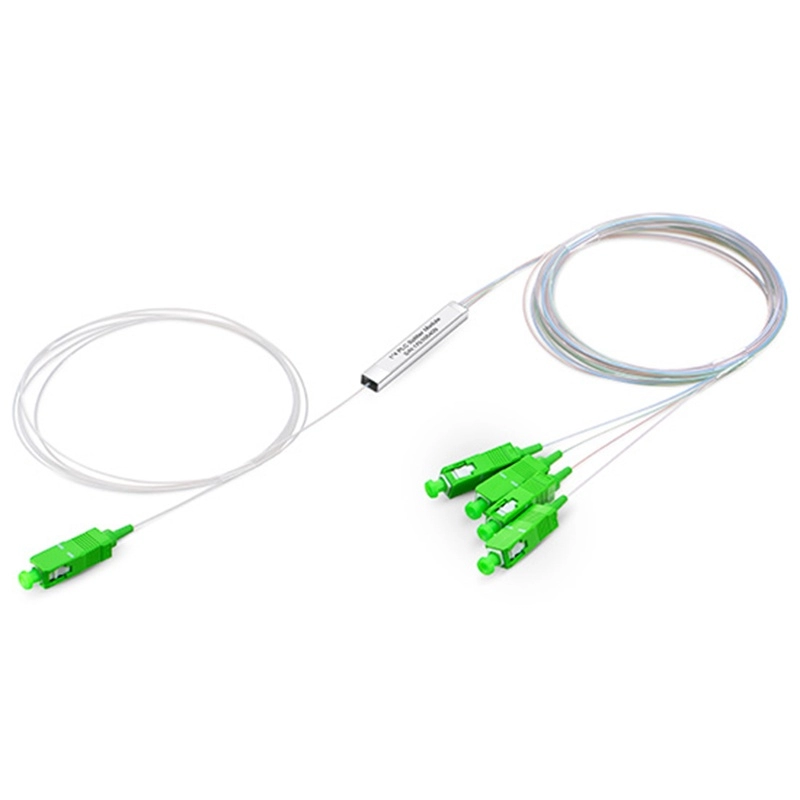

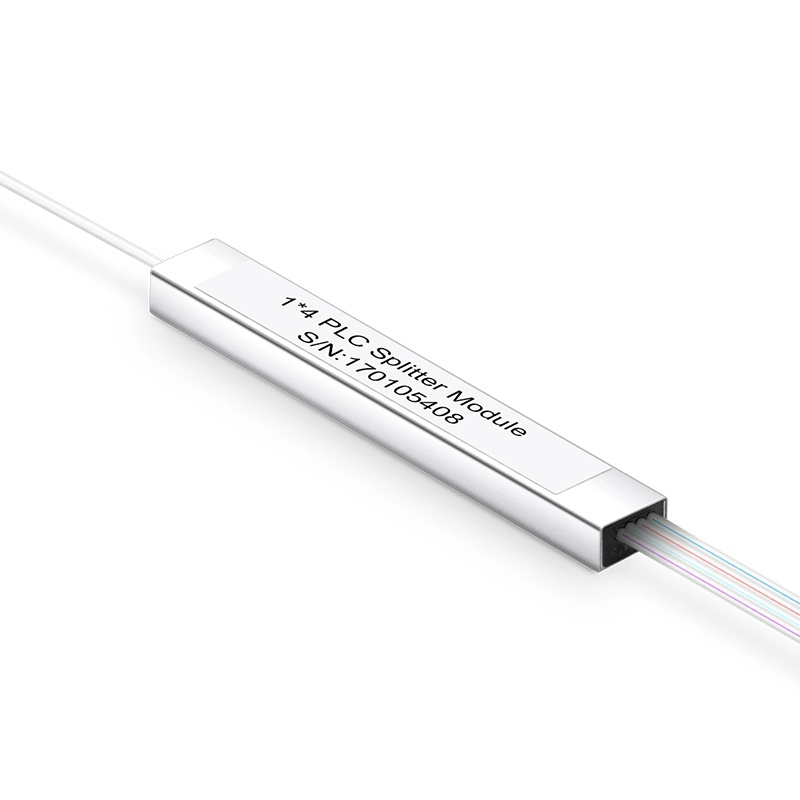

PLC 1x4 Fiber Optic Splitter Mini Module Splitter Product Details and Features

PLC 1x4 Fiber Optic Splitter Mini Module Splitter Product Overview

1x4 PLC Fiber Splitter It is an optical splitter based on planar optical waveguide (PLC) technology, which is used to evenly distribute a single input optical signal to four output ports. The product adopts an integrated optical design with low loss, high uniformity and high reliability. It is suitable for applications such as fiber optic communication, fiber sensing and fiber to the home (FTTH), especially applications that require multi-port signal distribution.

II.PLC 1x4 Fiber Optic Splitter Mini Module Splitter Core Features

Precision spectroscopy
- The PLC chip is used to ensure that the four-way output optical power difference (uniformity) is less than or equal to 0.6dB, and the signal distribution is stable.
Low insertion loss
- Typical insertion loss: ≤ 7.3dB (including connectors), optimizing transmission efficiency.
Wide wavelength compatibility
- Operating wavelength range: 1260-1650nm, suitable for single-mode fiber (G.652D/G.657A, etc.).
Compact and durable design
- packageMiniaturized package (e.g. ABS plastic box or metal tube protection) for easy installation.
- connectorSupport SC/APC, LC/APC, FC/APC and other interfaces, suitable for different devices.
Environmental adaptability
- Operating temperature: -40 ° C to + 85 ° C, suitable for indoor and outdoor complex environments.
- Compliant with standards: Telcordia GR-1221, RoHS, CE certification.

IV.PLC 1x4 Fiber Optic Splitter Mini Module Splitter Typical Application Scenarios

FTTH networkSingle fiber is divided into four households to reduce the amount of backbone fiber.
Data CenterSignal shunt between server and switch to support redundant backup.
Optical fiber sensingMulti-point signal acquisition in distributed temperature/strain monitoring.
security monitoring: Single video signal is divided into multiple monitoring end points.

V. Summary of advantages

cost-effectivenessPLC technology is mass-produced, and the cost is lower than that of mechanical beam splitters.
Flexible expansionSupport cascading or parallel connection to build complex optical networks.
high reliabilityPassive design, no electromagnetic interference, long lifespan.

1x4 PLC Fiber Splitter Through PLC technology implementation of efficient and uniform signal distribution, combined with compact packaging and wide temperature adaptability, it provides a stable solution for scenarios requiring multiple optical signal outputs.
