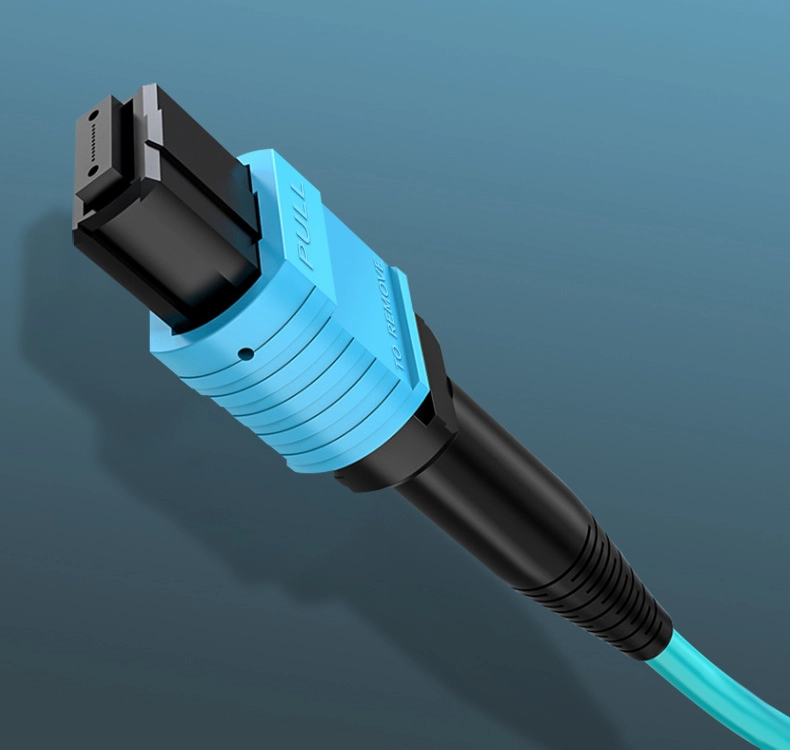

MPO fiber jumper cable, 10 megabyte multi-mode fiber optic cable patch cord,8-core female head B polar 40G optical module MTP fiber hopping

MPO fiber patch cord technical parameters

MTP/MPO Fiber Optic Patch Cable Product Detailed Introduction

MPO Fiber Optic Patch Cable Product Overview:

MTP/MPO fiber jumper is a high-density, high-performance multi-core fiber connection component. It adopts MTP/MPO (Multi-fiber Push-On) connectors and is suitable for high-density wiring scenarios. MTP/MPO jumpers support multi-core fibers (such as 12-core, 24-core, 48-core, etc.) and are widely used in data centers, cloud computing and high-performance computing (HPC) environments.

MPO fiber patch cord product structure:

• Fiber Type: Multimode (OM3, OM4, OM5) or single-mode (OS2).

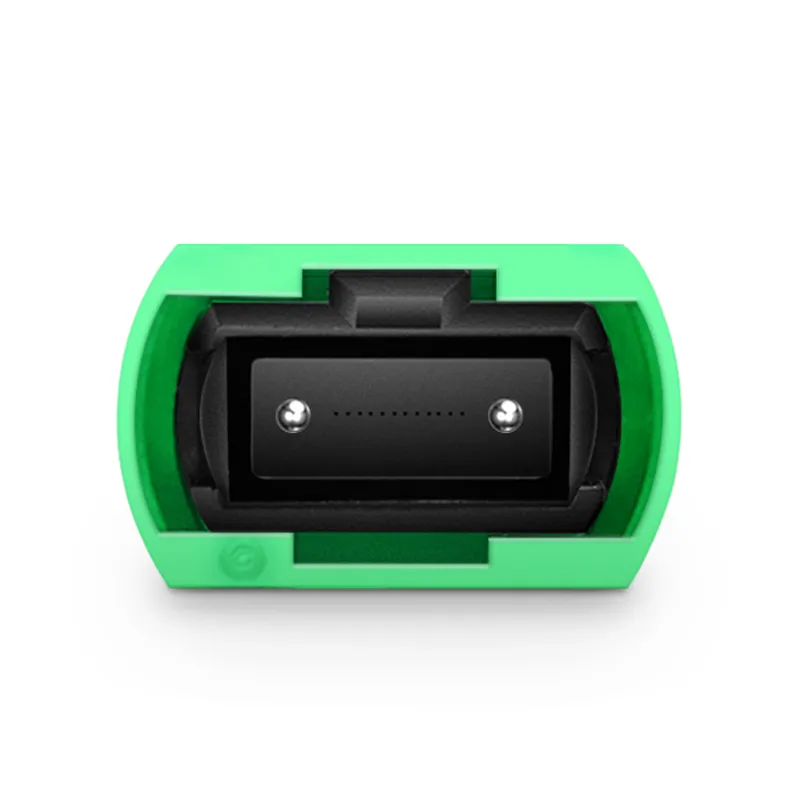

• Connector type: MTP/MPO (supports male or female configuration).

• Number of cores: Common for 12 cores, 24 cores, 48 cores, support customization.

• Sheath material: Low smoke and halogen-free (LSZH) or PVC, with flame retardant and environmentally friendly properties.

• Outer diameter: Usually 3.0mm or 4.5mm, it can be customized according to requirements.

• Length: Standard lengths are 1m, 2m, 3m, 5m, 10m, etc. Customized lengths are supported.

MPO Fiber Optic Patch Cord Product Features

1. High density connection:MTP/MPO connectors support multi-core fiber (e.g. 12-core, 24-core, 48-core), which significantly increases wiring density and saves space.

3. High-speed transmission:Supports 40Gbps, 100Gbps, and 400Gbps Ethernet transfers for use in data centers and high-performance computing environments.

5. Low insertion loss:Low insertion loss (typically less than or equal to 0.5 dB) ensures high signal transmission efficiency.

7. Easy to install and maintain:The MTP/MPO connector adopts a push-pull design, which is easy to plug and unplug, supports rapid deployment and maintenance, and reduces operation and maintenance costs.

8. Wide compatibility:Compatible with a wide range of network devices, such as switches, routers, and servers, for use in data centers, cloud computing, and high-performance computing environments.

10. Durability:The sheath material has excellent wear resistance and tensile resistance, prolonging the service life. The low-smoke halogen-free sheath meets the requirements of environmental protection and flame retardancy, and is suitable for scenes with high safety standards.

12. Multiple configuration options:Support male-male, female-female, male-female and other configurations to meet different application requirements.

14. Supports multimode and single-mode fiber:OM3, OM4, OM5 multimode fiber and OS2 single mode fiber options are available to adapt to different transmission distances and bandwidth requirements.

application scenario

• Data center: For high-density cabling, support 40G/100G/400G Ethernet transmission.

• Cloud Computing: Suitable for high-speed connections between servers, storage devices, and switches.

• High-performance computing (HPC): Fiber optic interconnects for supercomputers and trunking systems.

• Telecommunications network: Suitable for high-capacity transmission and backbone networks.

• Enterprise network: For high density fiber optic patch panels and trunk cabling.
