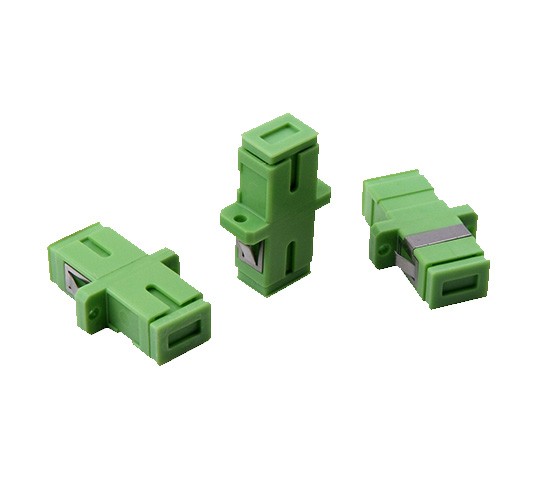

SC-SC optical Adapter/Coupler/Flange High-Precision Fiber Connector for Stable SC Duplex Connections

SC-SC optical Adapter/Coupler/Flange Description:Good repeatability and interchangeability 。Good temperature performance and durability 。High-quality ceramic casing with low insertion loss 。High reflection loss dimensional accuracy 。SC-SC optical Adapter/Coupler/Flange ApplicationsOptical fiber com...

Inquiry

Product Attributes

AdapterType:SC,LC,FC,ST,E2000
PolishingType:UPC,APC
PortType:Simplex,duplex
FiberType:Single-mode,Multi-mode
ProductModel:SC-SC

Product Technical Parameters

Product Description

SC-SC optical Adapter/Coupler/Flange Description:

Good repeatability and interchangeability 。
Good temperature performance and durability 。
High-quality ceramic casing with low insertion loss 。
High reflection loss dimensional accuracy 。

SC-SC optical Adapter/Coupler/Flange Applications

Optical fiber communication
Data Processing Network
Telecommunications equipment
LAN
CATVTURECCTV
FTTH

Specifications

Name	Adapter/Coupler/Flange
Adapter type	SC,LC,FC,ST,E2000
Polishing type	UPC, APC
Fiber type	Single-mode, Multi-mode
Port type	Single, Double
Sleeve material	Ceramic/Bronze
Attenuation Value	3~25 dB
Insertion Loss	≦0.2dB
Plug and unplug force	200-600 g/f
Mating Durability 1000 times	0.2 dB
Repeat-ability	0.1dB
Interchangeability	0.2 dB
Wavelength Range	1260 ~ 1650 nm
Operating temperature	-40℃~ +80℃
