Product Technical Parameters
GYFTA53 Non-metallic Strength member Armored Fiber Cable G652D/G655 ， Armored Fiber Optic Cable / Armored optical cable
optical propertiesG.652G.65550 / 125μm62.5/125 μmAttenuation (+20℃)@850nm3.0 dB/km3.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="7a11173a4b494a4a14174b544a">[email protected]</a> dB/km1.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="2e45436e1f1d1f1e40431e001d18">[email protected]</a> dB/km0.40 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="e58e88a5d4d0d0d58b88d5cbd7d7">[email protected]</a> dB/km0.23dB/kmBandwidth (Class A)@850nm500 MHz·km200 MHz·km@1300nm1000 MHz·km600 MHz·kmNumerical Aperture0.2000.015NA0.2750.015NACable Cut-off Wa...
Product Attributes
- Fiber Type:G652D/G655
- OuterJacket:PE
- FiberCoreCount:2-288Cores
- ProductModel:GYFTA53
Product Description
optical properties
| G.652 | G.655 | 50 / 125μm | 62.5/125 μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
| Storage/Operating temperature | -40℃ ~+70℃ | ||||
Technical parameters
| Model | Fiber Count | Tubes | Outer Diameter (mm) | Weight (kg/km) | Tensile Strength Long /Short term N | Crush Resistance N/100mm | Bending Radius Static/ Dynamic mm |
| GYTC8S-2~6F | 2~6 | 1 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-8~12F | 8~12 | 2 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-14~18F | 14~18 | 3 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-20~24F | 20~24 | 4 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-26~30F | 26~30 | 5 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
GYFTA53 Non-metallic Strength member armored fiber cable / Armored fiber optic cable / Armored optical cable Product Description

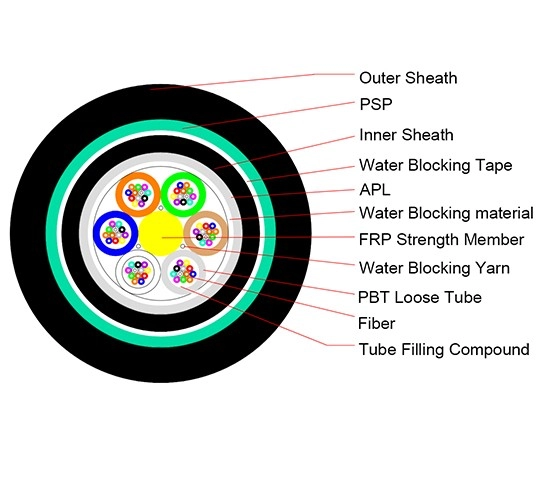

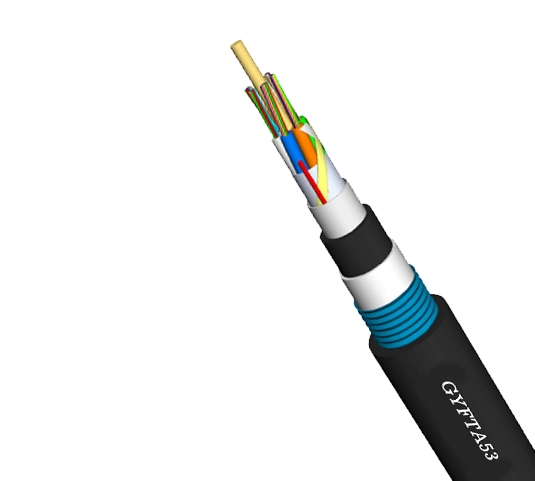

The GYFTA53 type optical cable places the 250um optical fiber in a loose sleeve made of high modulus plastic, and the sleeve is filled with waterproof filler. The center of the optical cable core is an FRP non-metallic reinforcement. The sleeve and the filler are twisted around the reinforcement to form a compact circular optical cable core. The optical cable core is covered with APL, the optical cable core is covered with a thin PE inner sheath, and the inner sheath is filled with waterproof glue. After the steel belt is armored, the PE outer sheath is added to form a cable.
Product Features of GYFTA53 Non-metallic Strength member Armored Fiber Cable / armored fiber optic cable / Armored optical cable
Good mechanical properties, good high temperature resistance, high strength loose casing, hydrolysis resistance
Special casing filler plays a key role in protecting optical fibers
Anti-extrusion, good flexibility
PSP enhanced moisture resistance
APL moisture barrier
Good water resistance
GYFTA53 Non-metallic Strength member Armored Fiber Cable / Armored Fiber Optic Cable / Armored optical cable application:
Pipeline, overhead, direct burial.
