GYFTY 2-288 Cores Non-metallic Strength Member Non-armored Optical Fiber Cable ,G652D/G655

* The data is too long. View in landscape mode on mobile phoneoptical propertiesG.652G.65550 / 125μm62.5/125 μmAttenuation (+20℃)@850nm3.0 dB/km3.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="0d66604d3c3e3d3d63603c233d">[email protected]</a> dB/km1.0 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="452e2805747674752b28756b7673">[email protected]</a> dB/km0.40 dB/<a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="ea8187aadbdfdfda8487dac4d8d8">[email protected]</a> dB/km0.23dB/kmBandwidth (Class A)@850nm500 MHz·km200 MHz·km@1300nm1000 MHz·km600 MH...

Inquiry

Product Attributes

Fiber Type:G652D/G655
OuterJacket:PE
FiberCoreCount:2-288Cores
ProductModel:GYFTY

Product Technical Parameters

Product Description

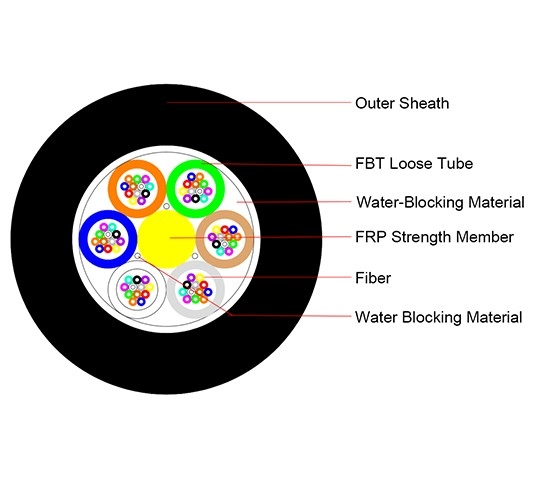

GYFTY 2-288 Cores Non-metallic Strength Member Non-armored Optical Fiber Cable ,G652D/G655(pic1)

* The data is too long. View in landscape mode on mobile phone

optical properties

		G.652	G.655	50 / 125μm	62.5/125 μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm
Storage/Operating temperature		-40℃ ~+70℃

Technical parameters

Model	Fiber Count	Tube	Weight (kg/km)	Tensile Strength Long /Short term N	Crush Resistance N/100mm	Bending Radius Static/ Dynamic mm
GYFTY-2~36F	2~36	6	88	600/1500	300/1000	10D/20D
GYFTY-38~72F	38~72	6	112	600/1500	300/1000	10D/20D
GYFTY-74~96F	74~96	8	155	600/1500	300/1000	10D/20D
GYFTY-98~120F	98~120	10	185	600/1500	300/1000	10D/20D

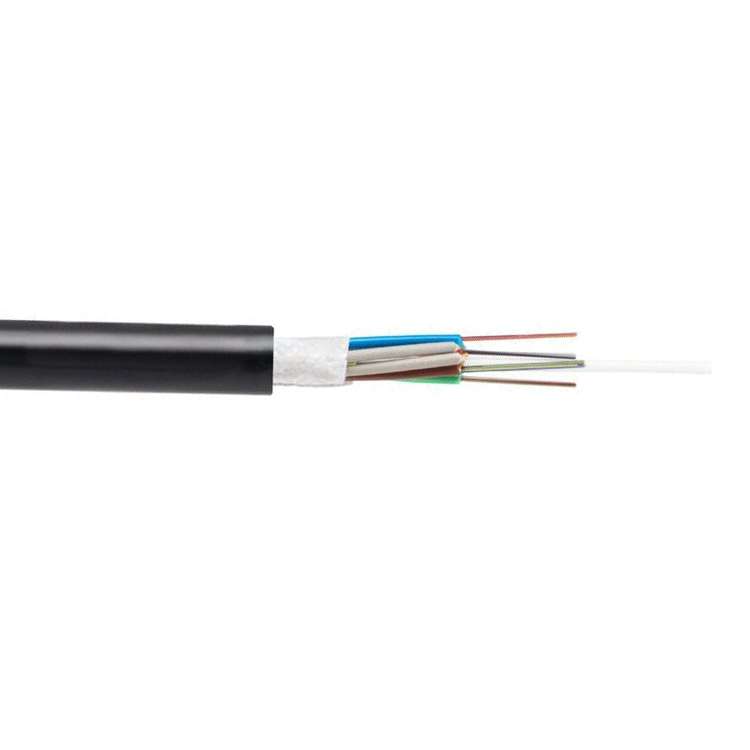

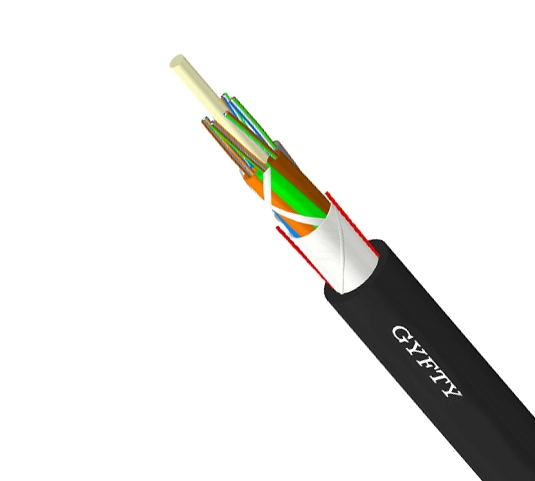

GYFTY Non-metallic Strength Member Non-armored Optical Fiber Cable G652D Product Description

The GYFTY type optical cable places the 250 μm optical fiber in a loose sleeve made of high modulus plastic, and the sleeve is filled with waterproof filler. The center of the optical cable is fiber reinforced plastic (FRP) as a non-metallic reinforcing member. The cable sleeve and the filler are twisted to form a compact circular cable core around the reinforcing member. After the cable core is filled with waterproof filler, the PE sheath is finally used to complete the cable formation.

Product features of GYFTY Non-metallic Strength Member Non-armored Optical Fiber Cable G652D

Good mechanical and temperature properties

High-strength loose casing, resistant to hydrolysis

Special casing filler plays a key role in protecting optical fibers

Anti-extrusion, good flexibility

Single fiber-reinforced plastic as a central reinforcement

Light weight, small diameter, easy installation

Application:

Pipes, overhead.
