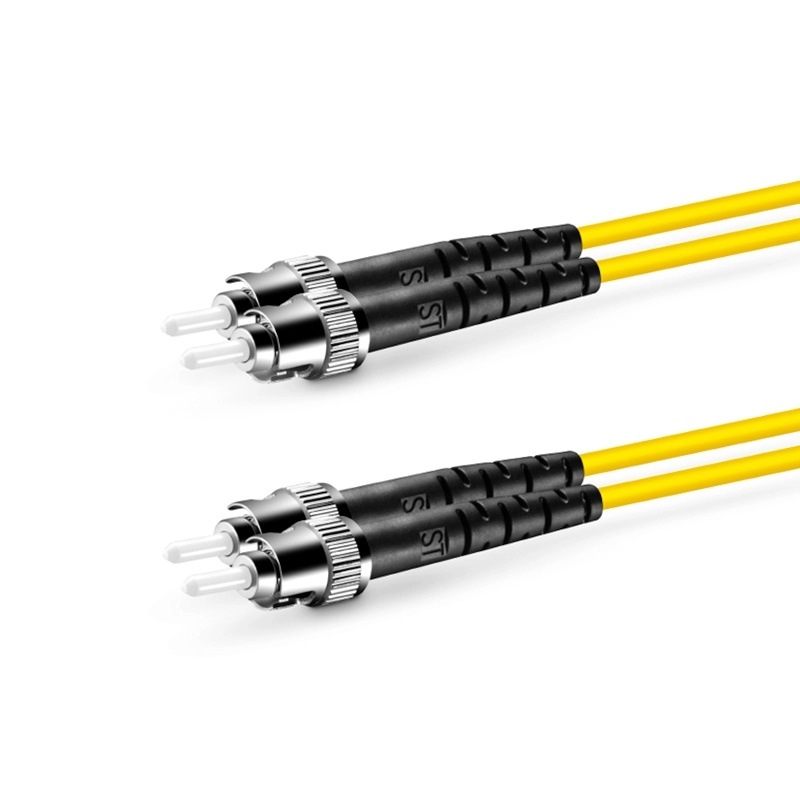

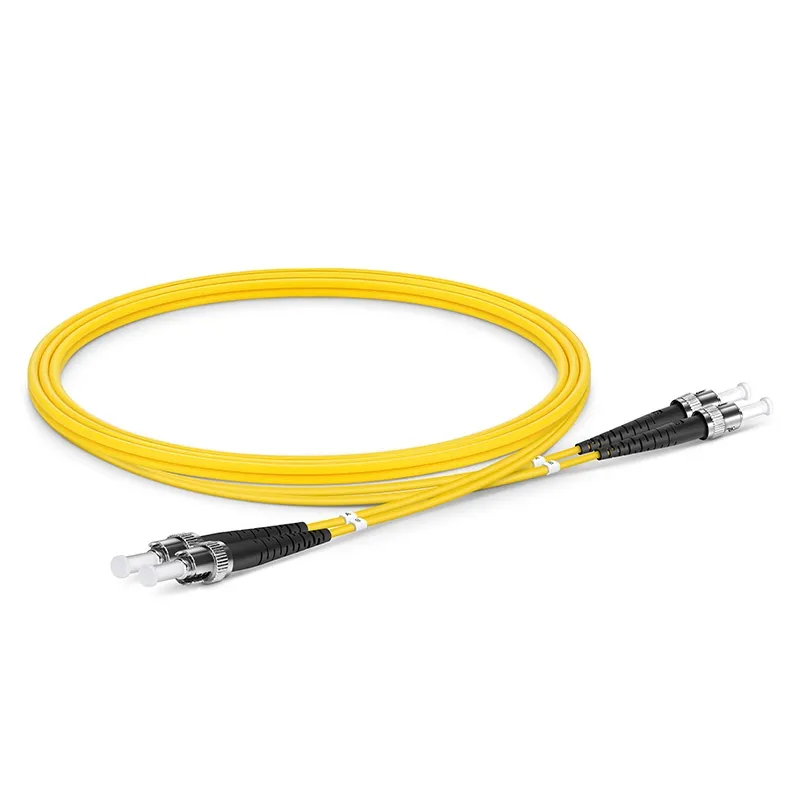

ST-ST Singlemode fiber optic cable patch cord​, Fiber Jumper Cable

Product Overview:

ST-ST single-mode fiber optic jumper is a high-performance fiber optic connectivity solution using the ST interface (Straight Tip Connector), suitable for single-mode fiber optic communication scenarios that require high precision and stability. The ST interface is known for its rugged design and reliable connection performance, and is widely used in telecommunications, data centers, local area networks (LANs), and long-distance transmission systems.

Product features

1. High transmission performance:

2. • Supports single-mode fiber transmission for long-distance and high-bandwidth applications.

   • It performs well at 1310nm and 1550nm wavelengths, with transmission distances of up to 10 kilometers to 40 kilometers, meeting a wide range of network requirements.

3. Low insertion loss and high return loss:

   • Precision polished ceramic ferrules are used to ensure low insertion loss and high return loss, thus enhancing signal transmission efficiency.

   • Typical insertion loss ≤ 0.3dB, return loss ≥ 50dB.

4. Durability:

   • The ST interface features a metal housing and spring-loaded design, providing reliable connectivity and vibration resistance for harsh environments.

   • The fiber optic jumper outer sheath is made of high-quality materials (such as PVC or LSZH), which are wear-resistant, tensile, and compressive.

5. Bend insensitive design:

   • Some models use bend-insensitive fiber (BIF), which offers less signal attenuation when bent or twisted, making it suitable for complex cabling environments.

7. Plug and Play:

   • Pre-termination design, easy installation, no need for on-site welding, saving time and cost.

   • Suitable for rapid deployment and maintenance.

8. Environmental protection and safety:

   • The outer sheath material meets RoHS standards, and some models are made of low-smoke halogen-free (LSZH) materials, which are flame retardant and environmentally friendly, making them suitable for data center and indoor applications.

9. A variety of lengths are available:

   • We offer a variety of length options (e.g. 1 meter, 2 meters, 3 meters, 5 meters, 10 meters, etc.) to meet the wiring requirements of different scenarios.

Typical application scenarios

• Telecommunications network: It is used for the connection of base stations, transmission equipment and access networks.

• Data center: Suitable for high-speed connections between servers, switches, and storage devices.

• Enterprise network: It is used for cabling and expansion of local area networks (LANs) and wide area networks (WANs).

• Long distance transmission: Fiber optic links suitable for metropolitan area networks (MAN) and telecommunications.

• Test and Measurement: For optical network testing, maintenance and troubleshooting.

Technical parameters

Specifications
