OM3 Simplex & Duplex Multimode Fiber Patch Cord / Jumper Cable

OM3 fiber patch cords (jumpers) with LC, SC, FC, ST connectors in simplex or duplex types. Designed for 10G/40G Ethernet, SAN, and high-density data centers....
Inquiry
Product Attributes
  • Connector Type:LC/SC/ST/FC，APC/UPC
  • Port Type:Simplex,duplex
  • Outer Jacket:LSZH/PVC
  • Fiber Type:Multimode OM3 (50/125)
  • Product Model:0M3
Product Technical Parameters
Product Description

This OM3 multimode fiber patch cord is available in both simplex and duplex configurations, designed for short-distance high-speed data transmission. It is widely used in LANs, data centers, SANs, and high-performance computing environments requiring stable and efficient 10G–40G connectivity.

Main Features

• OM3 50/125μm multimode fiber optimized for 850nm VCSEL transmission.

• Supports 10Gbps up to 300 meters, and 40Gbps up to 100 meters.

• Available with LC, SC, FC, ST connectors in simplex or duplex versions.

• Low insertion loss, excellent return loss, factory polished and tested.

• Flame-retardant jacket options: LSZH, PVC, OFNP.

Product Specifications

Fiber Type

• OM3 multimode (50/125μm)

Connector Types

• LC, SC, FC, ST (UPC polish)

Jacket Options

• Simplex or Duplex; PVC, LSZH, OFNP available

Applications

• 10G/40G Ethernet transmission

• Data center and server room connectivity

• SAN (Storage Area Network) and fiber channel links

• Patch panels, switches, and active fiber equipment

fiber patch cord_01.jpg

fiber patch cord_02.jpgfiber patch cord_03.jpg0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord (pic1)

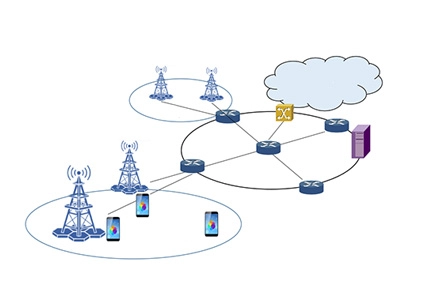

Widely-used-in-FTTC-access-network

0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord (pic2)

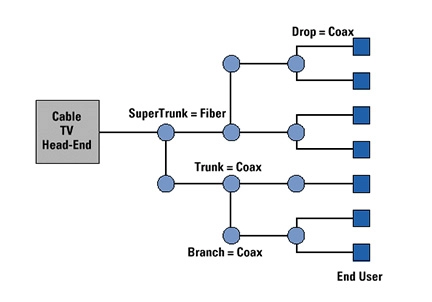

CATV

0M3 OM3 Simplex/Duplex Fiber Jumper / fiber patch cord (pic3)

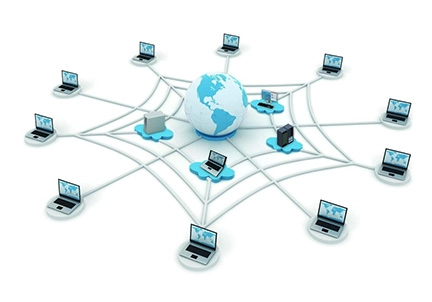

Data-processing-networks

    Fiber Optic Equipment

Case
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
+
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
+
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
+
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
+

Opticlink  have a total of 8pieces  production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop


首4.jpg    首5.jpg    首3.jpg首2.jpg    首1.jpg

Keywords: OM3, Multimode, Fiber Patch Cord, Jumper
