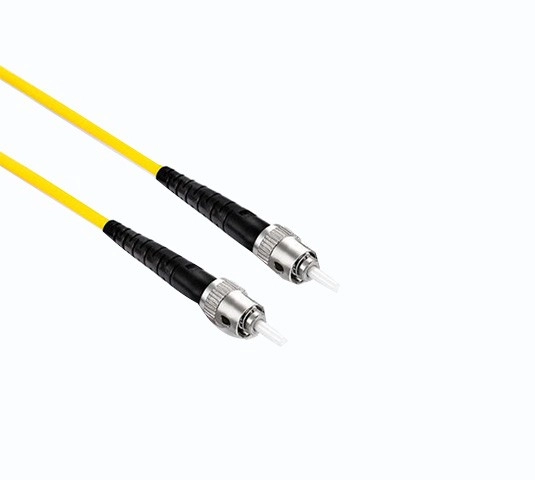

Plastic ST Connector with APC/UPC Polish for Fiber Network Applications

Explore our plastic-housed ST APC/UPC fiber optic connectors offering low insertion loss (~0.15 dB SM, ~0.25 dB MM), high return loss (UPC  55 dB), robust durability, and easy bayonet-style installation. Compatible with SM and MM fibers; OEM/ODM, samples, warranty, and swift support available....
Inquiry
Product Attributes
  • connect type:ST
  • Polishing Type:UPC/APC
  • Port Type:Simplex,duplex
  • Fiber Type:Single-mode,Muti-mode
  • Product Model:ST
Product Technical Parameters
Product Description

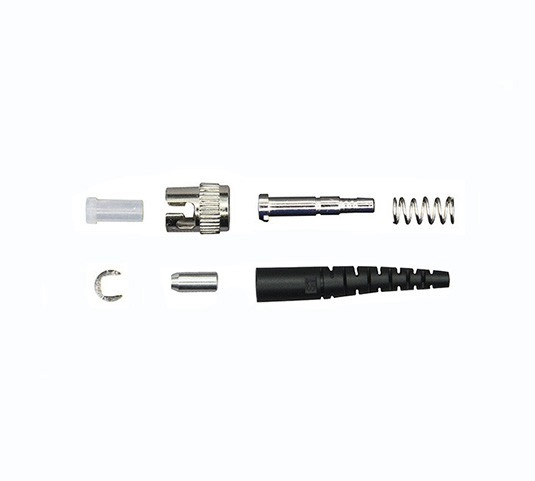

Simple Bayonet Design with Plastic Shell

These ST/UPC connectors feature a bayonet “stab and twist” coupling mechanism within a plastic housing—lightweight yet practical. The keyed ferrule ensures fast, secure mating without additional tools, ideal for quick installation in patch panels or distribution frames.

Low Insertion Loss and High Return Loss Performance

Typical optical specs include insertion loss of ≤ 0.15 dB for single-mode and ≤ 0.25 dB for multimode fibers, with return loss (UPC polish) exceeding 55 dB—ensuring clean signal transmission and minimal reflection.

Reliable Durability Across Conditions

These connectors maintain performance with less than 0.2 dB variation over 500 mating cycles, and stable insertion loss across temperatures from −40 °C to +85 °C—offering reliability in diverse environments.

Wide Fiber Compatibility

Compatible with both single-mode and multimode fibers, these ST/UPC connectors support typical core dimensions and are suitable for general-purpose data and telecom applications in enterprise LANs, media systems, and patch panels.

YRT Fiber Backed Reliability & Service

YRT Fiber’s ST/UPC connectors are produced under strict quality standards and supported by comprehensive services: OEM/ODM customization, sample options, 24-hour inquiry response, tracking from production to delivery, and dedicated after-sales support.

application

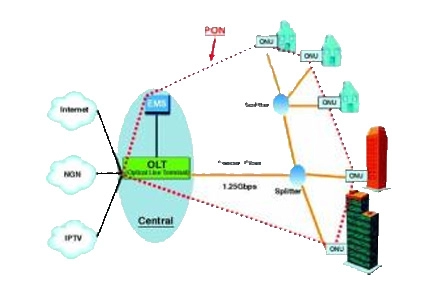

  • ST connector UPC plastic fiber optic connectors(pic1)

    Fiber-optic-access-networks

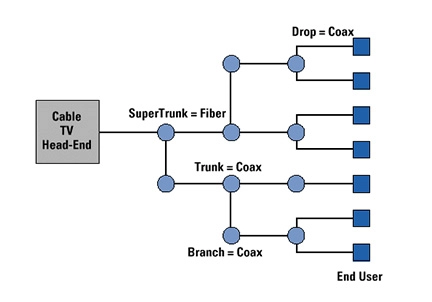

  • ST connector UPC plastic fiber optic connectors(pic2)

    CATV

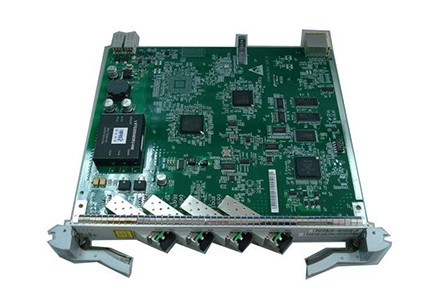

  • ST connector UPC plastic fiber optic connectors(pic3)

    Fiber-optic-communications

    Fiber Optic Equipment
