SC/UPC Optical Fiber Fast Connector for Fast Deployment & Superior Signal Quality

Discover SC/UPC fast connectors offering rapid field installation and low insertion loss. YRT Fiber provides OEM/ODM options, samples, 24‑hour inquiries, warranty coverage, and strong after‑sales support....

Inquiry

Product Attributes

Fiber Mode:62.5/125µm OM1, 50/125µm OM2/OM3/OM4/OM5
Polishing:UPC
Connector Type:SC

Product Technical Parameters

Product Description

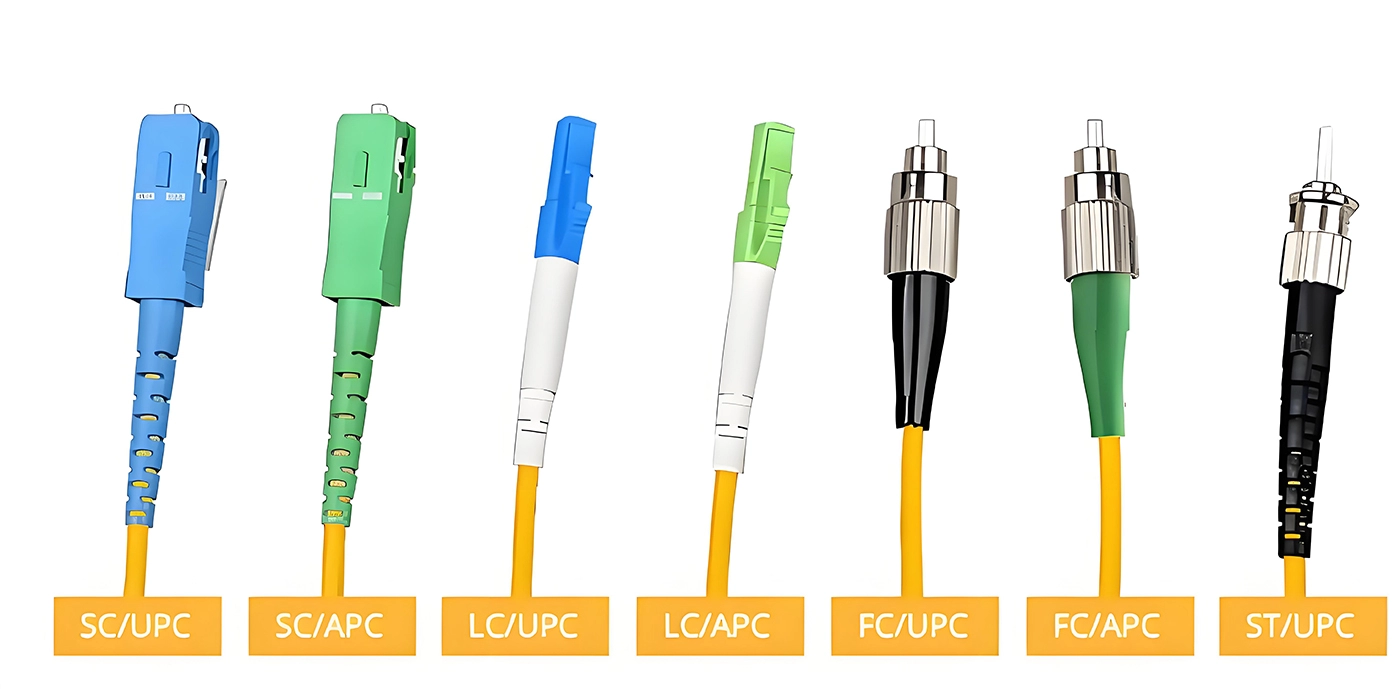

SC/UPC Optical Fiber Fast Connectors(pic1)

Lightning-Fast Installation

The SC/UPC optical fiber fast connector enables tool‑free field termination of optical fibers. Trim, clean, insert, and cure—installation is completed rapidly without polishing, offering remarkable time‑savings on-site.

SC/UPC Optical Fiber Fast Connectors(pic2)

Outstanding Signal Integrity

Featuring a UPC end-face polish, the connector achieves low insertion loss (< 0.3 dB) and excellent return loss (≥ 50 dB), delivering superior optical performance for FTTH, data links, and precision optical networks.

Durability in Diverse Conditions

Built with rugged materials and a robust metal sleeve, the connector maintains performance through vibration, temperature extremes (−40 °C to +85 °C), and outdoor applications, ensuring consistent reliability.

Ideal for Field Deployments

This quick connector streamlines installation across FTTH projects, temporary links, system expansion, and emergency repairs. No special tools or extensive training are necessary, enabling rapid and flexible deployment.

Complete Service from YRT Fiber

We back our SC/UPC fast connectors with full-service support: OEM/ODM, sample offerings, 24-hour inquiry response, production and delivery tracking, and dedicated after-sales care including returns, maintenance, and on-demand solutions.

Fiber Optic Equipment

Case

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: SC fast connector, SC quick connector, low loss connector, fiber connector, SC connectors

Tool-Free FC fast Connector for Field Assembly and Stable Op

No more

Product parameters	Type	Technical parameters	Environmental parameters
Low insertion loss	embedded	Fiber diameter: 125um-900um	Operating temperature: -40°–85°
High return loss		Interpolation loss: THE ≤0.3dB; ≤0.5dB	Temperature cycle: IL Value Change ≤0.3dB
High reliability and high stability		Return loss: RL ≥40dB	Vibration: THE value change ≤0.3dB
Data can be customized according to customer requirements			Flood disaster: THE value change ≤0.3dB
			Repeatability: THE value change ≤0.3dB

SC/UPC Optical Fiber Fast Connector for Fast Deployment & Superior Signal Quality

Performance parameters

Lightning-Fast Installation

Outstanding Signal Integrity

Durability in Diverse Conditions

Ideal for Field Deployments

Complete Service from YRT Fiber

FAQ: Frequently Asked Questions

How fast can the SC/UPC fast connector be installed?

What are the optical performance specifications?

Is the connector suited for challenging environments?

Do you support customizable OEM/ODM production?

Can I request sample connectors for testing?

What does your warranty cover?

How quickly do you respond to inquiries?

What after-sales services are available?

Product Inquiry
