ASU80 1–12 Core Mini ADSS aerial Fiber Optical Cable | G.652D/G.655/G.657 Outdoor Self-Supporting single mode/multimode

Packaging Requirements:

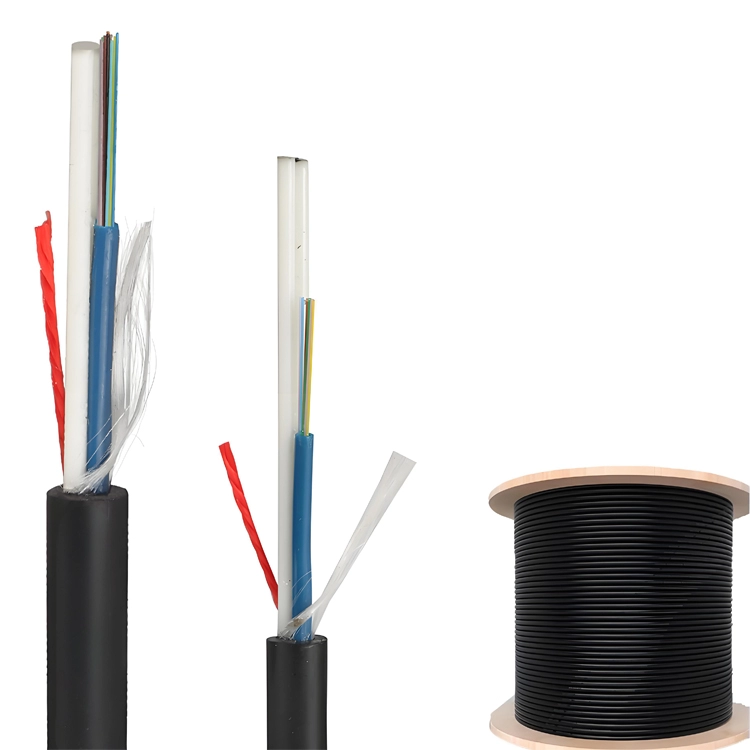

• 1：All cables shall be wound on treated wooden spools that are not returnable
• 2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
• 3：Each spool must include:
  • 1、 Protective plastic wrapping layer
  • 2、 Reinforcing wooden slats for stability
  • 3、 Minimum 1m of free cable end for testing purposes
  • 4、 Standard spool length: 3000mm (±2% tolerance allowed)

Cable Identification:

The outer jacket must display:

• 1、Unique sequential numbering every 1m (±1% variance permitted)
• 2、 Additional repeating markings at 1m intervals showing:
  1. 1、 Product code and fiber count
  2. 2、 Manufacturer identification
  3. 3、 Production date (month/year)
  4. 4、Total cable length

Standard Packaging Dimensions:

Technical Reference:

• 1、 Standard cable diameter: 10.0mm
• 2、Maximum span distance: 100m
• 3、Contact sales team for complete technical specifications

Spool Marking Standards:

Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:

1. 1、 Company name and trademark
2. 2、Contained cable length
3. 3、Cable specifications (type/fiber count)
4. 4、Winding orientation
5. 5、Weight measurements (gross/net)

Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.

1. What is the ASU80 Mini ADSS fiber optic cable?

The ASU80 is a compact, all-dielectric self-supporting (ADSS) aerial fiber optic cable designed for short span installations (typically 80m or 120m). It supports 1–12 core single-mode fibers and is ideal for FTTH and outdoor telecom networks.

2. What fiber types are supported in this cable?

The ASU80 cable supports standard single-mode fiber types including G.652D, G.655, and G.657 (A/A2), making it compatible with various installation requirements and bending performance standards.

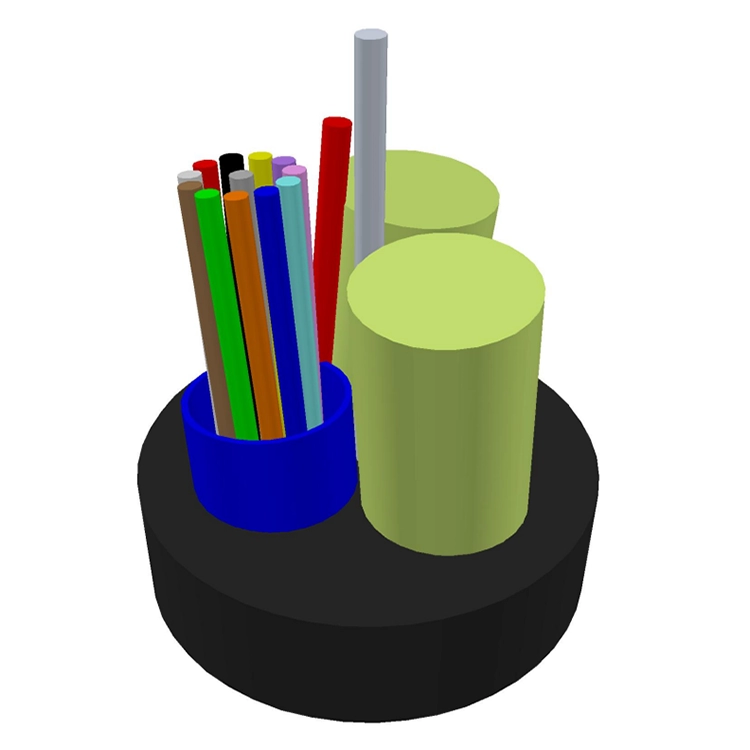

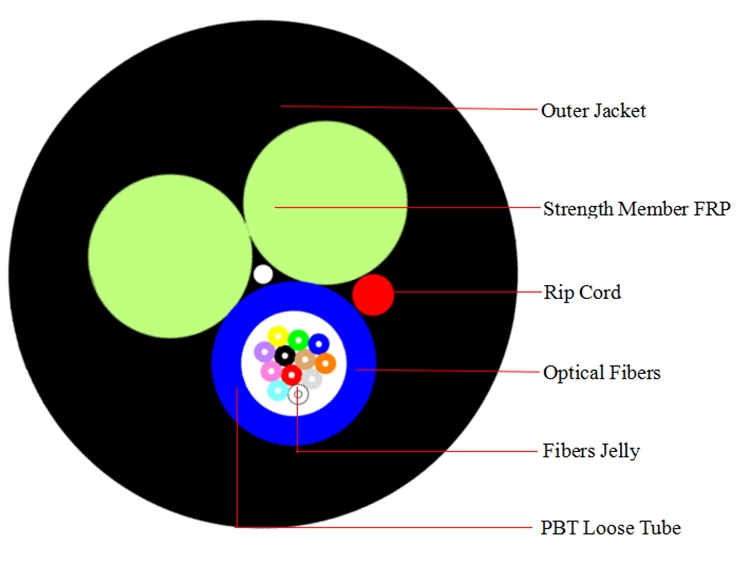

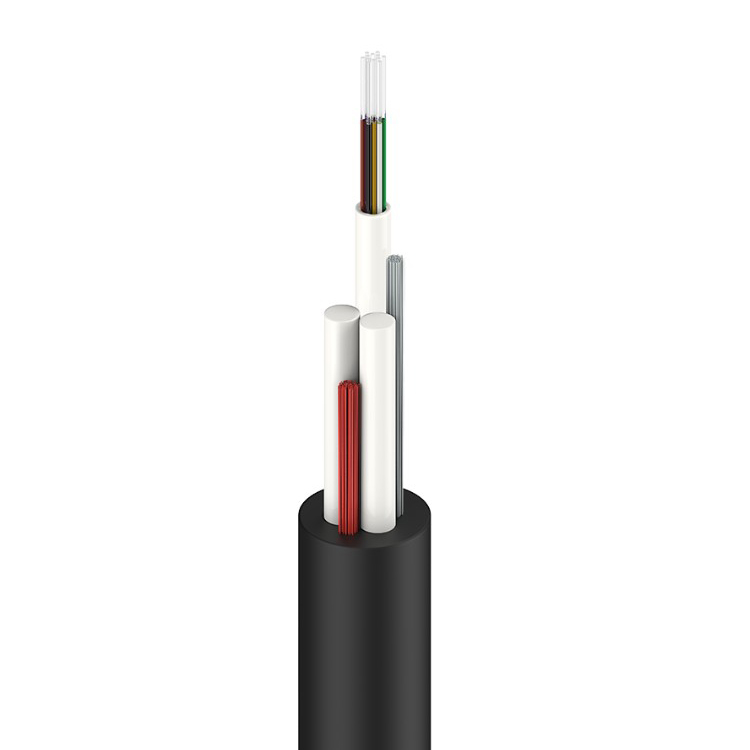

3. What is the cable's structure and construction?

It features a loose-tube design filled with water-blocking gel, FRP (Fiber Reinforced Plastic) strength members, and an HDPE outer jacket. This structure ensures excellent tensile strength, crush resistance, and weather durability.

4. What are the cable's mechanical and environmental specifications?

• Tensile strength: up to 1500 N

• Crush resistance: 2000 N/100mm

• Temperature range: −40°C to +70°C

• Bending radius: ≥10×OD (static), ≥20×OD (dynamic)




5. Where is this ADSS cable typically used?

This cable is used in outdoor aerial installations between poles or buildings, especially in environments where metallic elements are not allowed, such as near power lines. It’s suitable for FTTx, trunk, or distribution network deployments.

6. Does the cable require additional support or grounding?

No, ASU80 is a fully dielectric and self-supporting cable. It requires no metallic elements or external grounding, which simplifies installation and improves safety in high-voltage or EMI-prone environments.
