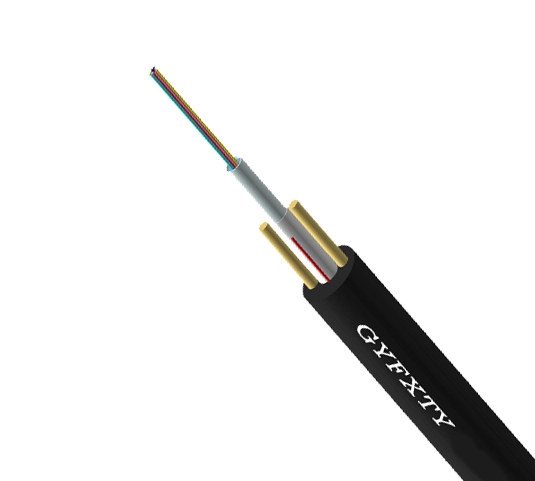

GYXTY Unarmored Fiber Optic Cable | Center Loose Tube | G.652D/G.655 | Lightweight Outdoor Cable

Packaging Requirements:

• 1：All cables shall be wound on treated wooden spools that are not returnable
• 2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps

• 3：Each spool must include:

  A protective outer layer of plastic wrapping

  Reinforcing wooden slats to ensure stability

  At least 1 meter of free cable end reserved for testing

  A standard spool length of 3000mm (with a permissible tolerance of ±2%)










  Cable Identification:




  The outer jacket must display:

  • 1、Unique sequential numbering every 1m (±1% variance permitted)
  • 2、 Additional repeating markings at 1m intervals showing:

  • Product code and fiber count

  • Manufacturer identification

  • Production date (month/year)

  • Total cable length




  Standard Packaging Dimensions:

  Length	Container	Size (L×W×H)	Net Mass	Total Mass
  2 km	Wood spool	90×75×90 cm	156 kg	220 kg
  3 km	Wood spool	100×68×100 cm	240 kg	280 kg
  4 km	Wood spool	109×75×109 cm	300 kg	368 kg
  5 km	Wood spool	129×72×129 cm	400 kg	480 kg





  Technical Reference:

  • 1、 Standard cable diameter: 10.0mm
  • 2、Maximum span distance: 100m
  • 3、Contact sales team for complete technical specifications





  Spool Marking Standards:

  Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:

  1. 1、 Company name and trademark
  2. 2、Contained cable length
  3. 3、Cable specifications (type/fiber count)
  4. 4、Winding orientation
  5. 5、Weight measurements (gross/net)

  Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.

1. What is the GYXTY fiber optic cable used for?

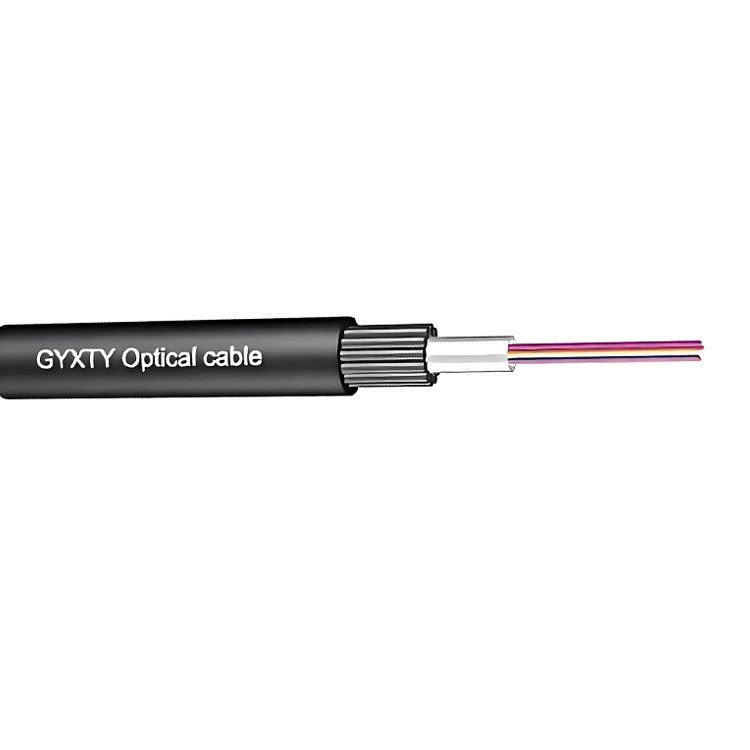

GYXTY is a lightweight unarmored fiber optic cable with a central loose tube. It's ideal for overhead or duct installations where high mechanical protection is not required.

2. What is the cable structure?

This cable consists of a single central loose tube filled with water-blocking gel and reinforced with two parallel steel wires on both sides for basic tensile strength. It has a polyethylene outer sheath for environmental protection.

3. What fiber types are supported?

The cable supports G.652D and G.655 single-mode fibers, which are widely used in access networks, telecom lines, and FTTx deployments due to their low attenuation and high transmission performance.

4. Is GYXTY suitable for aerial installation?

Yes. Thanks to its light weight and simple structure, GYXTY is suitable for short-span overhead installations, such as pole-to-pole communication in urban or rural networks.

5. What are typical applications of the GYXTY cable?

GYXTY is commonly used in:

• Aerial fiber deployments

• Conduit or duct installations

• FTTH/FTTx access networks

• Environments with minimal mechanical stress
