SC-SC UPC OS2 Fiber Patch Cord | Simplex & Duplex Riser (OFNR) Jumper

Fiber patch cables are essential for interconnecting and cross-connecting applications across data centers, telecom networks, and enterprise environments. Pre-terminated designs enable fast Plug & Play deployment, even for large-scale cabling systems....

Inquiry

Product Attributes

Port Type:Simplex , Duplex
core conunts:2 fiber,4 fiber
fiber type:Singlemode
connect type:SC UPC to SC UPC

Product Technical Parameters

Product Description

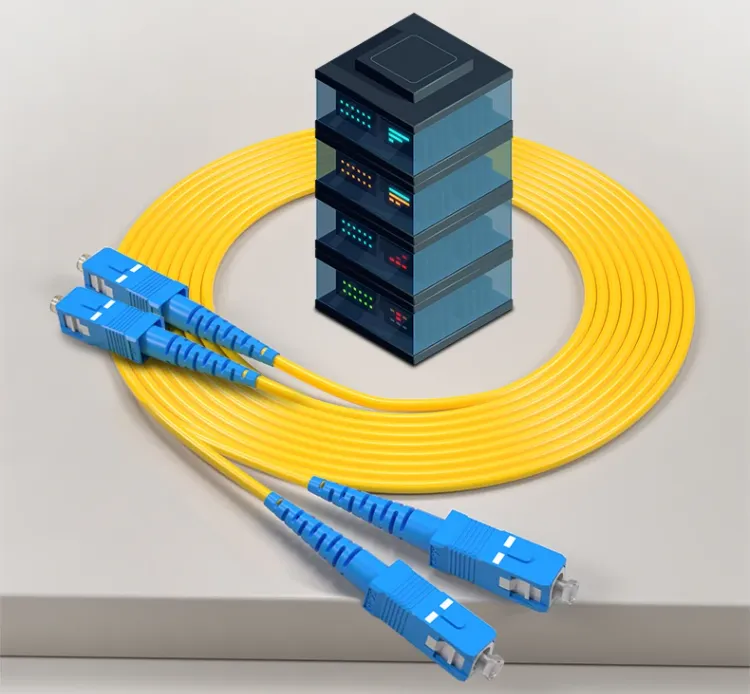

This OS2 patch cable supports high-speed Ethernet from 1G up to 400G, delivering low signal loss and high bandwidth for long-distance transmission. Its bend-insensitive design reduces attenuation when twisted or bent, ensuring easier installation, reliable performance, and simplified maintenance.

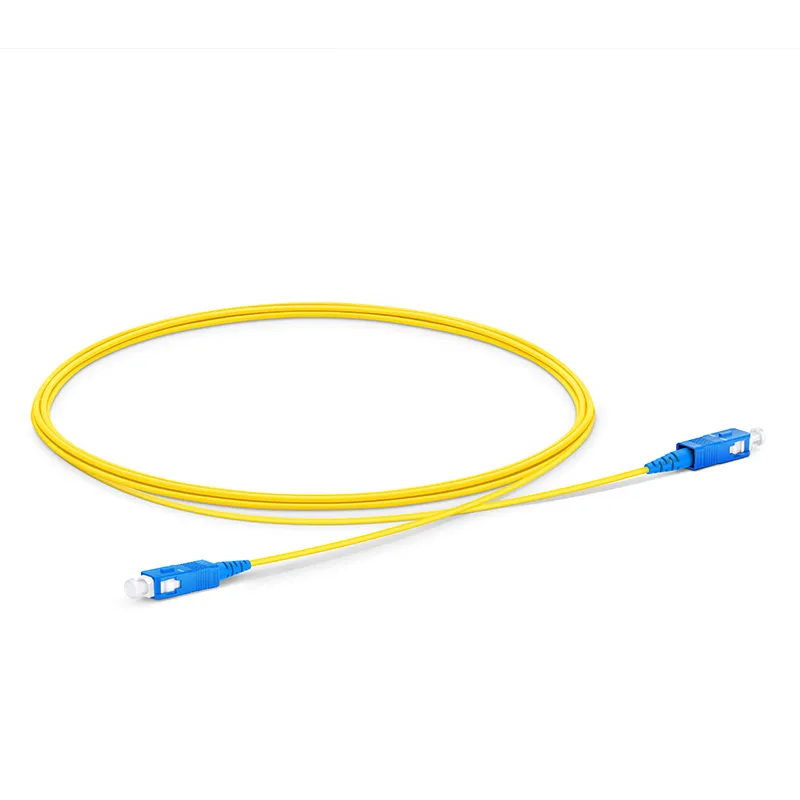

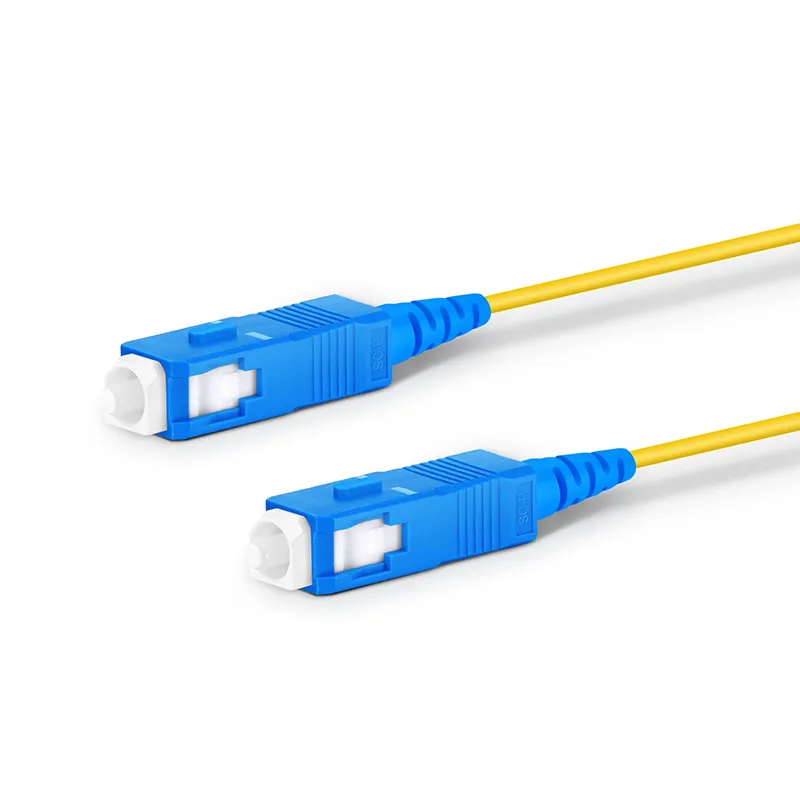

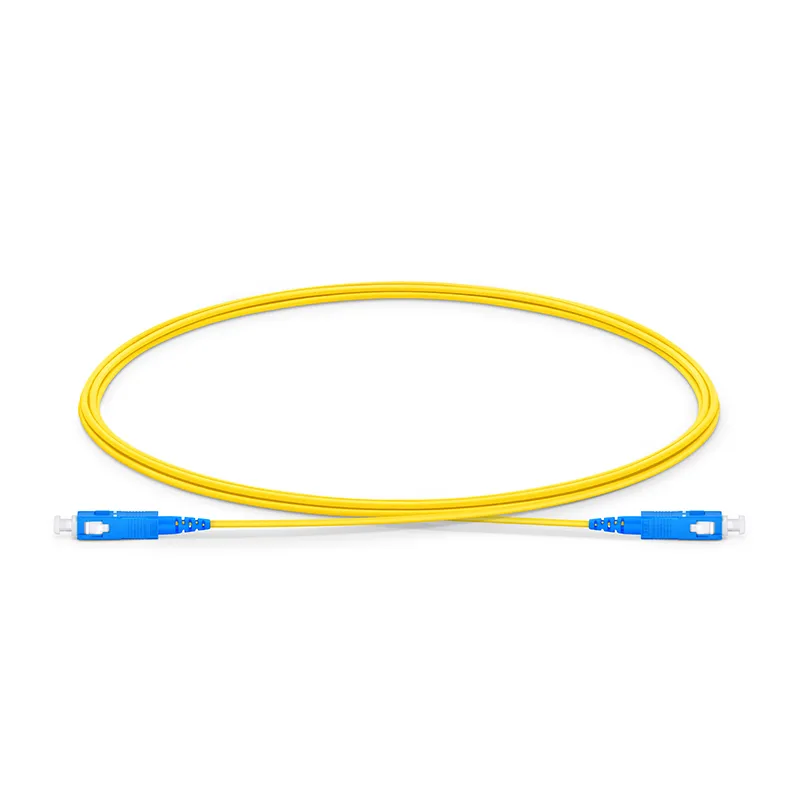

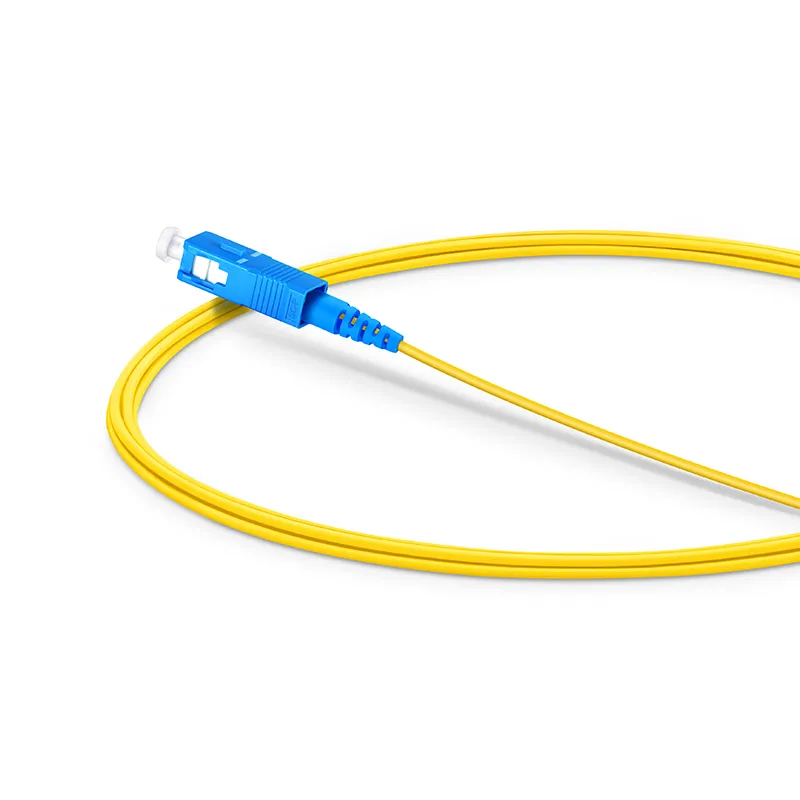

SC-SC UPC simplex

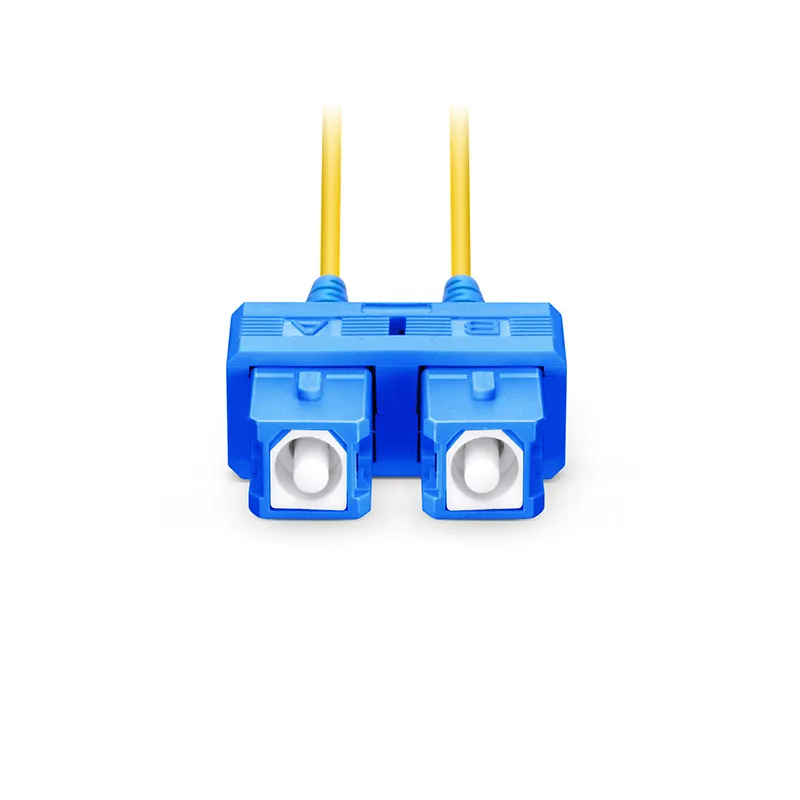

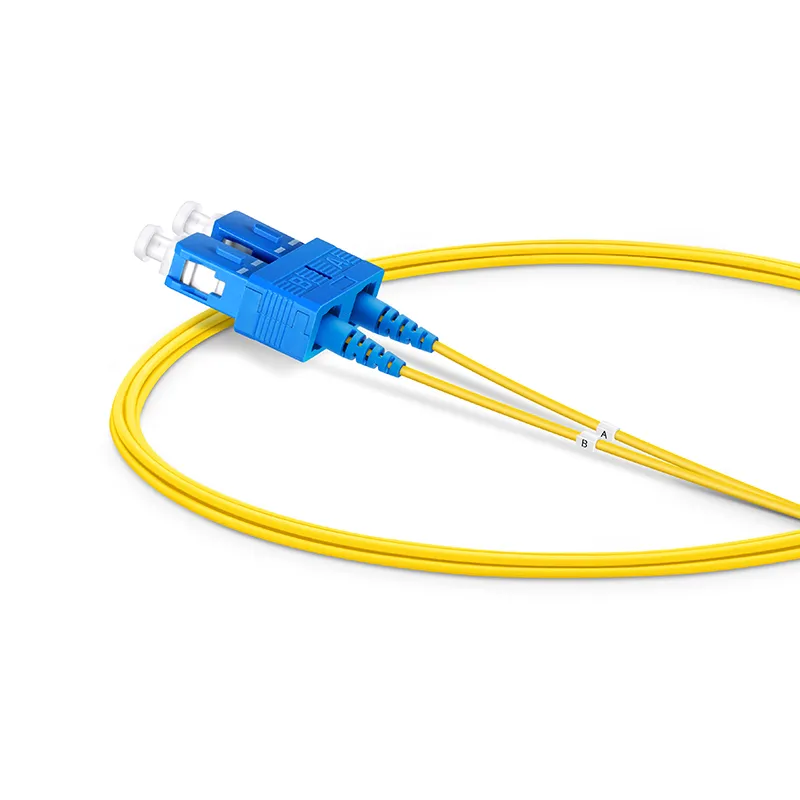

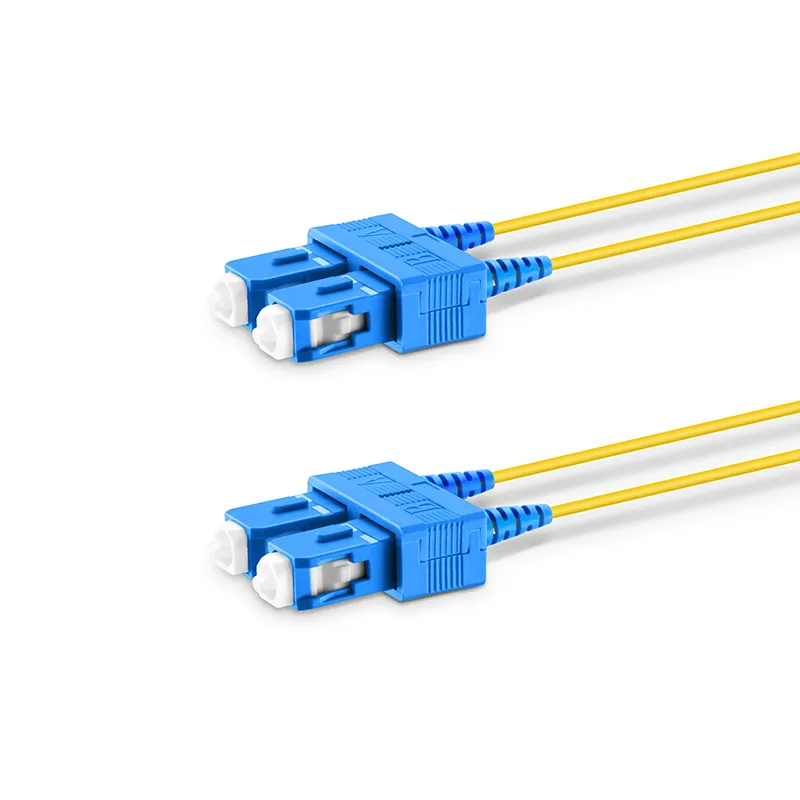

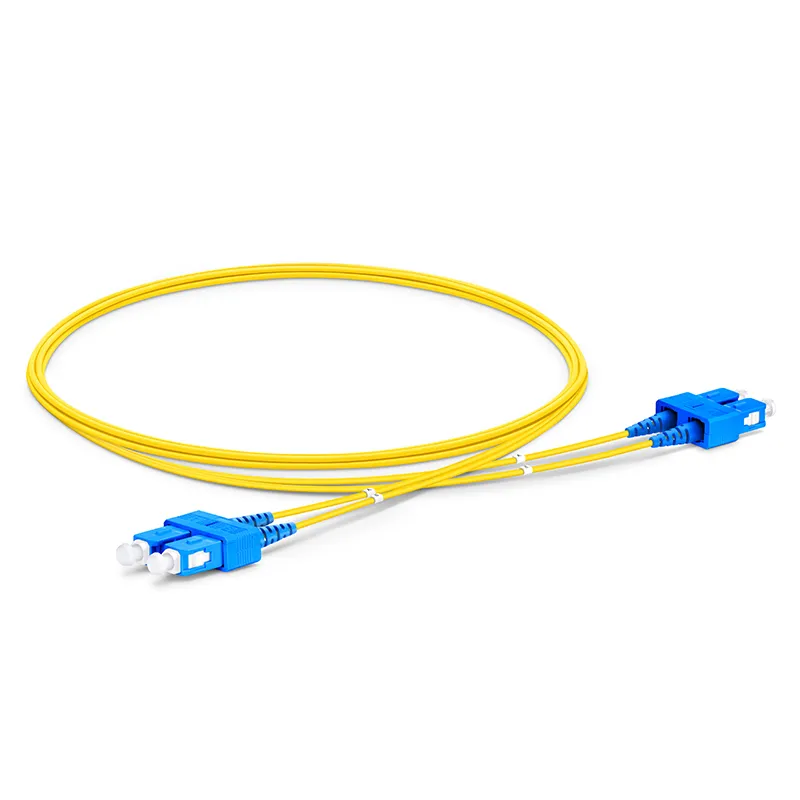

SC-SC UPC Duplex

fiber patch cord_01.jpg fiber patch cord_02.jpg fiber patch cord_03.jpg

Case

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: No keywords yet

FC-FC APC Simplex/Duplex Single mode optical fiber patch cor

LC-LC UPC Simplex/Duplex Single Mode (OS2), Riser (OFNR), 2.

Connector A	SC UPC Simplex	Connector B	SC UPC Simplex
Fiber Count	1 Fiber	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Flame Rating	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength	60/100N (Long/Short Term)
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310nm	0.4dB/km	Attenuation at 1550nm	0.3dB/km
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-20 to 70℃ (-4 to 158℉)

Connector A	SC UPC Simplex	Connector B	SC UPC Simplex
Fiber Count	2 Fiber	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Flame Rating	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength	60/100N (Long/Short Term)
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310nm	0.4dB/km	Attenuation at 1550nm	0.3dB/km
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-20 to 70℃ (-4 to 158℉)
