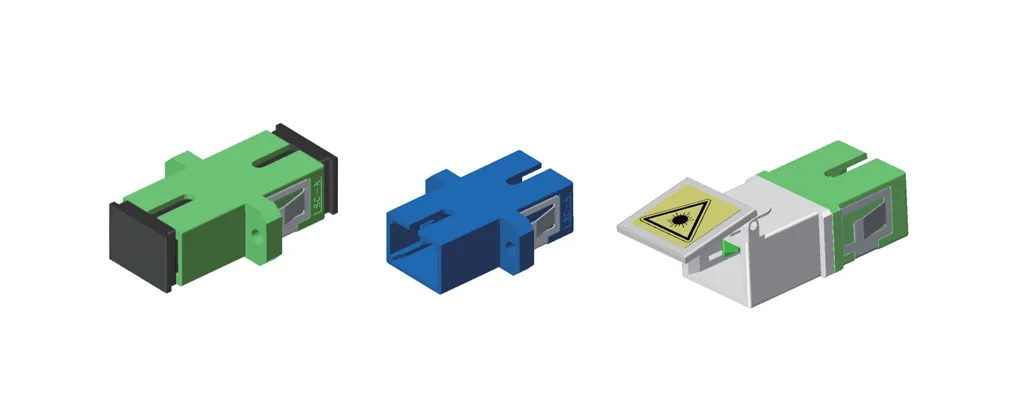

SC FC Flanş Fiber Optik Bağdaştırıcı - Hibrit SC 'den FC' ye, Tek modu, Hassas Zirkonya Kılıfı

SC FC flanş tek modlu veya çok modlu kablolar için fiber optik adaptör yazın. Hassas zirkonya kılıfı, düşük yerleştirme kaybı sağlar. SC ‘den FC‘ ye hibrit kuplör, dupleks veya simpleks türleri....
Soruşturma
Ürün Özellikleri
  • Bağdaştırıcı Tipi:SC, LC, FC, ST, E2000
  • Parlatma türü:UPC, APC
  • Bağlantı Noktası Tipi:Simplex,duplex
  • Fiber türü:Tek modlu, Çok modlu
  • Ürün modeli:SC-FC Adaptörü
Ürün Teknik Parametreleri
Ürün Açıklaması


Bu SC FC fiber optik adaptör, SC ve FC konektörlerini güvenli bir şekilde bağlamak için tasarlanmış bir flanş tipi kuplördür. Hassas zirkonya seramik hizalama manşonuna sahip tek modlu uygulamalar (G652D / G657A) için üretilmiştir, ultra düşük yerleştirme kaybı ve yüksek geri dönüş kaybı sağlar. Telekom, CATV, LAN ve FTTH sistemleri için simpleks veya dupleks tiplerinde mevcuttur.

Ana Özellikler

Hibrit SC dişi - FC dişi flanş konfigürasyonu, dupleks ve simpleks tiplerini destekler.

Hassas lif hizalama ve düşük yerleştirme kaybı için zirkonya seramik kol (< 0,2-0,3 dB).

Tek mod (G652D / G657A) ve çok modlu fiber türleri ile uyumludur.

Dayanıklı nikel IEC61754 4 ve ROHS ile uyumlu metal veya plastik gövde kaplama.

Yüksek dayanıklılık - minimum varyasyonla 1.000 'den fazla çiftleşme döngüsü.

Ürün Spesifikasyonları

Bağlayıcı Uyumluluğu

SC kadın FC kadın hibrit adaptör

Fiber Modları

Tek mod (G652D / G657A); isteğe bağlı çok modlu destek

Performans

Tipik ekleme kaybı < 0,2 dB; dönüş kaybı APC için 50 dB, UPC için 45 dB: içerik [oaicite: 4] {indeks = 4}

Mekanik Tasarım

Flanş panel veya ODF çerçeveleri için montaj adaptörü

Hassas seramik zirkonya kol hizalaması: içerik Referans [oaicite: 5] {indeks = 5}

Uygulamalar

Telekom omurgalarında ve ODF 'lerde SC / FC yaması

LAN, WAN ve CATV kurulumları

FTTH erişim sistemleri ve fiber dağıtım dolapları

Hibrit konektör sistemleri veya ekipman arayüz paneli

uygulama

  • SC-FC optical cable Adapter/ Fiber Coupler/Flange(pic1)

    Data-processing-networks

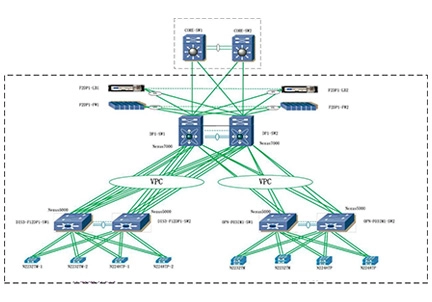

  • SC-FC optical cable Adapter/ Fiber Coupler/Flange(pic2)

    Yerel alan ağları

  • SC-FC optical cable Adapter/ Fiber Coupler/Flange(pic3)

    Fiber-optic-communications

    Fiber Optic Equipment

Case

Fiber Optik Bağlantı içinApplication

Bağdaştırıcı, sunucu raflarında, yama panellerinde, optik dağıtım çerçevesinde (ODF), CATV 'de, optik fiber geniş bant erişim ağında vb.
