Custom 1x4 PLC Fiber Splitter - SC/LC/FC/ST Connectors (UPC/APC) | ABS Module

Product Overview

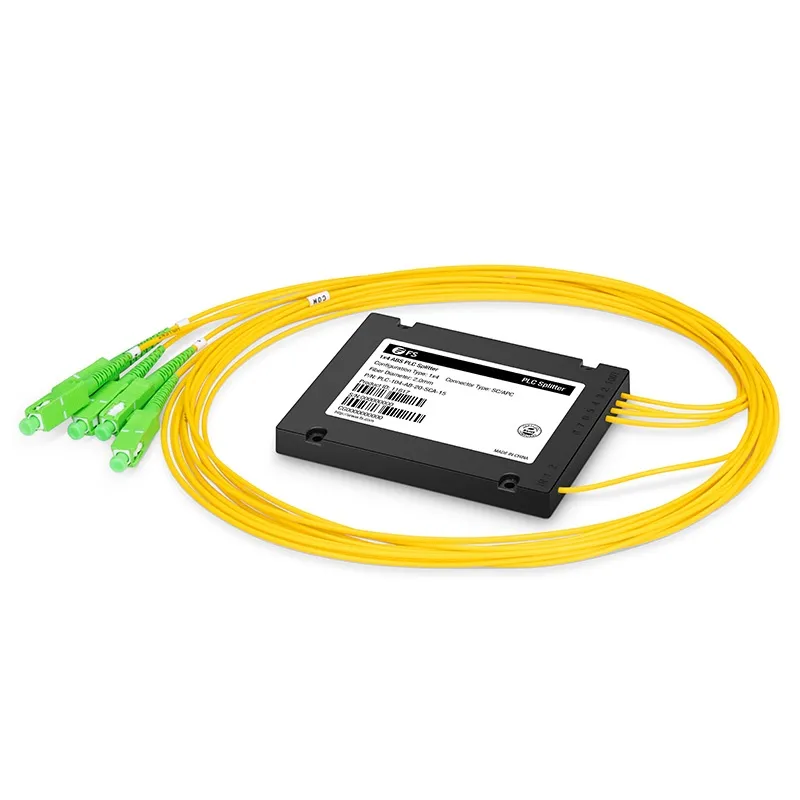

Our customizable 1x4 PLC Fiber Optic Splitter features a durable ABS enclosure with multiple connector options. Available with your choice of SC, LC, FC, or ST connectors in either UPC or APC polish, combined with 2.0mm pigtail cables for flexible deployment in various network environments.

Key Features

Connector Customization: Choose from SC/LC/FC/ST connectors with UPC or APC polish

Precision Splitting: PLC technology ensures uniform 1×4 splitting ratio

Optimized Performance: Low insertion loss (≤7.2dB) and PDL (≤0.3dB)

Robust Housing: ABS enclosure provides dust/water resistance

Wide Compatibility: 1260~1650nm wavelength range on single-mode fiber

Standard Configuration

Default Connector: SC/APC (blue angled)

Pigtail Cable: 2.0mm diameter (length customizable)

Split Ratio: 1×4

Insertion Loss: ≤7.2dB

Uniformity: ≤1.5dB

Available Customizations

Connector Types

• SC (subscriber connector)

• LC (lucent connector)

• FC (ferrule connector)

• ST (straight tip)

Polish Types

• UPC (ultra physical contact)

• APC (angled physical contact)

Pigtail Options

• Cable diameter: 2.0mm or 3.0mm

• Length: Custom lengths available

Applications

FTTH deployments requiring specific connector types

PON networks needing mixed connector configurations

Data center interconnections with LC/APC requirements

Telecom infrastructure upgrades with existing connector standards

Why Our Custom Splitters?

Precision-engineered to match your exact network requirements

Same-day configuration for most standard connector combinations

Rigorous testing ensures performance meets Telcordia GR-1209-CORE standards

Bulk order discounts available for large deployments
