Armored Fiber Patch Cable | Single-Mode & Multimode | Robust Indoor Protection

Armored fiber patch cables are engineered for high-reliability indoor applications where mechanical protection is critical. These cables incorporate a durable metal or composite armor layer beneath the outer jacket to resist crushing, rodent damage, and rough handling. Available in both single-mode (LSZH jacket) and multimode (OM1–OM5) variants, with standard LC, SC, FC, and ST connectors for flexible integration into network infrastructure.

Why Choose Our Armored Patch Cables

Durable Protection: Built-in armor safeguards fibers against bending, crushing, and rodents while maintaining flexibility in indoor paths.

High Optical Integrity: Precision connector polish ensures low insertion loss and high return loss performance.

Safety-Rated Jackets: Offered in LSZH for low-smoke environments, with optional OFNR/OFNP for riser or plenum rated spaces.

Flexible Fiber Choices: Single-mode with LSZH jacket, OM1–OM5 multimode options help meet diverse bandwidth and distance needs.

OEM/ODM Customization: Customize connector type, length, fiber count, labeling, jacket color, and packaging to support specific project workflows.

Product Configurations

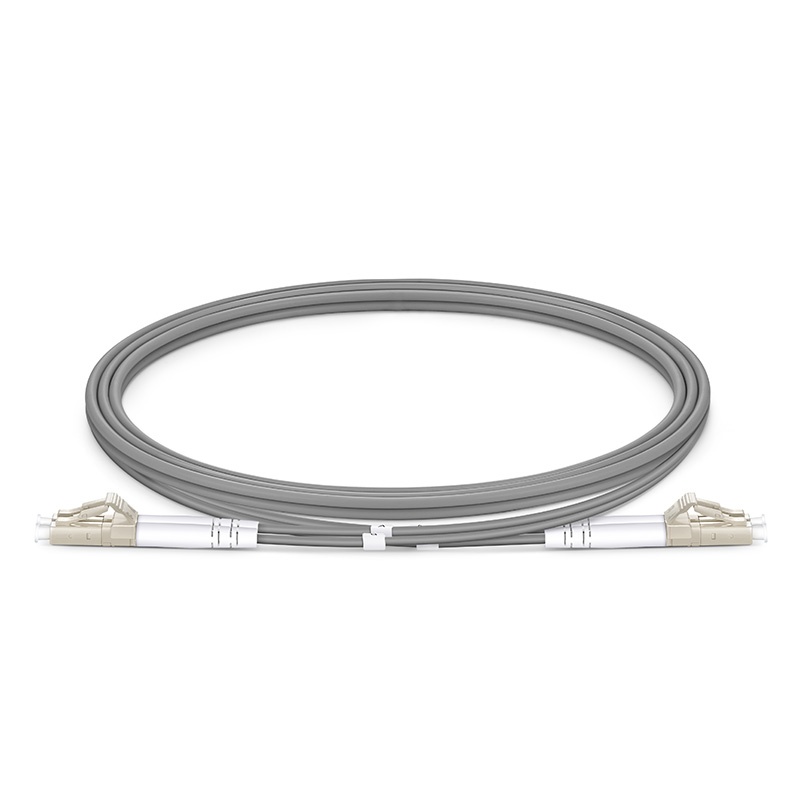

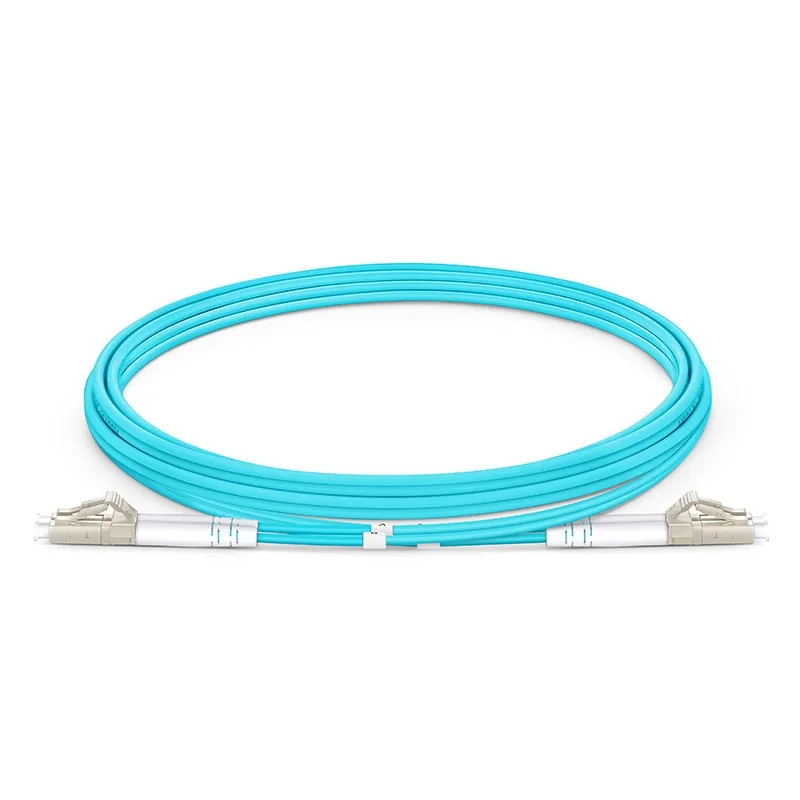

Multimode Armored Patch Cords (OM1–OM5)

Available in legacy OM1, OM2 or high-performance OM3, OM4, OM5 grades with LC, SC, FC, or ST connectors. Ideal for backbone and equipment interconnects requiring high mechanical resilience.

Typical Use Cases: Retrofit cabling, patch fields in high-traffic zones, industrial LAN setups.

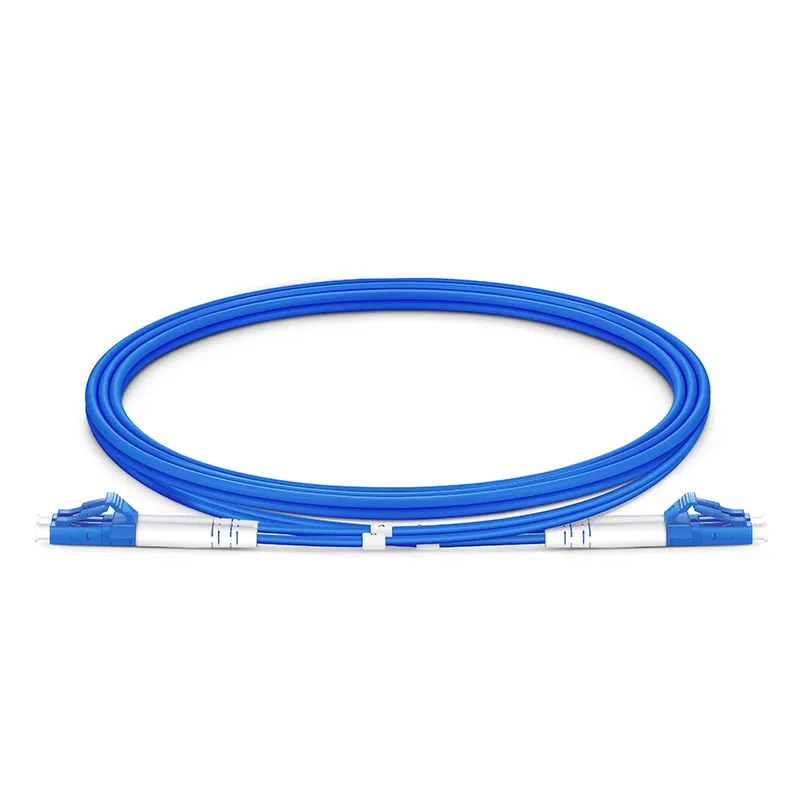

Single-Mode Armored Jumpers (LSZH Jacket)

Tightly armored single-mode cables with LSZH outer jacket for code-compliant installations in low-smoke environments.

Typical Use Cases: Critical link protection in telecom rooms, hospitals, building risers.

Specifications Overview

Fibers: Single-mode (G.652D/G.657) with LSZH; Multimode OM1–OM5 with flexible jacket options.

Connector Types: LC, SC, FC, ST with UPC or APC polish (single-mode); UPC for multimode.

Armor Options: Lightweight metal or composite armor beneath the jacket for rugged defense.

Insertion Loss: Typically ≤ 0.3 dB for standard grades; low-loss options available.

Return Loss: UPC ≥ 50 dB; APC ≥ 60 dB in single-mode variants.

Jacket Ratings: LSZH standard; OFNR (riser) and OFNP (plenum) available on request.

Operating Range: −20 °C to +70 °C for general use; consult for extended-range specs.

Quality Assurance: Each cable tested for optical performance with optional serial-numbered test reports.

Selection Guide

Indoor Shared Pathways: Use armored multimode patch cords for enhanced longevity in corridors or pull-through conduits.

Code-Compliant Builds: Choose LSZH single-mode armored cables in low-smoke environments; upgrade to OFNR/OFNP for fire-rated areas.

High-Density Cabinets: Armored jumpers protect fibers from rack-side abrasion and cable management stress.

Industrial Sites: Metal armor helps resist tool impact, accidental tugging, or harsh environmental conditions.

Customization & Services

Customize connectors, polish types, cable length, labeling, and jacket colors to align with installations or branding requirements.

Fast production capability: stock availability for standard versions, quick-turn for custom units, and staged bulk delivery options.

Engineering support provided for cable layout planning, physical routing path analysis, and BOM integration.

Ordering Information

When requesting a quote, please specify: Fiber type (single-mode or multimode + OM grade), jacket rating (LSZH/OFNR/OFNP), connector type and polish, cable length, armor type (metal/composite), labeling needs, and packaging preferences.

FAQ

Q1: Do armored patch cables still maintain flexibility?

Yes. Our armor design balances protection and flexibility, ensuring they remain easy to route through cabinets and conduits.

Q2: Sample available?

YES!

Q3: Can I get test reports for these cables?

Yes. Optical test data—including insertion and return loss—can be packaged by serial number and linked to your order for traceability.

Q4: Are armored cables heavier than regular jumpers?

Slightly, due to added protective layers. However, we design them to minimize weight while still delivering critical mechanical enhancements.

Q5: What polishes are available on single-mode armored cables?

Both UPC and APC polishes are supported; choose based on your network’s sensitivity to back reflections and connector type.

Q6: What is the typical lead time for custom armored patch cables?

Standard products ship quickly from inventory. Custom-built cables typically ship within 1–2 weeks, and timed batch deliveries can be arranged for rollout coordination.

Request a Quote

Request Your Quote or connect with our specialists to plan your armored patch cable needs, BOM, and deployment strategy.
