Product Technical Parameters
| G.652 | G.655 | 50 / 125μm | 62.5/125 μm |
| Attenuation (+20℃) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
| Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
| @1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
|
|
| Storage/Operating temperature | -40℃ ~+70℃ |
Technical parameters
| Model | Fiber cores | Tubes | Diameter(mm) | Weight(kgs) | Tensile(N) | Crush(N) | Bending radius |
|
|
|
|
| Long term | Short term | Long term | Short term | Static/ Dynamic |
| GYTA-12 ~ 36F | 12~36 | 2~6 | 9.2 | 80 | 800 | 1500 | 300 | 1000 | 10D/20D |
| GYTA-38 ~ 72F | 38~72 | 2~6 | 10.5 | 80 | 1000 | 3000 | 300 | 1000 | 10D/20D |
| GYTA-74 ~ 96F | 74~96 | 7~8 | 13.2 | 125 | 1500 | 3000 | 300 | 1000 | 10D/20D |
| GYTA-98 ~ 120F | 98~120 | 9~10 | 14.6 | 180 | 1800 | 3000 | 300 | 1000 | 10D/20D |
| GYTA-122 ~ 144F | 122~144 | 11~12 | 16.5 | 220 | 2000 | 3000 | 300 | 1000 | 10D/20D |
Product Description

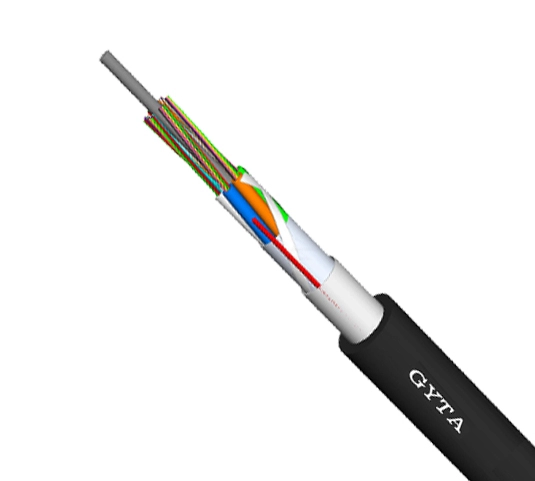

GYTA Stranded Loose Tube Light Armored fiber optic cable G652D description

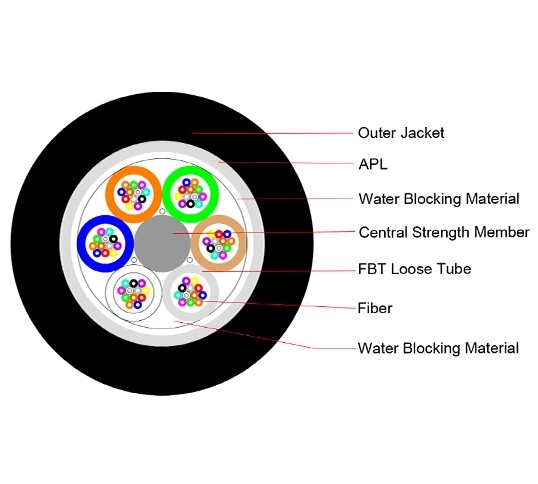

The GYTA cable places a 250 μm fiber in a loose sleeve made of high modulus plastic. The sleeve is filled with waterproof filler, and there is a steel wire in the center as a metal reinforcement. For high-core cables, PE is sometimes coated. The sleeve and filler are twisted around the reinforcement to form a compact round cable core. The cable core is covered with a layer of APL and filled with waterproof filler to prevent water from penetrating. Finally, the cable is completed with a PE jacket.
Product Features of GYTA Stranded Loose Tube Light armored fiber optic cable G652D
Good mechanical properties, good high temperature resistance
High-strength loose casing, resistant to hydrolysis
Special casing fillers play a key role in protecting optical fibers
Specially designed compact structure prevents loose casing shrinkage
Excellent PE sheath protects fiber optic cable from UV radiation
Aluminum polyethylene laminate as a moisture barrier
Application:
Pipes, overhead.
Packaging Requirements:
- 1：All cables shall be wound on treated wooden spools that are not returnable
- 2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
- 3：Each spool must include:
A protective outer layer of plastic wrapping
Reinforcing wooden slats to ensure stability
At least 1 meter of free cable end reserved for testing
A standard spool length of 3000mm (with a permissible tolerance of ±2%)
Cable Identification:
The outer jacket must display:
- 1、Unique sequential numbering every 1m (±1% variance permitted)
2、 Additional repeating markings at 1m intervals showing:
Product code and fiber count
Manufacturer identification
Production date (month/year)
Total cable length
Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
- 1、 Standard cable diameter: 10.0mm
- 2、Maximum span distance: 100m
- 3、Contact sales team for complete technical specifications
Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
- 1、 Company name and trademark
- 2、Contained cable length
- 3、Cable specifications (type/fiber count)
- 4、Winding orientation
- 5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Case
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
+
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
+
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
+
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
+
Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop
Q1: What does “GYTA” stand for?
GYTA denotes a stranded loose-tube cable with aluminum-polyethylene laminate (APL) armor—lightweight, rust-resistant, and ideal for duct/aerial deployment.
Q2: Can this cable resist moisture and corrosion?
Yes—the aluminum armor provides superior corrosion resistance, and the water-blocking loose-tube structure ensures strong moisture protection.
Q3: What fiber types are available?
Supports both G.652D and G.655 fiber variants, ensuring excellent low-loss, long-distance transmission.
Q4: What environmental conditions can it withstand?
Built for rugged use: crush-resistant, UV-stable, and operational between −40 °C and +70 °C.
Q5: Where is GYTA most commonly deployed?
Ideal for duct and aerial telecom deployments—including FTTH, enterprise networks, and industrial use—especially where moisture resistance is critical.
