Product Technical Parameters
| G.652 | G.657 |
| Attenuation | @1310nm | ≤0.45 dB/km | ≤0.45 dB/km |
| @1550nm | ≤0.30 dB/km | ≤0.30dB/km |
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
| Storage/Operating temperature | -20℃ ~+60℃
|
| Model | Connection Structure | Material Shape | Allowable Lateral Pressure |
|---|
| Model: | GYXTC8S | Figure 8 | >1000(N/100mm) |
| Connection Structure: | N/M |
|
|
| Material Shape: | Figure 8 |
|
|
| Allowable Lateral Pressure: | >1000(N/100mm) |
|
|
| Allowable Tensile Strength: | 1000N<10000N |
|
|
| Core: | Multicore |
|
|
| Certification: | RoHS, CE, ISO9001 |
|
|
| Brand: | OEM |
|
|
| Sheath Material: | PE |
|
|

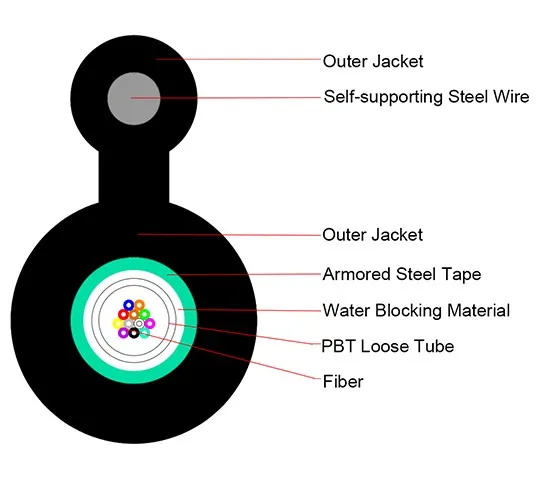

| Structure: | Central Loose Tube |
|
|
| Sheath Color: | Black |
|
|
| Applications: | Aerial Access Cable, FTTH |
|
|
| Fiber Counts: | 2-12 Core |
|
|
| Fiber Type: | SM, MM |
|
|
| Armor: | Corrugated Steel Tape |
|
|
| Water-Blocking Material: | Cable Filling Compound |
|
|
| Transport Package: | Wooden Drum / Plywood Drum |
|
|
| Specification: | Customized |
|
|
| Trademark: | yrtfiber |
|
|
| Origin: | China |
|
|
| HS Code: | 85447000 |
|
|
| Production Capacity: | 35000km/Year |
|
|
Product Description

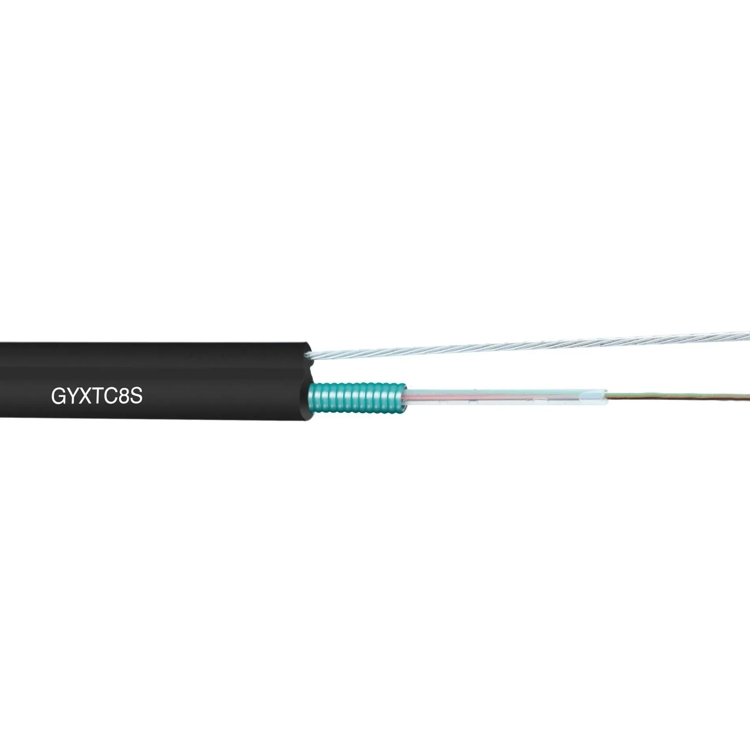

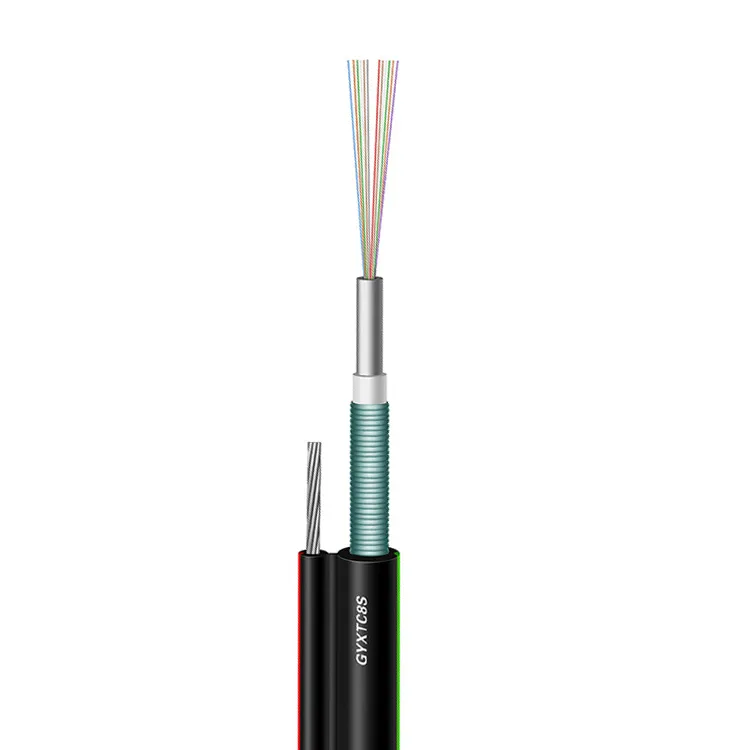

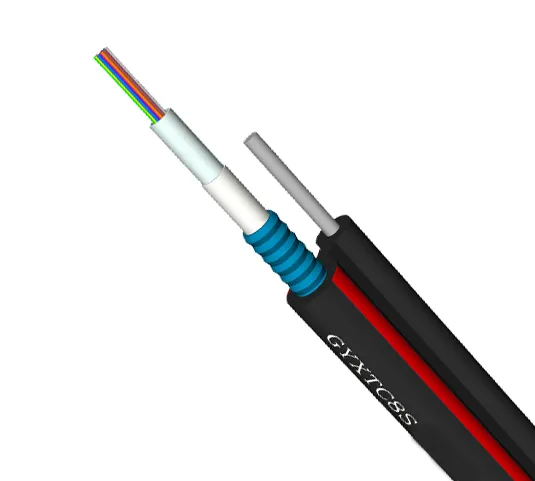

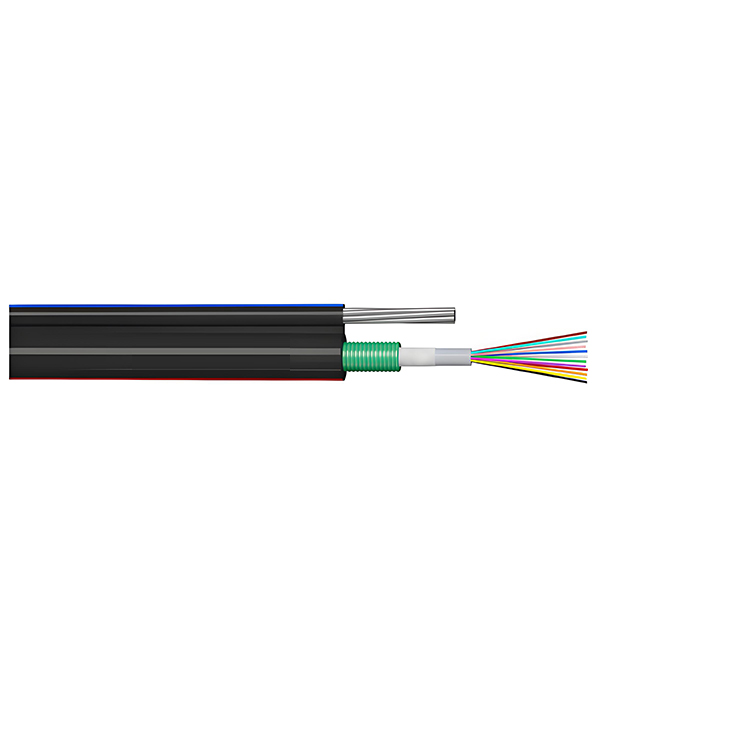

The GYXTC8S 2-24 Cores G652D/G657 Self-Supporting Fig 8 Aerial Outdoor fiber optic cable is designed for high-performance, long-distance communication in outdoor environments. Featuring 24 cores with G652D/G657 fibers, it ensures low attenuation and excellent bending resistance, making it ideal for aerial installations. The figure-8 self-supporting design in tegrates a steel messenger wire for easy deployment and enhanced durability against harsh weather conditions. This cable is built to withstand UV resistance, moisture, and mechanical stress, ensuring reliable data transmission for telecom networks, FTTH, and other outdoor fiber optic applications.
Key Features:
✔ 24-core G652D/G657 fibers for high bandwidth
✔ Self-supporting figure-8 structure with steel reinforcement
✔ Aerial installation, suitable for outdoor use
✔ UV-resistant, waterproof, and durable
✔ Low attenuation and superior bending performance
Ideal for telecommunications, broadband networks, and aerial fiber optic infrastructure.
Packaging Requirements:
- 1：All cables shall be wound on treated wooden spools that are not returnable
- 2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
- 3：Each spool must include:
- 1、 Protective plastic wrapping layer
- 2、 Reinforcing wooden slats for stability
- 3、 Minimum 1m of free cable end for testing purposes
- 4、 Standard spool length: 3000mm (±2% tolerance allowed)
Cable Identification:
The outer jacket must display:
- 1、Unique sequential numbering every 1m (±1% variance permitted)
- 2、 Additional repeating markings at 1m intervals showing:
- 1、 Product code and fiber count
- 2、 Manufacturer identification
- 3、 Production date (month/year)
- 4、Total cable length
Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
- 1、 Standard cable diameter: 10.0mm
- 2、Maximum span distance: 100m
- 3、Contact sales team for complete technical specifications
Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
- 1、 Company name and trademark
- 2、Contained cable length
- 3、Cable specifications (type/fiber count)
- 4、Winding orientation
- 5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Case
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
+
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
+
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
+
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
+
Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop
Q: Can you provide samples?
A: Yes, we can provide samples of a certain value.
Q: When can the sample order be delivered?
A: Usually within 7 days after confirmation.
Q: What is the delivery time for bulk orders?
A: Usually it is 15-20 days from the date of order placement, but it also depends on the quantity of the order. You need to confirm the specific delivery time with the sales manager.
