Product Technical Parameters
Optical properties:
| G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|
| Attenuation (+ 20 ℃) | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km |
| @1310nm | ≤0.36dB/km |
|
|
|
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
|
| Bandwidth (Class A) | @850 |
|
| ≥500MHZ·km | ≥500MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km |
| numerical aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable cutoff wavelength |
| ≤1260nm | ≤1480nm |
|
|
Structural parameters:
| Cable Type | Fiber Count | Cable diameter (mm) | weight (Kg/km) | Allowable tensile force(N) | Allowable crushing force (N/100m) | Bending radius (mm) static/dynamic |
|---|
| MGXTSWV-2～12 | 2～12 | 11 | 130 | 500/1000 | 500/1500 | 15D/30D |
Product Description

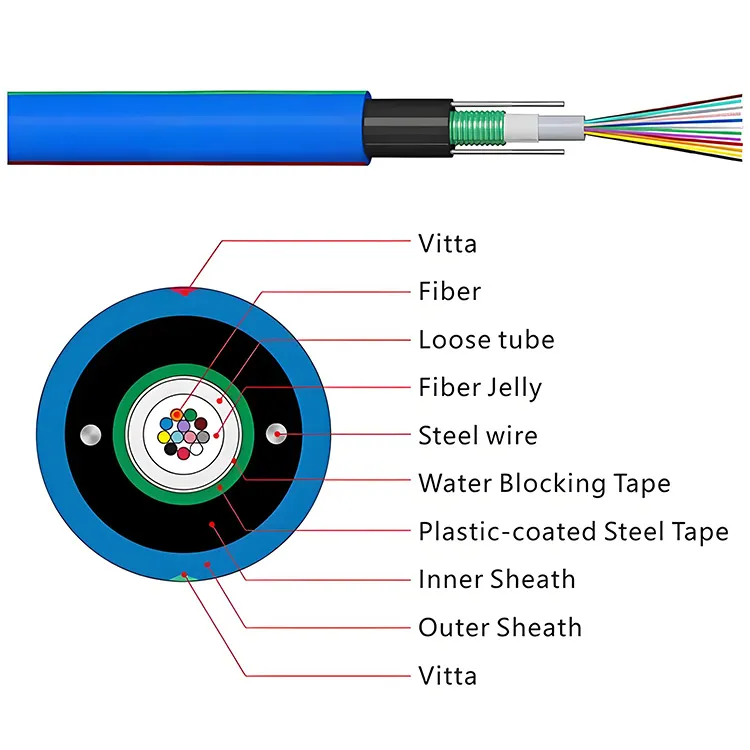

The structure of MGXTWV optical cable is to put 250 μm optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The loose tube is vertically wrapped with a layer of double-sided plastic-coated steel strip (PSP), and water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water-blocking of the optical cable. Two parallel steel wires are placed on both sides to extrude the polyethylene inner sheath, and then a layer of polyethylene outer sheath is squeezed outside the inner sheath to form a cable.
Product features:
Standard:
The MGXTWV cable follows MT386-1995 Test Methods and Judgment Rules for Flame Retardancy of Flame Retardant Cables for Coal Mines.
Packaging Requirements:
- 1：All cables shall be wound on treated wooden spools that are not returnable
- 2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
- 3：Each spool must include:
- 1、 Protective plastic wrapping layer
- 2、 Reinforcing wooden slats for stability
- 3、 Minimum 1m of free cable end for testing purposes
- 4、 Standard spool length: 3000mm (±2% tolerance allowed)
Cable Identification:
The outer jacket must display:
- 1、Unique sequential numbering every 1m (±1% variance permitted)
- 2、 Additional repeating markings at 1m intervals showing:
- 1、 Product code and fiber count
- 2、 Manufacturer identification
- 3、 Production date (month/year)
- 4、Total cable length

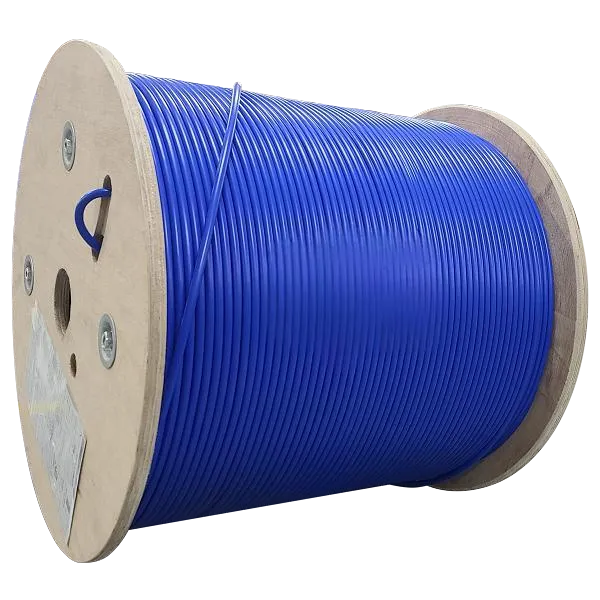

Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
- 1、 Standard cable diameter: 10.0mm
- 2、Maximum span distance: 100m
- 3、Contact sales team for complete technical specifications
Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
- 1、 Company name and trademark
- 2、Contained cable length
- 3、Cable specifications (type/fiber count)
- 4、Winding orientation
- 5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Case
Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support
+
Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey
+
Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia
+
Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber
+
Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop
Is MGXTSWV suitable for mining environments?
Yes. The armored design and UV-resistant PE jacket make it ideal for tunnels and mining corridors where crush and rodent risks are high.
What fiber type is used?
OM2 50/125 μm multimode fiber compliant with ISO/IEC 11801 and ITU-T G.651.1. If you need singlemode, we can customize.
What core counts are available?
High-density builds from 244 to 288 cores. Other counts can be produced on request.
Can I get OEM printing and packaging?
Yes, we support OEM/ODM for sheath printing, color, and packing labels.
What’s the operating temperature?
Typical range is -40°C to +70°C for outdoor deployment.
