Многомодовый оптоволоконный соединительный кабель OM1 / MMF

Многомодовые оптоволоконные патч-корды OM1 в симплексной и дуплексной конфигурации с разъемами LC, SC, FC, ST. Идеально подходят для 1G / 10G Ethernet и передачи данных на короткие расстояния....
Запрос
Атрибуты продукта
  • Тип разъема:ЛК / СК / СТ / ФК, АПК / УПК
  • Тип порта:Simplex,duplex
  • Наружная куртка:ЛСЖ / ПВК
  • Количество сердечников волокна:2 волокна
  • Модель продукта:ОМ1
Технические параметры продукта
Описание продукта

Многомодовые оптоволоконные патч-корды OM1, также известные как соединительные кабели MMF, предназначены для недорогой оптической передачи на короткие расстояния. Доступные в симплексной и дуплексной версиях, эти патч-корды идеально подходят для 1G Ethernet и других оптоволоконных приложений в локальных сетях (LAN) и центрах обработки данных.

Основные особенности

• Многомодовое волокно OM1 62.5/125мкм для надежной передачи данных.

• Совместим с разъемами LC, SC, FC и ST (полировка UPC).

• Доступен в симплексных и дуплексных конфигурациях для гибких установок.

• Низкая вносимая потеря и высокая возвращаемая потеря для улучшения качества сигнала.

• Варианты курток: LSZH, PVC, OFNP для различных экологических потребностей.

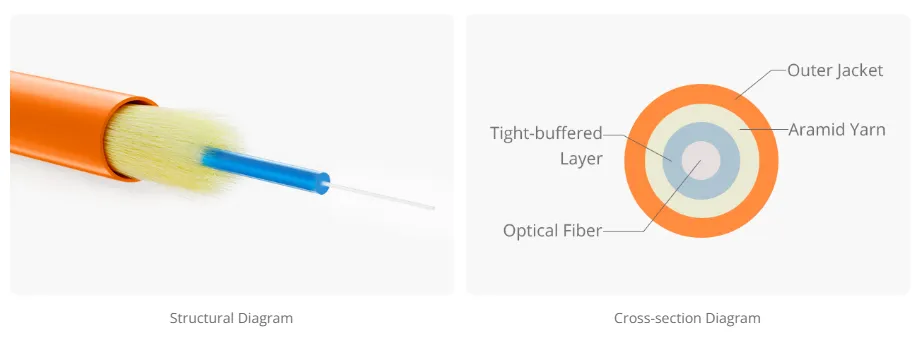

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第1张

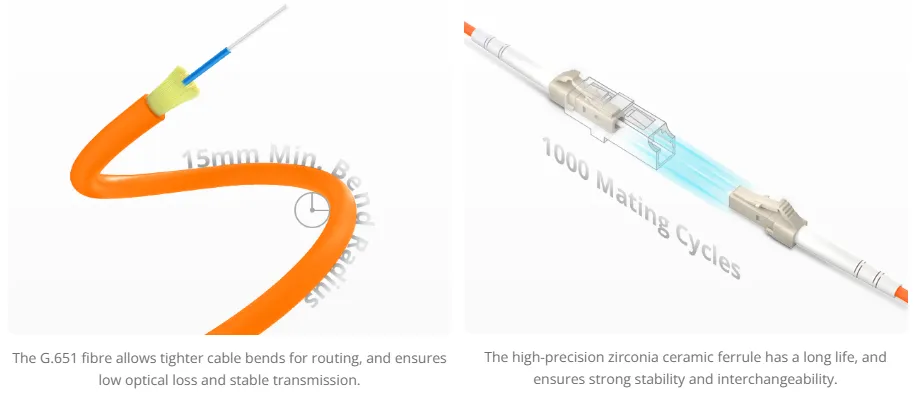

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第2张

Спецификации продукта

Тип волокна

• Многомодовое волокно OM1 ( 62.5/125 мкм)

Типы соединителей

• ЛК / ЛК, СК / СК, ФК / ФК, СТ / СТ (полировка УПК)

Структура

• Симплекс или дуплекс

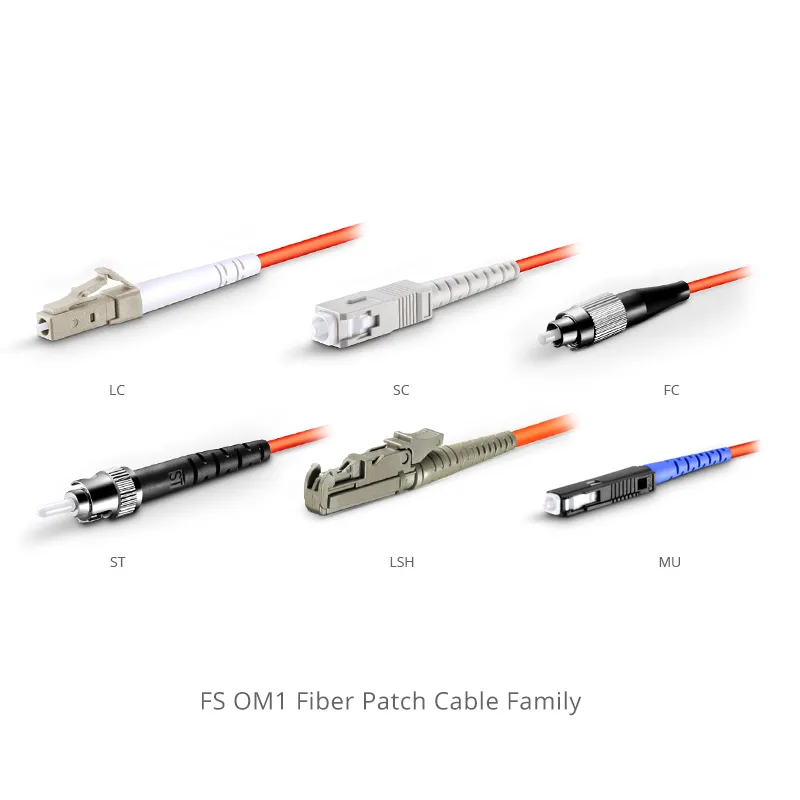

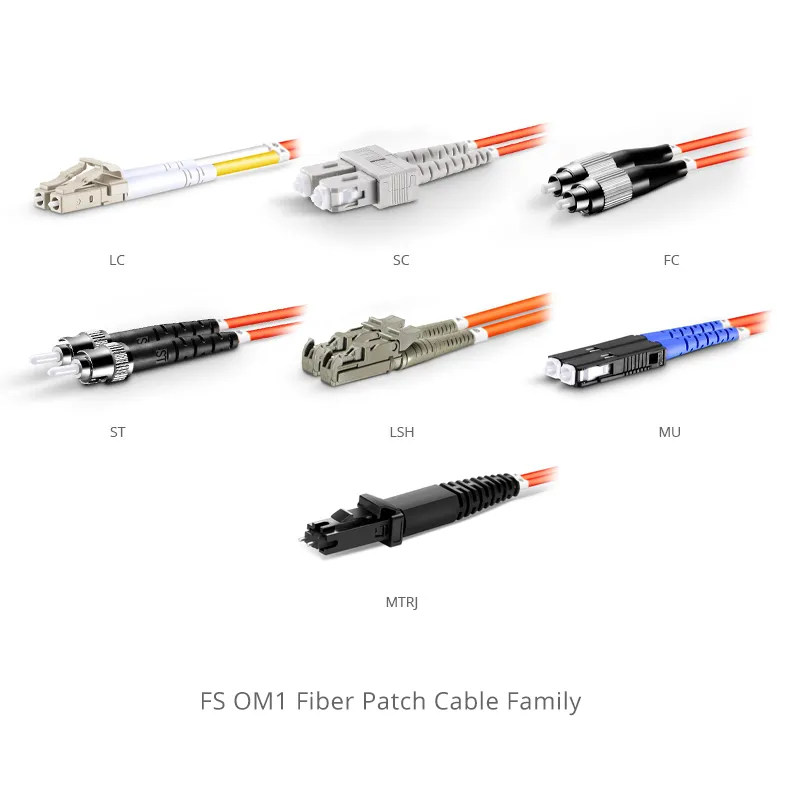

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第3张    Многомодовый оптоволоконный соединительный кабель OM1 / MMF第4张

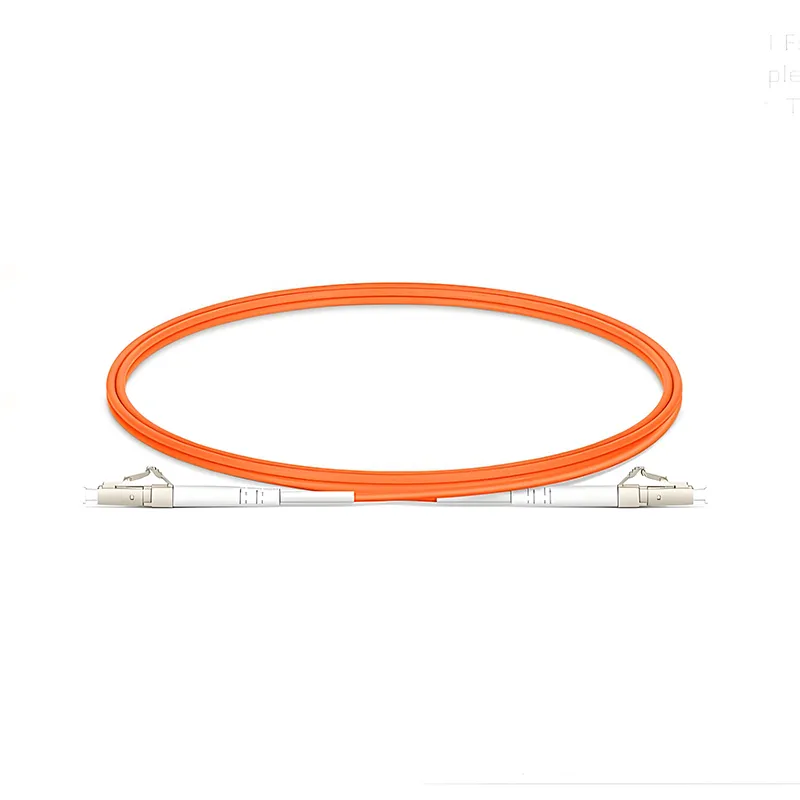

Simplex

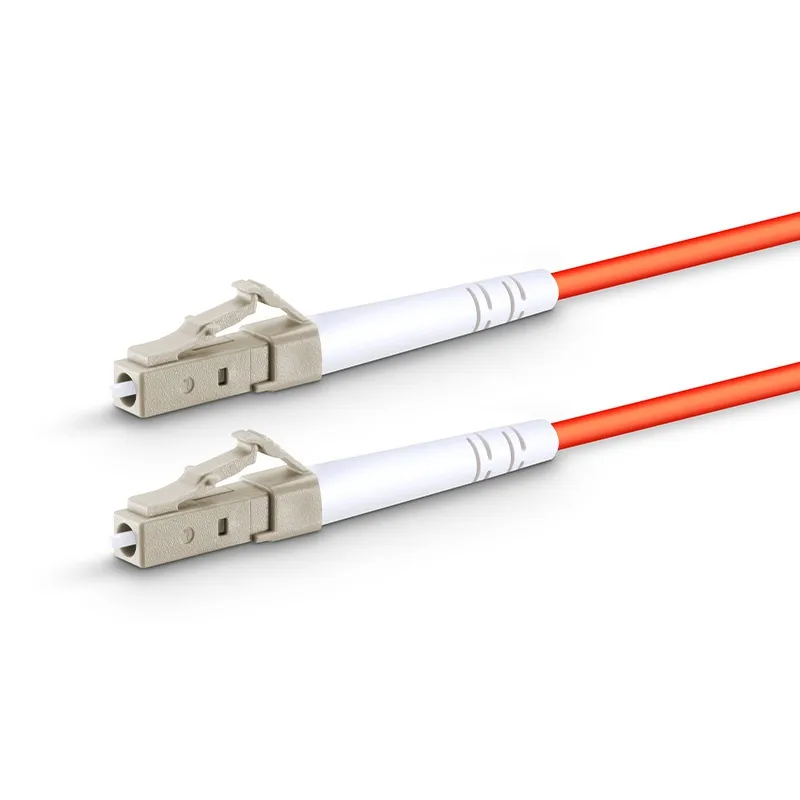

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第5张    Многомодовый оптоволоконный соединительный кабель OM1 / MMF第6张

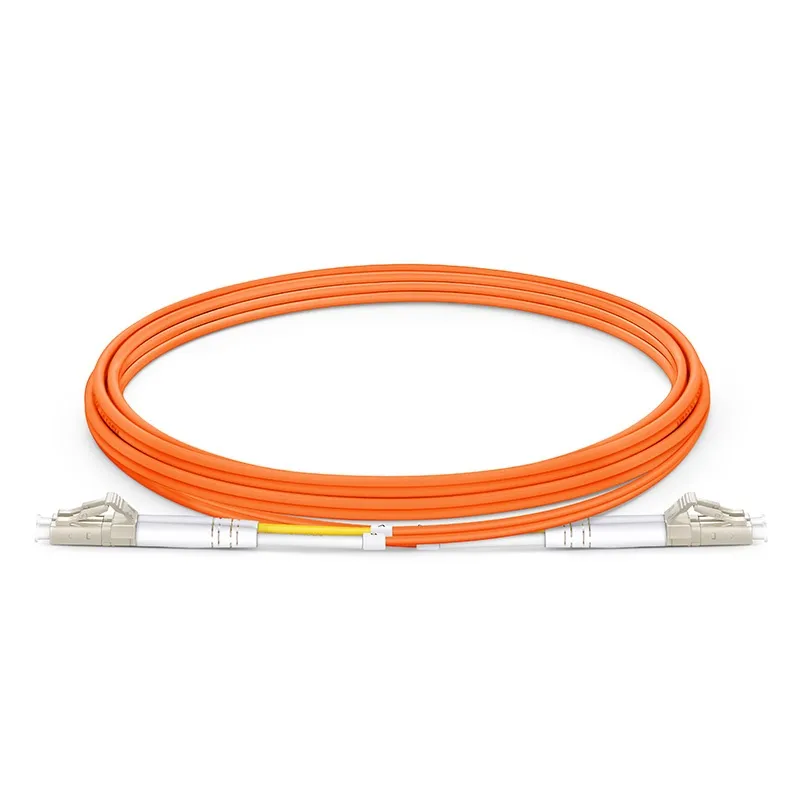

Дуплекс

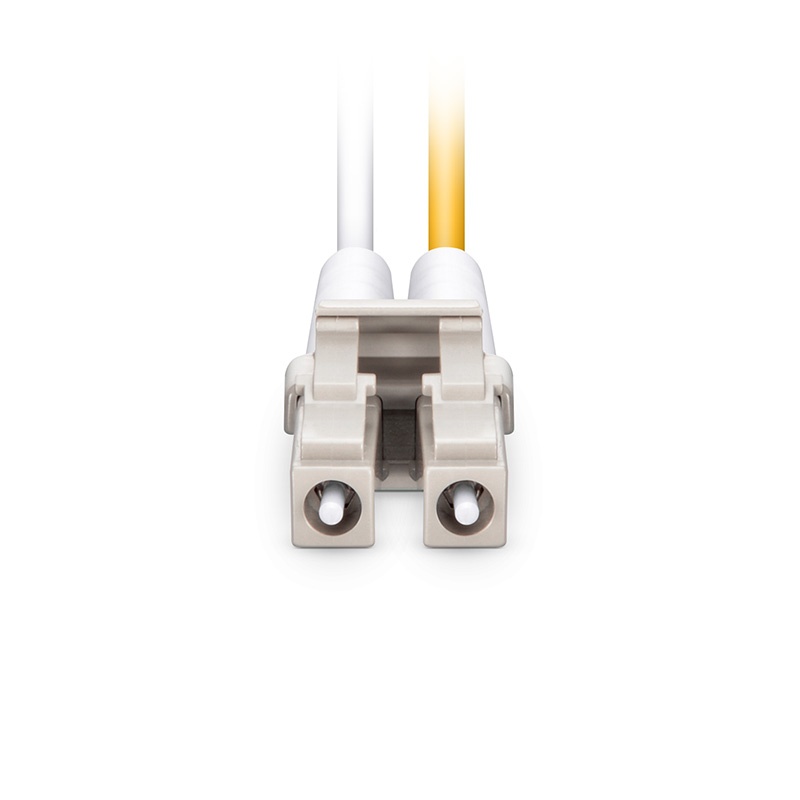

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第7张       Многомодовый оптоволоконный соединительный кабель OM1 / MMF第8张


Варианты куртки

• ЛСЗХ, ПВХ или ОФНП

Приложения

• 1G Ethernet и сети Fast Ethernet

• Волоконные соединения в средах LAN и центров обработки данных

• Патч-панели, коммутаторы и маршрутизаторы для оптоволоконной связи

• Междугородние оптоволоконные линии в телекоммуникациях

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第9张

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第10张

Многомодовый оптоволоконный соединительный кабель OM1 / MMF第11张

    Многомодовый оптоволоконный соединительный кабель OM1 / MMF第12张
