SC-SC APC Simplex/Duplex Single mode Fiber Patch Cords，Fiber Jumper Cable

SC-SC fiber patch cords (fiber jumpers) available in singlemode and multimode, low loss, custom length, ideal for ODF, FTTH, and fiber connectivity systems....

Inquiry

Product Attributes

Polish Type:APC/UPC

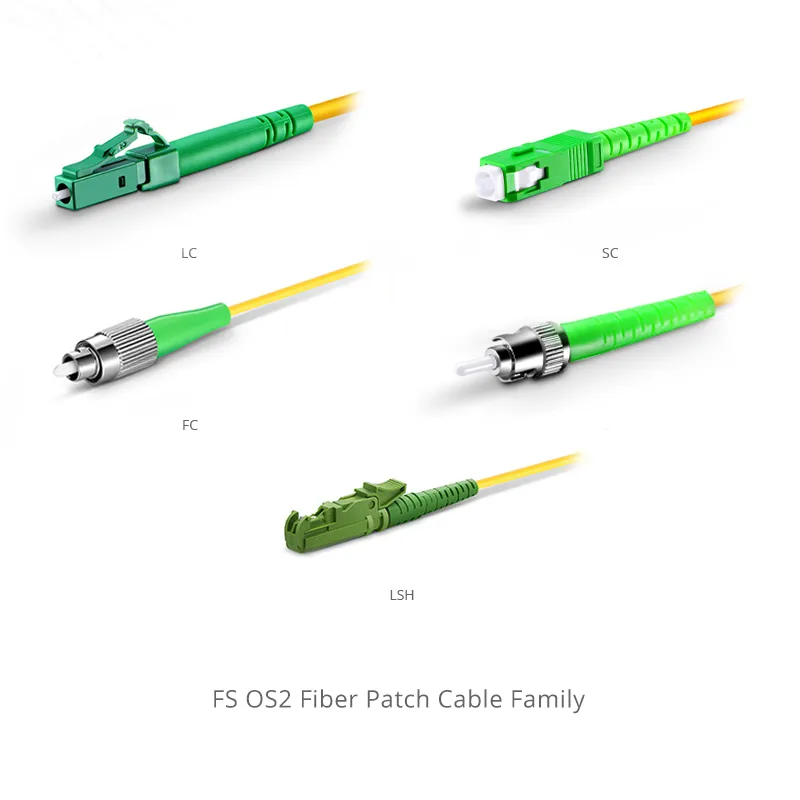

AdapterType:SC,LC,FC,ST,LSH,MU
PortType:Simplex,duplex
OuterJacket:LSZH/PVC
Fiber Type:G.657.A1/G.657.A2
ProductModel:SC-SC

Product Technical Parameters

Product Description

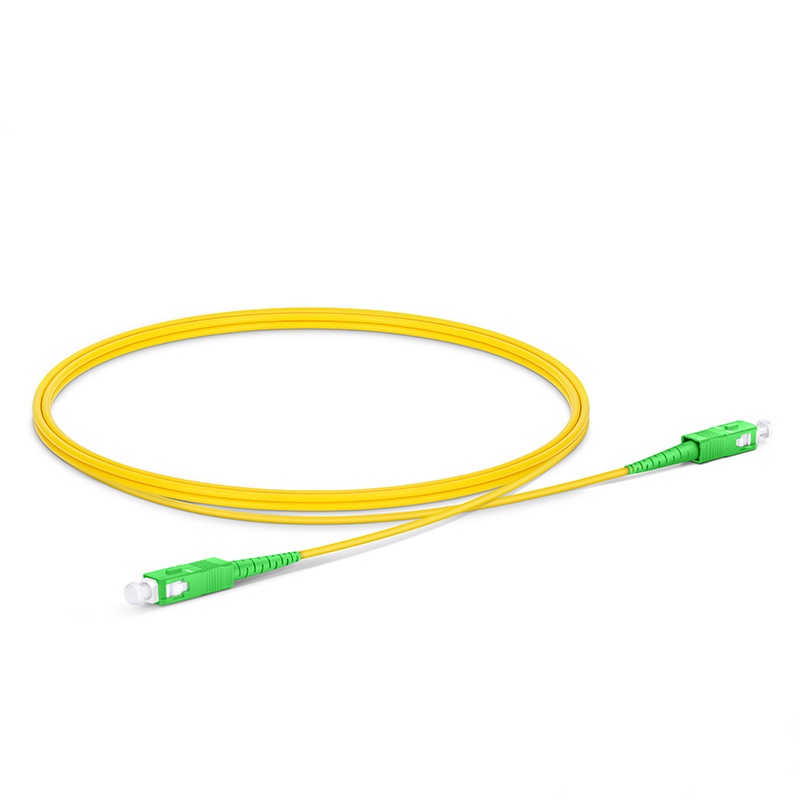

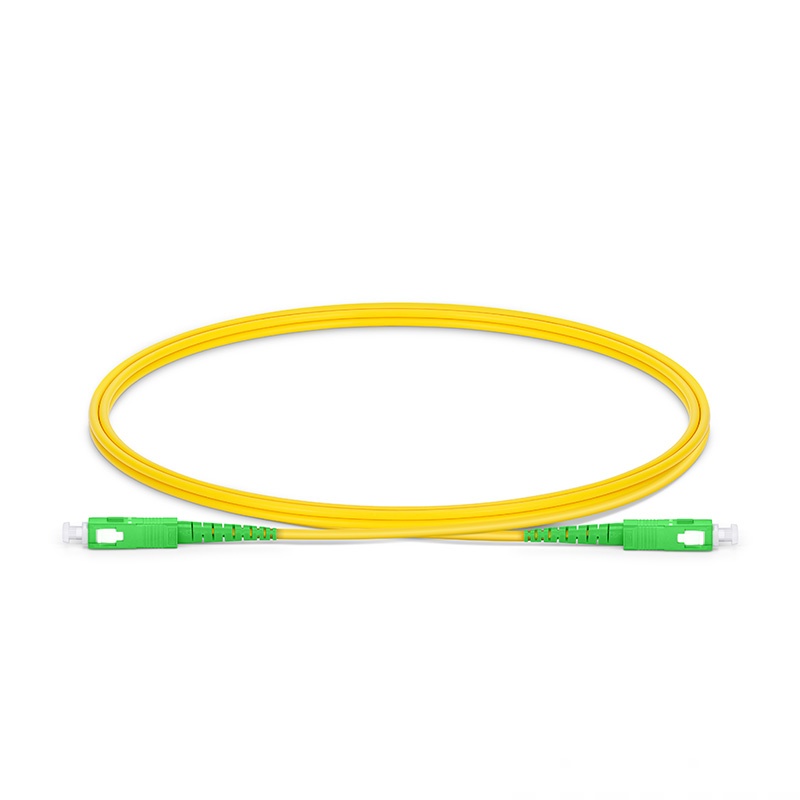

Single mode fiber patch cords ,SC APC - SC APC , Simplex /Duplex


The SC-SC fiber optic patch cord is used for connecting SC interface fiber equipment. It is available in both singlemode (G652D/G657A) and multimode (OM1~OM4) versions, providing stable and low-loss signal transmission in FTTH, LAN, and telecom applications.

Main Features

• SC-SC connectors with UPC or APC polish for stable connection.

• Available in singlemode and multimode fiber types.

• Low insertion loss and high return loss ensure excellent transmission.

• Flame-retardant PVC, LSZH, or OFNP jacket for various environments.

• Custom length and connector polish supported upon request.

Product Specifications

Fiber Types

• Singlemode: G652D, G657A

• Multimode: OM1, OM2, OM3, OM4

Connector Type

• SC-SC (UPC or APC polish)

Jacket Options

• PVC, LSZH, OFNP

Applications

• FTTH fiber access networks

• ODF and fiber patch panels

• LAN/WAN and CATV systems

• Equipment interconnection and fiber testing

Fiber Optic Equipment

Case

Angola Power-Line Corridor Communications Project Case Study|OPGW Supply as the Backbone + Outdoor Fiber Optic Cable Portfolio Support

Turkey：YRTFiber's Metropolitan Fiber Network Modernization in Turkey

Indonesia： YRTFiber's Metropolitan Area Network Upgrade in Indonesia

Zambia : High-Performance Outdoor Fiber Optic Cable Supply by yrtfiber

OVERVIEW Download

Opticlink have a total of 8pieces production lines, include FTTH drop cable, Central loose cable and stranded fiber cable production , modernized dust-free workshops, and high-performance processing equipment. From raw material procurement, to finished product processing, to product quality testing, to packaging and export, we have a full range of production lines. The following are some of the actual photos of the workshop

首4.jpg 首5.jpg 首3.jpg 首2.jpg 首1.jpg

Keywords: SC-SC, Fiber Patch Cord, Fiber Jumper, Singlemode, Multimode

No more

LC-LC APC Simplex/Duplex Single Mode (OS2), Riser (OFNR), 2.

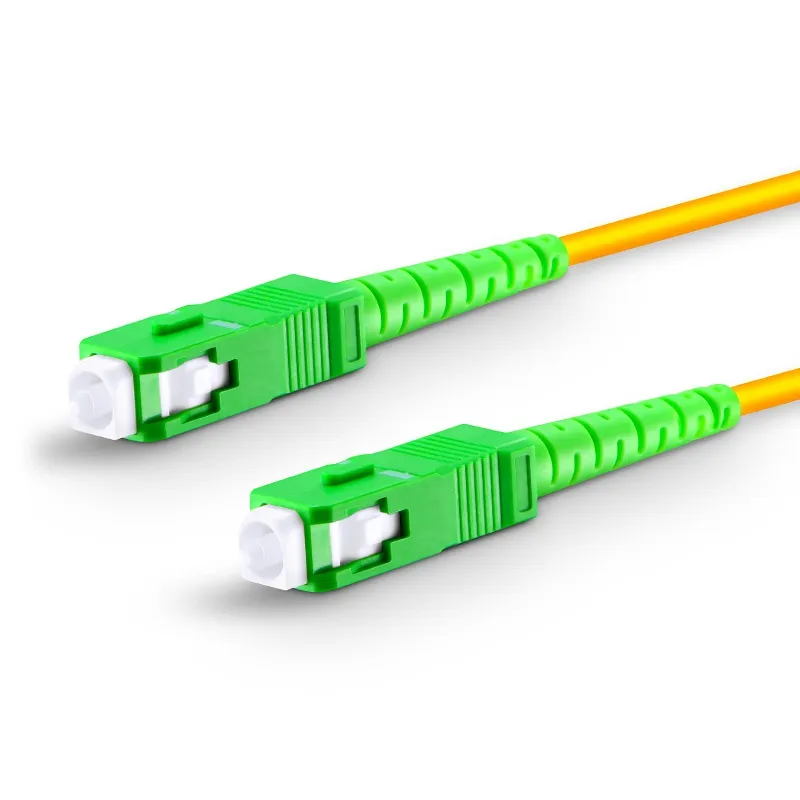

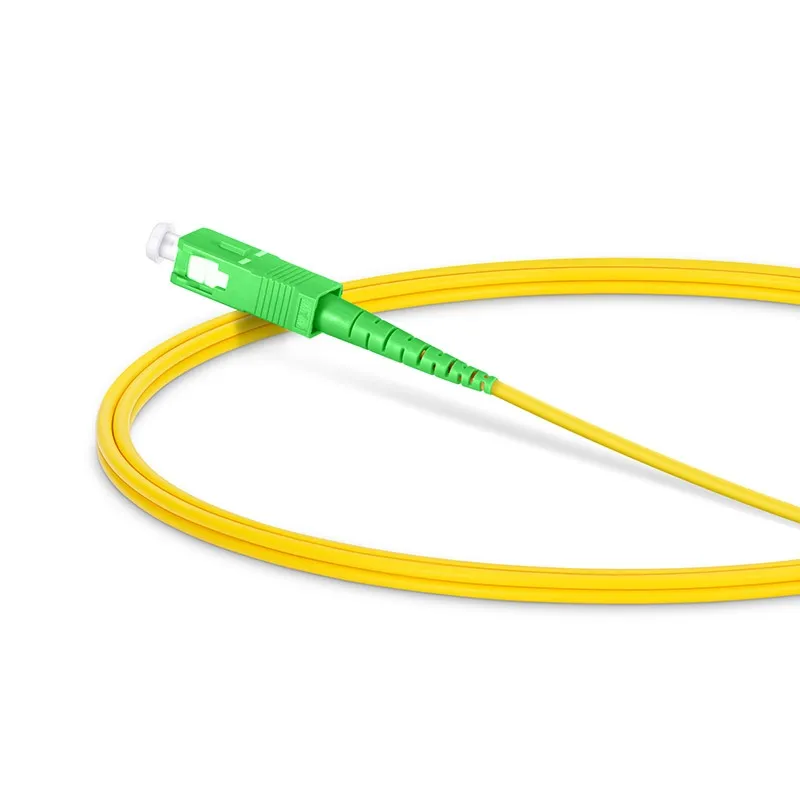

Connector A	SC APC Simplex	Connector B	SC APC Simplex
Fiber Count	1 Fiber	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125µm	Wavelength	1310/1550nm
Flame Rating	Riser (OFNR)	Cable Outside Diameter (OD)	1.2mm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength	20/40N (Long/Short Term)
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310nm	0.4dB/km	Attenuation at 1550nm	0.3dB/km
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-20 to 70℃ (-4 to 158℉)

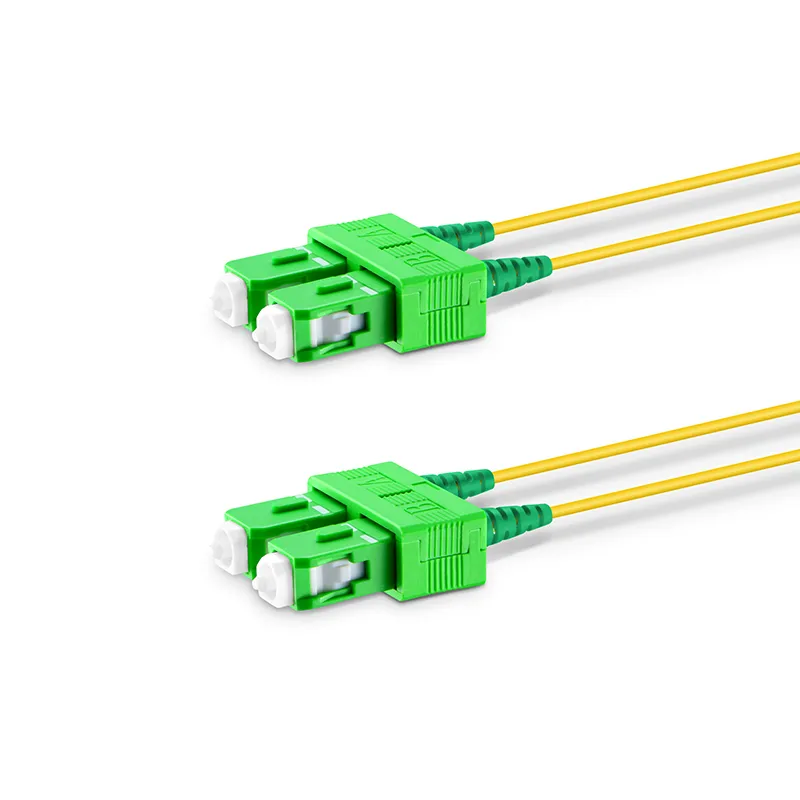

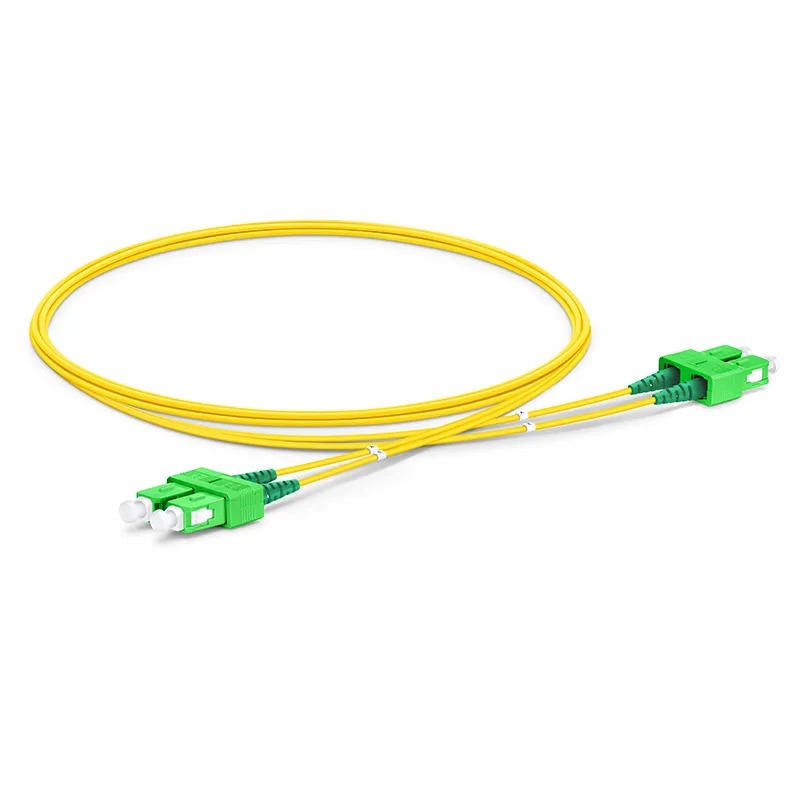

Connector A	SC APC Duplex	Connector B	SC APC Duplex
Fiber Count	2 Fibers	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Flame Rating	Riser (OFNR)	Cable Outside Diameter (OD)	1.2mm

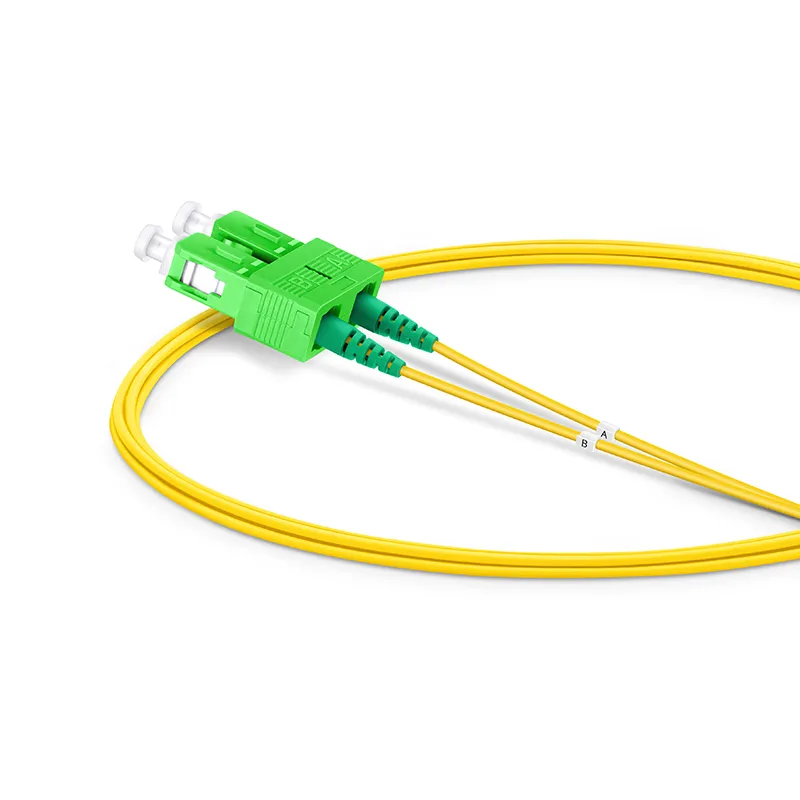

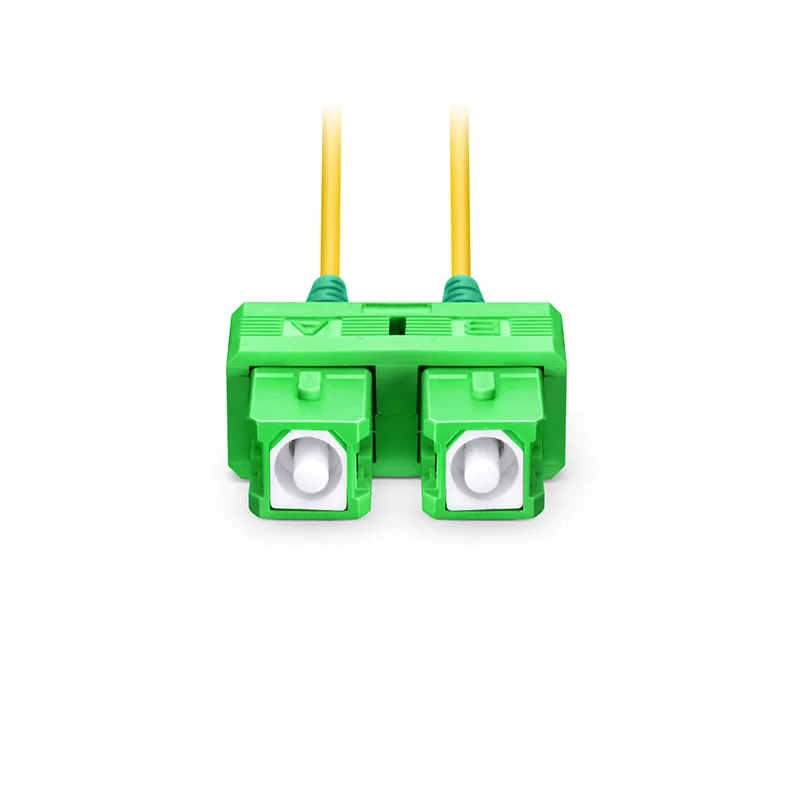

Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength	40/80N (Long/Short Term)
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310nm	0.4dB/km	Attenuation at 1550nm	0.3dB/km
Operating Temperature	-10 to 70°C (14 to 158°F)	Storage Temperature	-20 to 70°C (-4 to 158°F)
