MPO/MTP Fiber Patch Cords & Trunks | High-Density Multi-Fiber Connectivity

Our MPO/MTP multi-fiber patch cords and trunks are tailored for compact, high-density deployments such as data centers, spine-leaf fabrics, and high-speed telecom setups. Options include 8-, 12-, 16-, and 24-fiber assemblies in OM3, OM4, OM5 multimode and single-mode versions. Available builds feature pinned/unpinned connectors, polarity Methods A/B/C, breakout harnesses (LC/SC), ruggedized armored jackets, and cable fanouts. Each cord is fully tested for insertion/return loss and optimized for fast deployment.

Why Choose Our MPO/MTP Cords

High Fiber Density: Delivers efficient multi-fiber connectivity with minimal cable bulk.

Polarity and Gender Options: Supports all standard polarity methods and connector pin configurations to match diverse setups.

Broad Fiber Selection: Available in OM3/OM4/OM5 multimode or single-mode G.657 for varied network speeds and distance needs.

Durable Construction: Options for armored jackets or pull-socks for higher mechanical protection during installation and in field use.

Customization Ready: Print branding, cable length, breakout type, labeling, and packaging tailored to your project.

Product Configurations

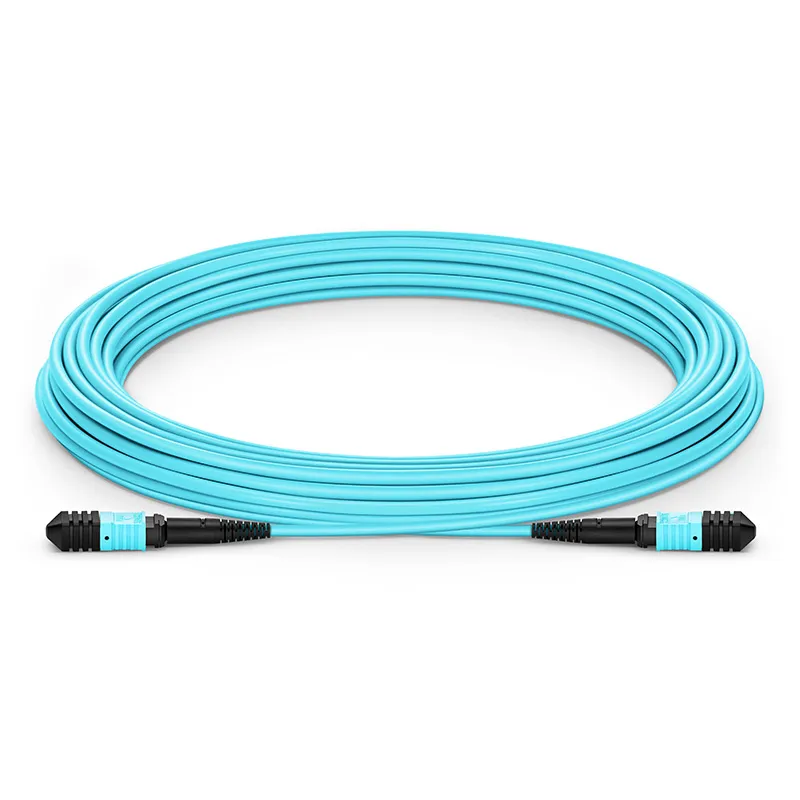

MPO/MTP Trunk Cables (8–24 Fibers)

High-bandwidth trunks with options for single-mode and multimode (OM3/OM4/OM5), selectable polarity, and connector gender (pinned/unpinned).

Use Cases: Spine-leaf fabrics, high-density patch fields, parallel optics links.

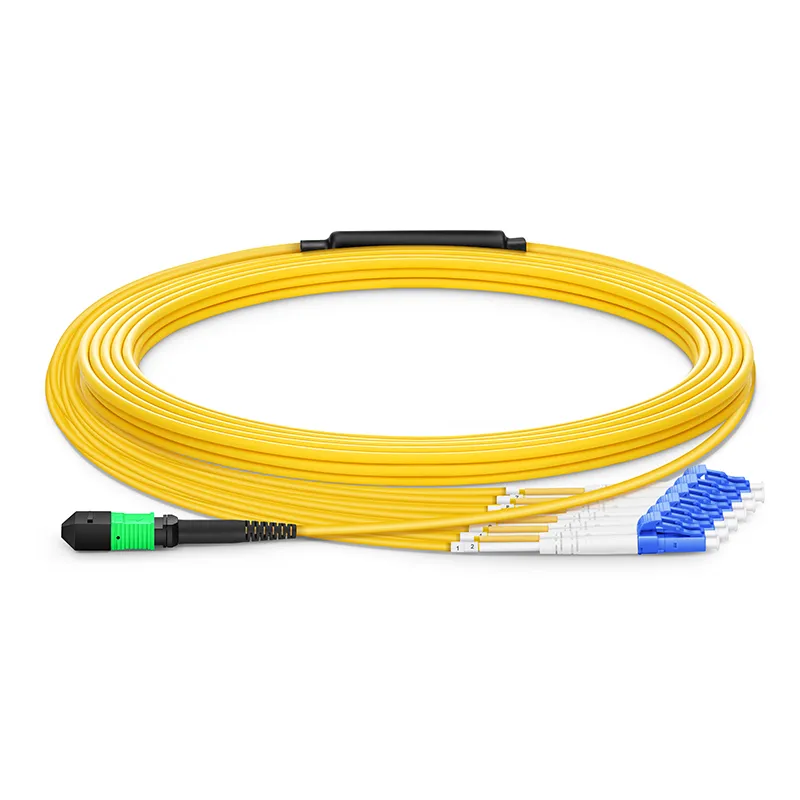

MPO to LC/SC Harnesses

Breakout harnesses that convert multi-fiber MPO connectors into LC or SC duplex connectors. Supports Method A/B/C polarity.

Use Cases: Module assemblies, device terminations, cassette patching.

Ruggedized & Armored Options

Integrated pull-socks or armored designs provide extra protection against crush, abrasion, and handling stress.

Use Cases: Long factory runs, installation in conduit, or high-traffic corridors.

Specifications Overview

Fiber Types: Multimode OM3/OM4/OM5; Single-mode G.657A1/A2 for special applications.

Connector Options: MPO/MTP male (pinned) or female (unpinned) ends; LC or SC breakout connectors.

Polarity Methods: Method A, B, and C supported for correct signal orientation.

Insertion Loss (typical): MPO Elite ≤ 0.35 dB per mated pair; harnesses “+0.3 dB” added for LC/SC leg.

Return Loss: Multimode ≥ 35 dB; Single-mode UPC ≥ 50 dB; APC ≥ 60 dB.

Cable Jacket: LSZH, PVC, OFNR, or OFNP for plenum-rated installations.

Durability: Meets standard bend radius and pull tolerance; armored versions rated for higher mechanical stress.

Tested: All assemblies 100% IL/RL tested; serial-numbered test reports available per order.

Selection Guide

Data Center Fabric: Use MPO trunks with Method A polarity to streamline module connections.

Mixed Panel Environments: MPO to LC/SC harnesses ensure clean transitions to existing patching infrastructure.

Harsh Installation Settings: Choose ruggedized or armored versions for protection during installation or where cables face wear.

Multi-Bit Optics Support: Single-mode MPO option suits emerging 100G-400G PSM/SWDM deployments.

Customization & Services

Customize fiber count, connector gender, polarity, jacket type, cable length, labeling, reel/coiled packaging, pulling aids, and branding for project needs.

Fast turnarounds available—standard models in stock and custom builds expedited, including staged shipping options for rollout coordination.

Engineering support offered for link-budget design, polarity matching, high-speed transition planning, and voucher labels for install ease.

Ordering Information

When ordering, please specify: Fiber type (OM3/OM4/OM5 or single-mode) + Fiber count (8/12/16/24) + Connector gender (pinned/unpinned) + Polarity Method (A/B/C) + Breakout type (trunk/harness with LC/SC) + Jacket material (LSZH/PVC/OFNR/OFNP) + Length + Any custom labeling or packaging needs.

Frequently Asked Questions (FAQ)

Q1: How do I choose the correct polarity method?

Method A preserves fiber order in straight trunk cabling; Method B reverses fiber order typical in legacy systems; Method C provides a custom crossover strategy. Let us know your patch panel layout or cassette orientation to match the correct method.

Q2: Sample available?

YES!

Q3: Are MPO cables tested individually?

Yes. Each MPO assembly is tested for insertion and return loss. We can tie test results to serial numbers or labels for traceability during installation or certification.

Q4: Can I get ruggedized MPO assemblies?

Certainly. We offer armored MPO trunks and pull-sock terminated cables that protect against mechanical damage and ease rugged installation handling.

Q5: Are indoor fire-rated jackets available?

Yes. You can choose from LSZH (low smoke), OFNR (riser), or OFNP (plenum) jackets depending on your installation environment and fire code requirements.

Q6: What’s your turnaround time for custom MPO assemblies?

Stock MPO trunks and harnesses ship quickly. Custom assemblies largely complete within 1–2 weeks, with options for staggered delivery aligned to your installation timeline.

Request a Quote

Request Your Quote or contact our sales engineers for help selecting polarity, connector types, and full BOM support for MPO-based networks.
