ABS Box PLC Splitter | 1×2–1×64, UPC/APC, Low Loss, OEM/ODM

ABS box PLC (Planar Lightwave Circuit) splitters provide precise optical power distribution in a rugged, field-ready enclosure. Designed for GPON, EPON, FTTH and CATV systems, the ABS housing protects the splitter and fiber terminations during transportation and installation, while keeping the footprint compact for wall boxes, pole-mounted closures and cabinets.

Why Choose Our ABS Box PLC Splitters

Field-Proof Housing: Impact-resistant ABS enclosure safeguards the PLC chip and fibers against handling stress and vibration.

Wide Split Range: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 and 2×N options to match networks of any size.

Connector Versatility: SC/UPC or SC/APC terminations for low insertion loss and high return loss in PON links.

Stable Optical Performance: Low PDL, tight uniformity, and broad spectrum operation from 1260 to 1650 nm.

Quality Assured: Telcordia-grade reliability with 100% optical testing before shipment; test data available.

OEM/ODM Ready: Custom labeling, packaging, pigtail length, fiber type and logo printing for carrier or project standards.

Product Configurations

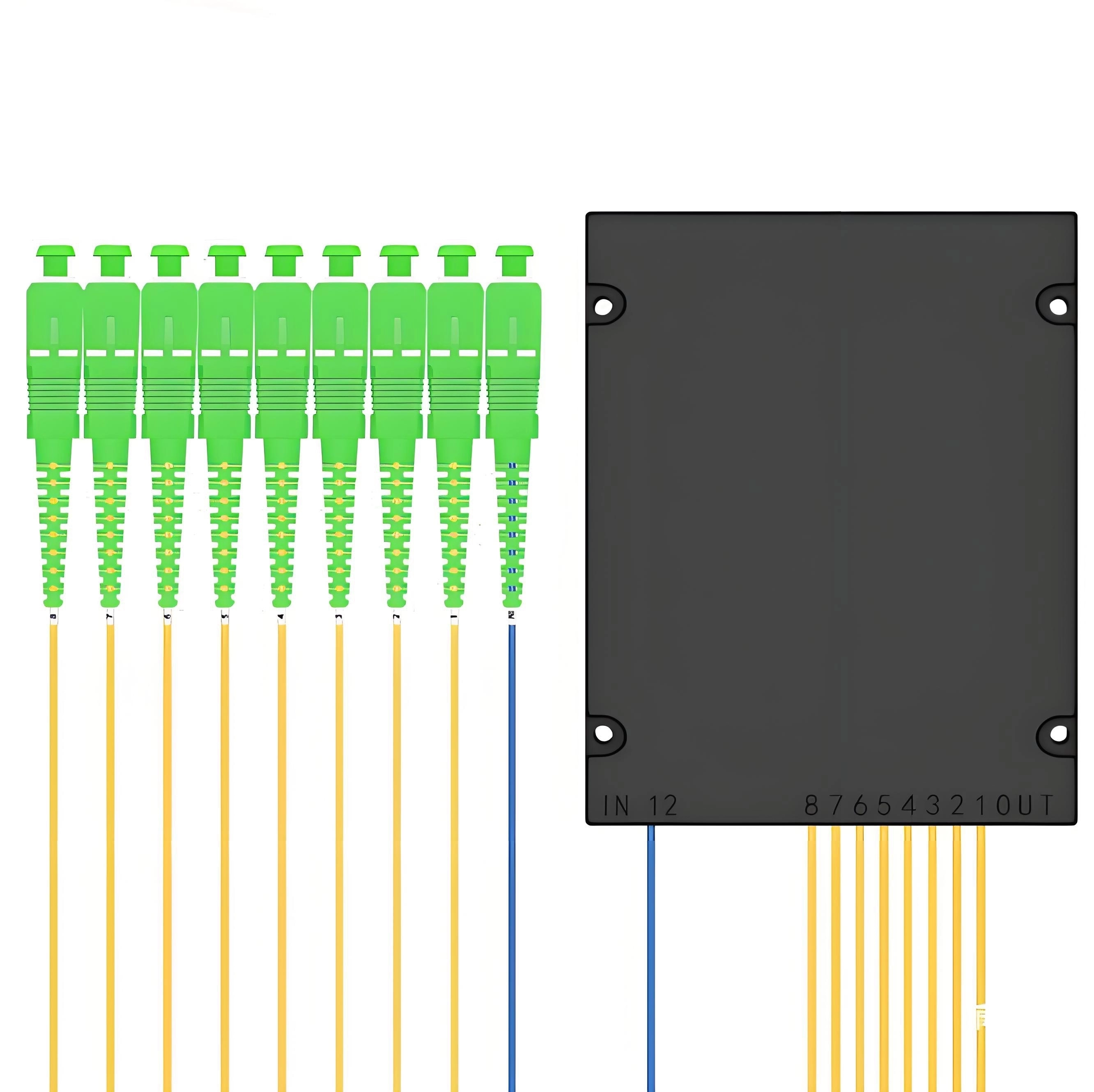

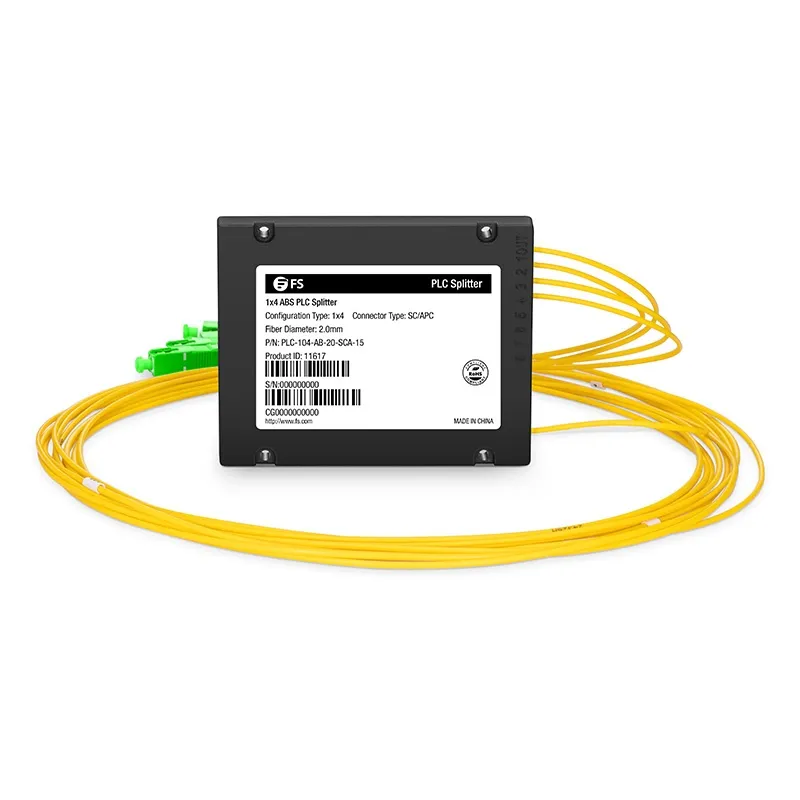

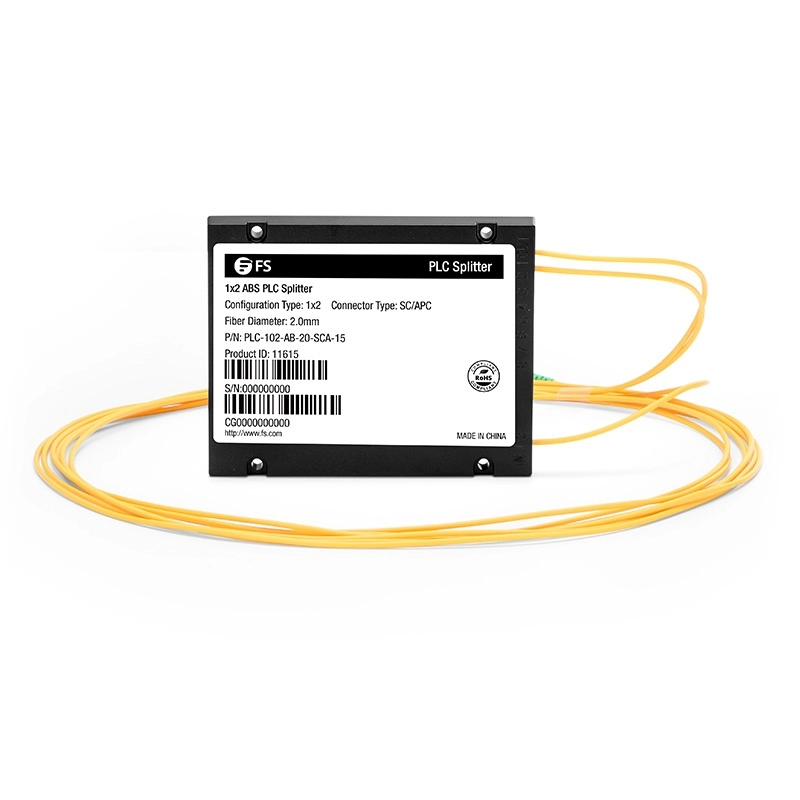

ABS Box 1×N Splitters: Compact modules with pre-terminated pigtails or adapters for rapid field deployment.

ABS Box 2×N Splitters: Dual-input designs for redundancy, monitoring or bidirectional applications.

Bare-in/Connector-out Options: Flexible I/O combinations to fit splice trays, wall boxes or outdoor closures.

Specifications Overview

Split Ratios: 1×2 to 1×64; 2×N variants available.

Connectors: SC/UPC or SC/APC as standard; LC/FC on request.

Operating Wavelength: 1260–1650 nm with flat spectral response.

Typical Uniformity: Typically under 1 dB across output ports.

Insertion/Return Loss: Low IL per split spec; high RL with APC for PON stability.

Temperature Range: −40 °C to +85 °C operating; extended ranges on request.

Housing & Leads: Impact-resistant ABS shell; customizable pigtail fiber, length, and jacket.

Compliance & Testing: Telcordia GR-1209/1221-style testing; 100% IL/RL verification with records.

Applications

FTTH GPON/EPON distribution from OLT cabinets to feeder and drop networks.

CATV and campus optical splitting in indoor/outdoor boxes and cabinets.

Central office, MDU/MTH enclosures, pole/wall-mount closures and street cabinets.

Selection Guide

Short-Run Indoor/Outdoor Boxes: Choose ABS 1×8 or 1×16 for compact feeder distribution.

High-Density Cabinets: Use ABS 1×32 or 1×64 to maximize port count in limited space.

Low Reflection PON Links: Prefer SC/APC connectors for better return loss performance.

Monitoring/Redundancy: Select 2×N splitters to support bidirectional or protected paths.

Customization & Services

Customization: Split ratio, connector type/polish, pigtail length and jacket, labeling, logo and packaging, plus barcode/QR traceability.

Engineering Support: Optical budget checks, port plan suggestions, cabinet/box layout tips and accessory lists.

Supply Readiness: Common specs in stock; expedited builds for custom SKUs; staged deliveries for phased rollouts.

Ordering Information

When requesting a quote, please specify: Split type (1×N or 2×N) and ratio, connector type and polish (SC/UPC or SC/APC), pigtail length and fiber/jacket, housing details (adapter or pigtail style), packaging/labeling and any OEM/ODM requirements.

Frequently Asked Questions (FAQ)

Q1: samples available?

Yes

Q2: What is your warranty and return policy?

We provide a two-year product warranty. Quality-related returns are accepted within three months, and one year of free maintenance is included.

Q3: How fast will you respond and ship? We reply to all inquiries within 24 hours. Standard models ship quickly; custom builds are fast-tracked with order and logistics tracking throughout production and delivery.

Q4: Can you customize connectors, lengths and labeling? Absolutely—OEM/ODM covers connector type, pigtail length, jacket/spec labeling, branding and packaging to match project or carrier standards.

Q5: Are test reports provided? Yes, each unit is 100% IL/RL tested. We can attach serial-linked reports for acceptance or certification.

Q6: What if I encounter issues after installation? Our after-sales team will diagnose and provide a prompt solution. We remain available for support throughout the warranty period.

Request a Quote

Request Your Quote or contact our engineers to finalize the split ratio, connector, and enclosure details for your deployment.
